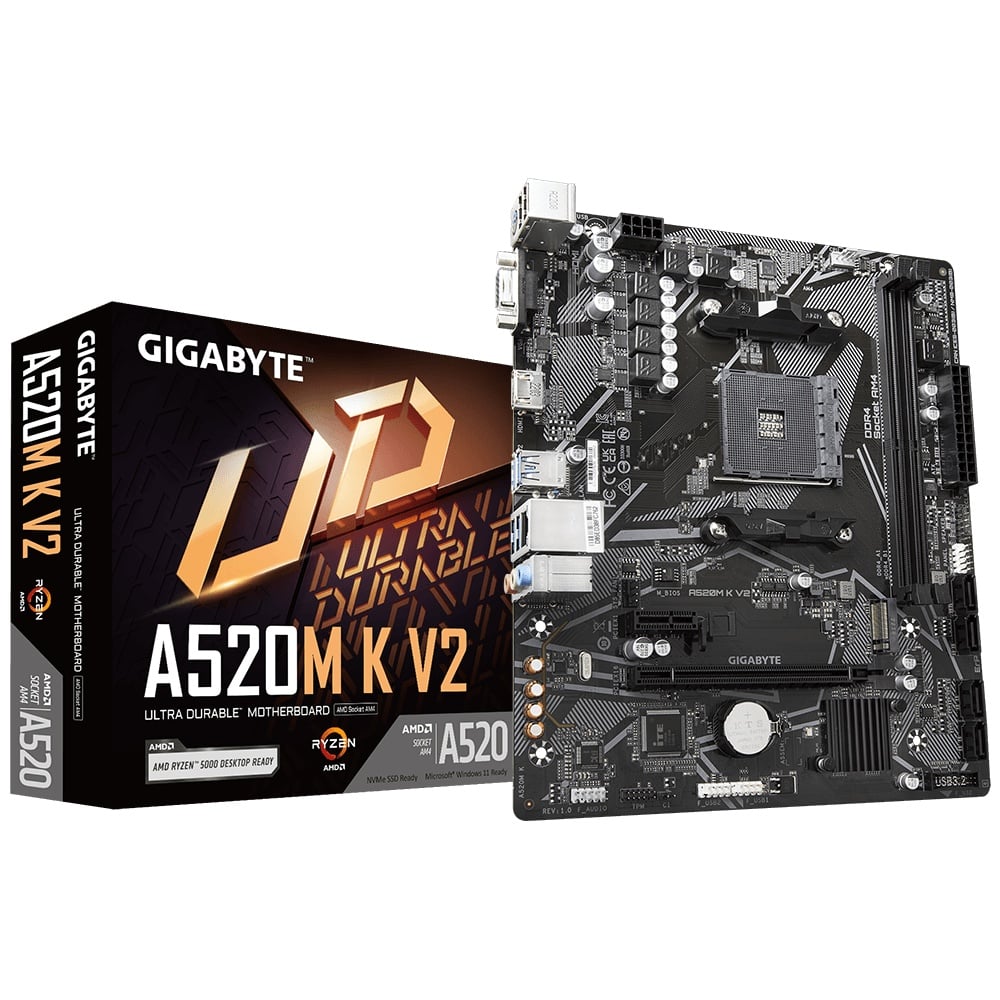

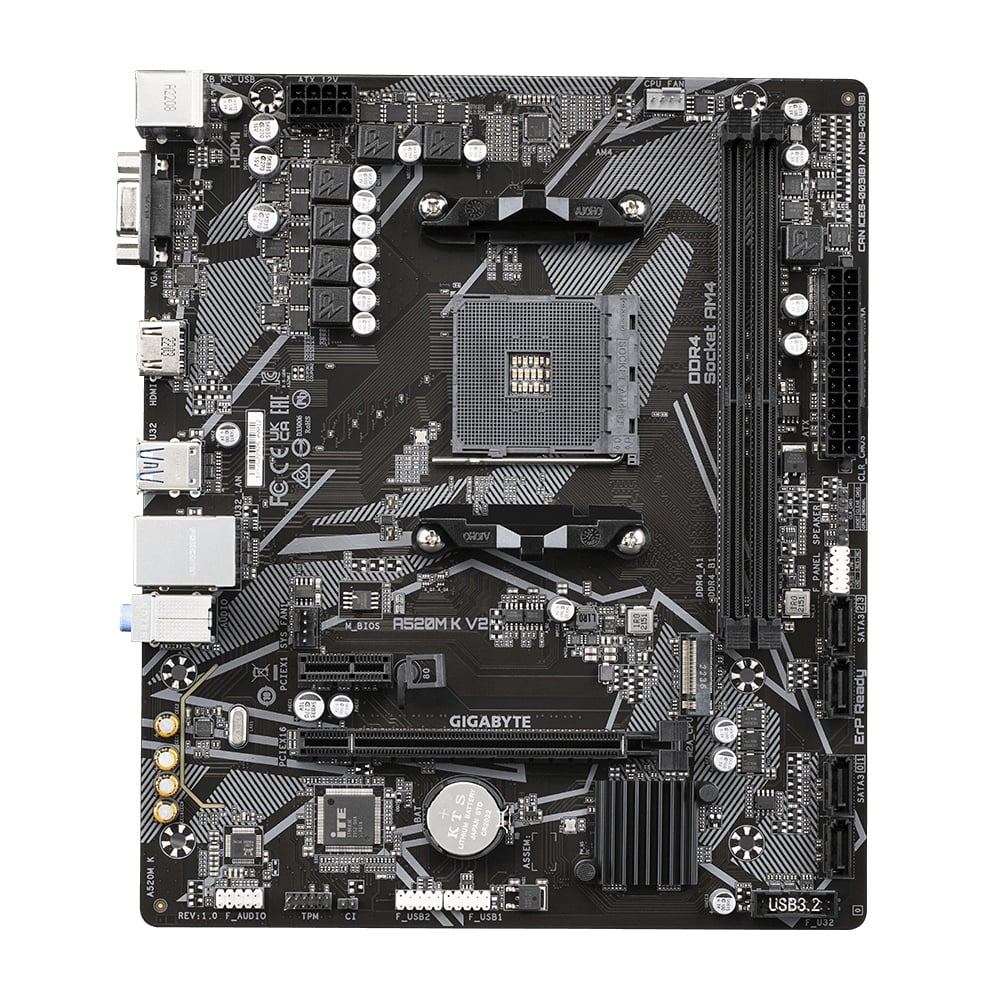

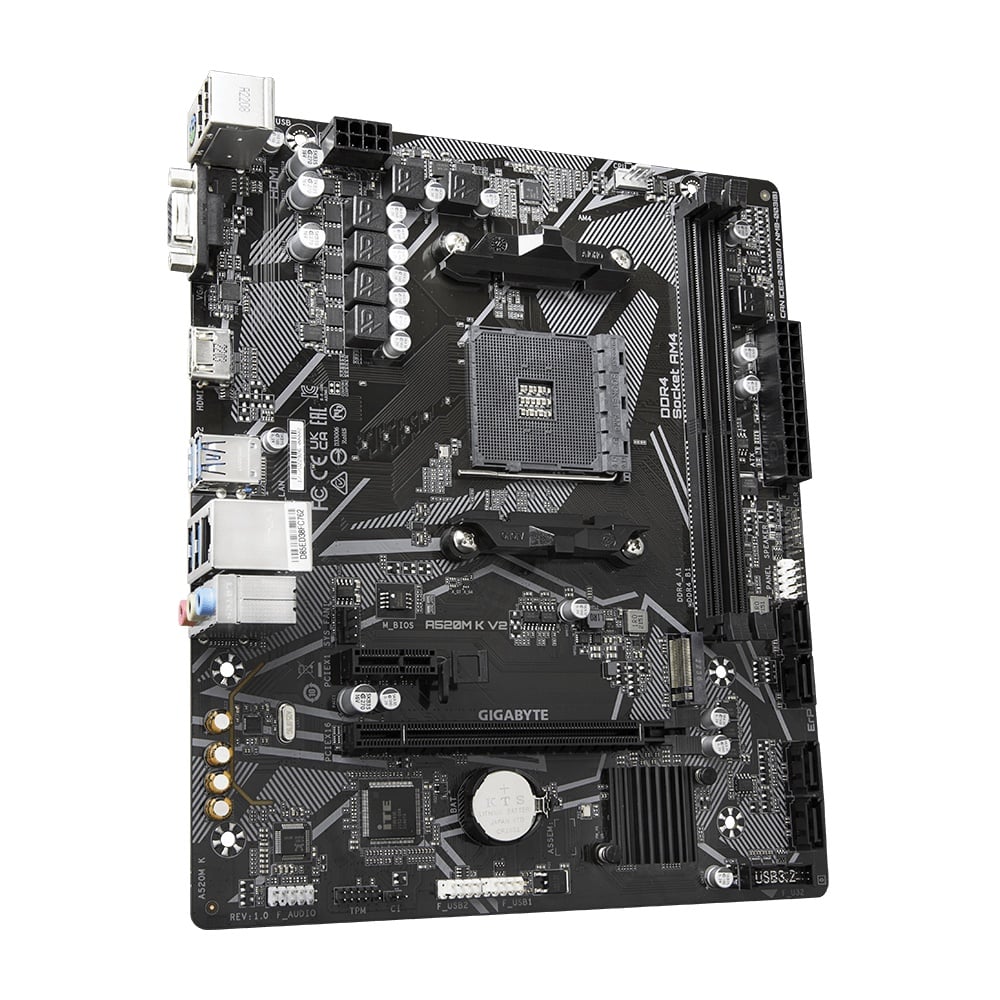

Placa de baza Gigabyte A520M K V2, Socket AM4, DDR4, Micro-ATX
282,99 RON
Costurile de livrare nu sunt incluse
Descriere

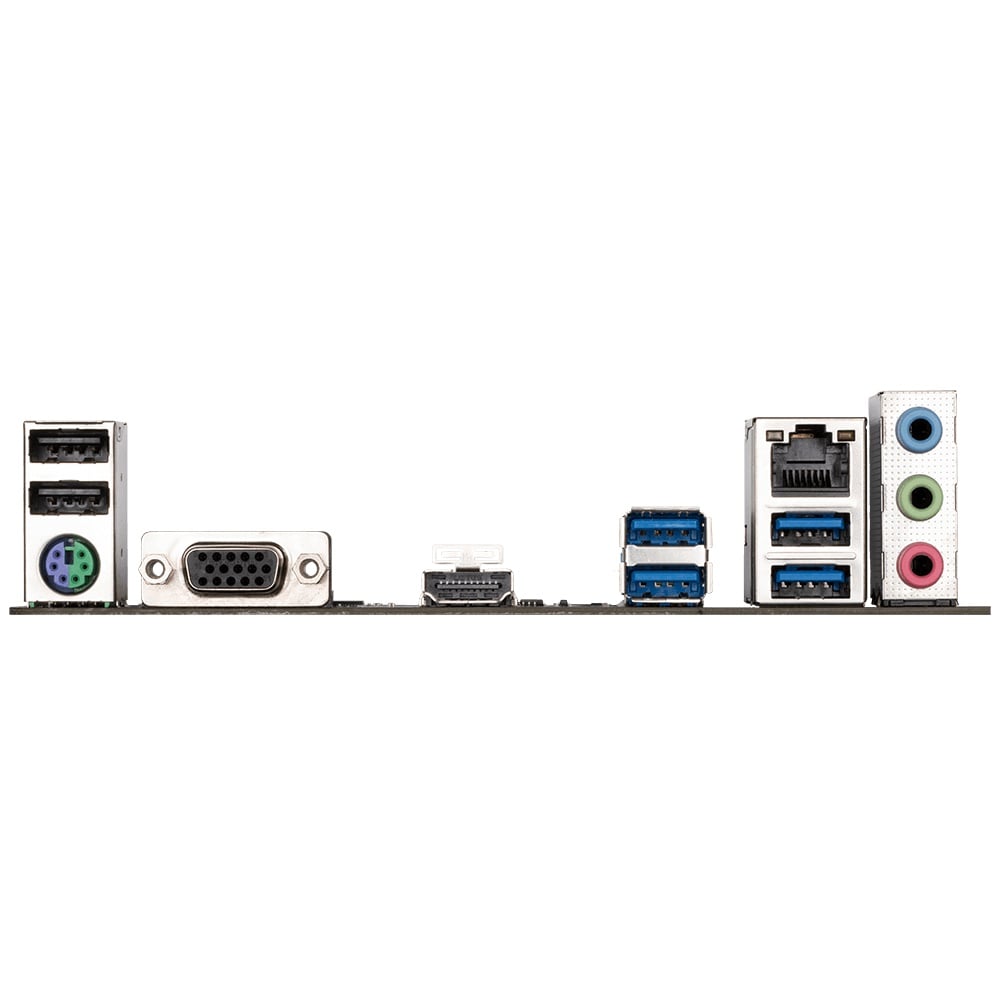

Placa de baza Gigabyte A520M K V2 AM4, 2x DDR4, 1x HDMI, 1x D-Sub, 1x PCIe x16, 1x PCIe x1, 1x M.2, 4x SATA 6Gbps, LAN 1 Gbps, mATX
Detalii
SKU
A520M K V2
Categorii
Brand
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
Clear CMOS jumper
Yes
Number of M.2 (M) slots
1
Motherboard form factor
micro ATX
PC health monitoring
Fan, Temperature, Voltage
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
TPM connector
Yes
12V power connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
2
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR4-SDRAM
Supported memory clock speeds
2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100 MHz
Supported memory clock speed (max)
5100 MHz
ECC сompatibility
ECC & Non-ECC
Ethernet interface type
Gigabit Ethernet
Batteries included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM4
Supported processor sockets
Socket AM4
Compatible processor series
AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
Supported storage drive types
HDD & SSD
Number of storage drives supported
5
MB-Format
micro-ATX
RAM-Slots
2
MB-Socket
AM4
PCI-Ex16
1
USB3
4-8
PCI-Ex1
1
PS/2 ports quantity
1
Chassis intrusion connector
Yes
PCI Express x1 slots
1
PCI Express x16 slots
1
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
HDCP
Yes
Headphone outputs
3
VGA (D-Sub) ports quantity
1
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Cables included
SATA
Width
233 mm
Height
35 mm
Package width
265 mm
Package height
52 mm
Depth
198 mm
Package weight
675 g
Package depth
235 mm
Country of origin
China
Bundled software
Norton Internet Security
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Component for
PC
Warranty period
3 year(s)
RAID support
Yes
RAID levels
0, 1, 10
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Maximum internal memory
64 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Number of battery cells
1
Battery weight
3 g
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
AMD A520
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB connector type
USB Type-A
Supported storage drive interfaces
M.2, SATA III
Wi-Fi
No
