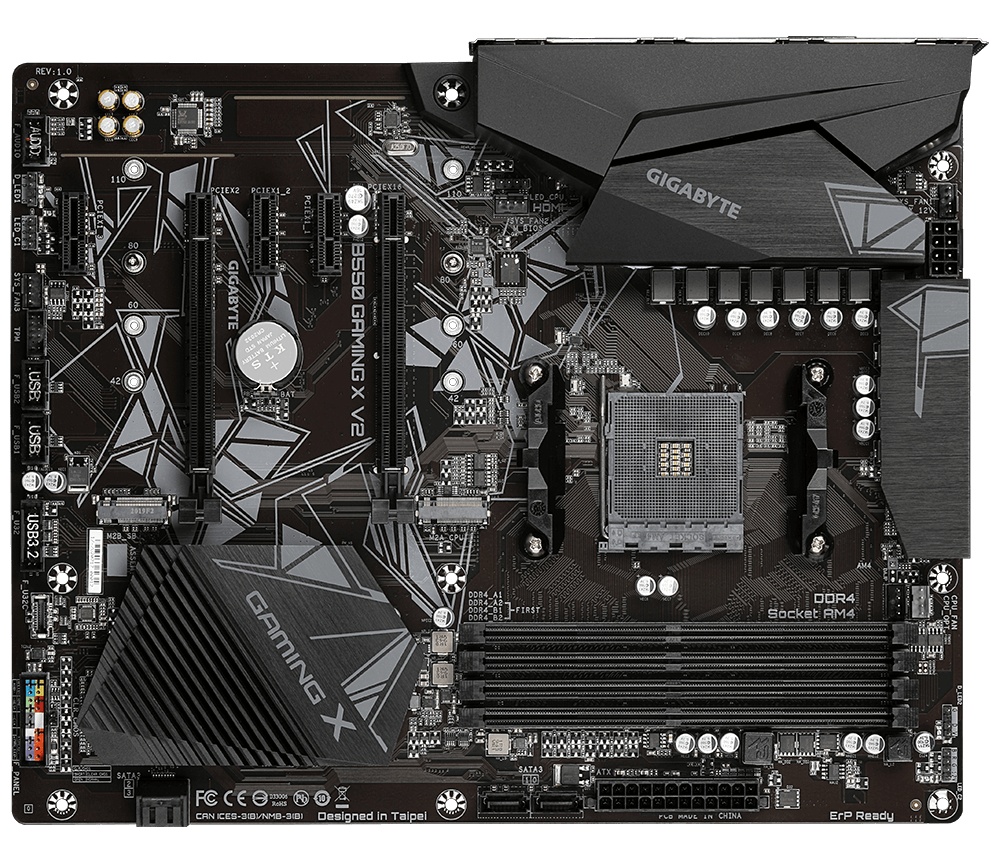

  • Placa de baza Gigabyte B550 Gaming X V2, Socket AM4, DDR4, ATX - Img 1

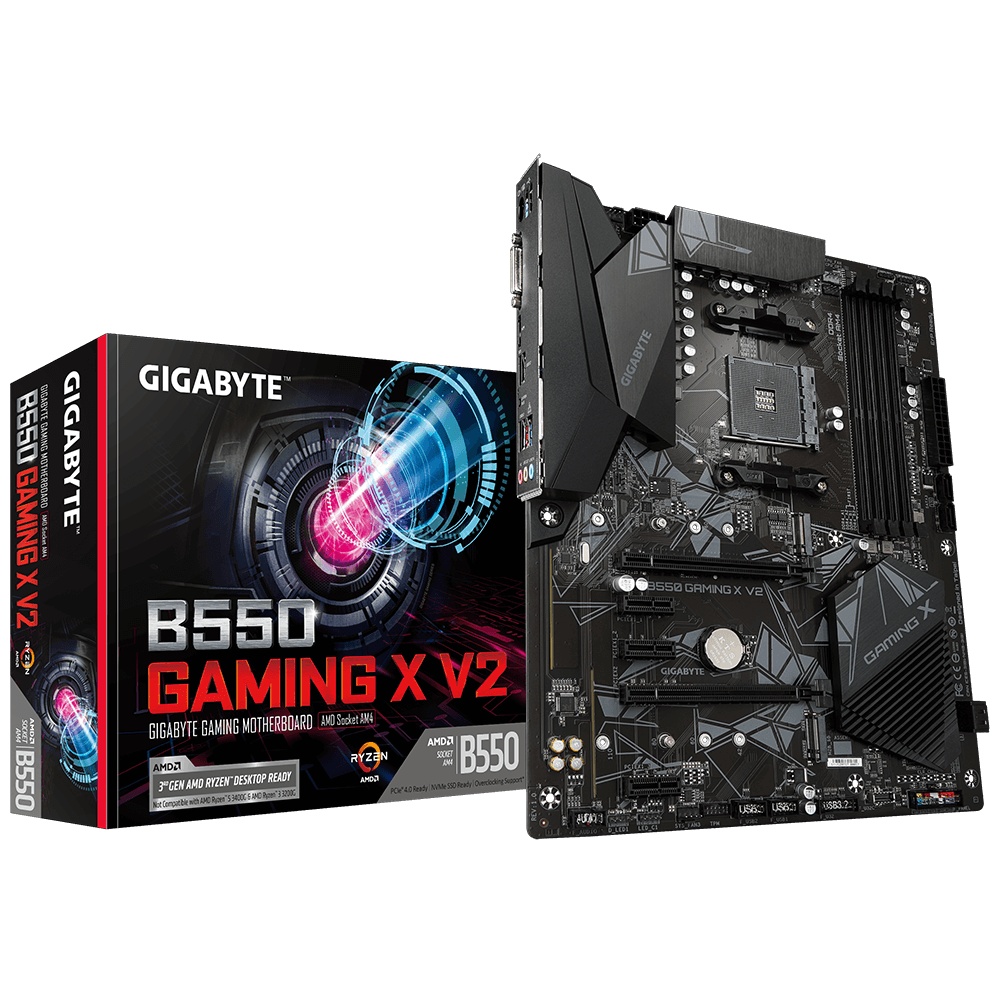

  • Placa de baza Gigabyte B550 Gaming X V2, Socket AM4, DDR4, ATX - Img 2

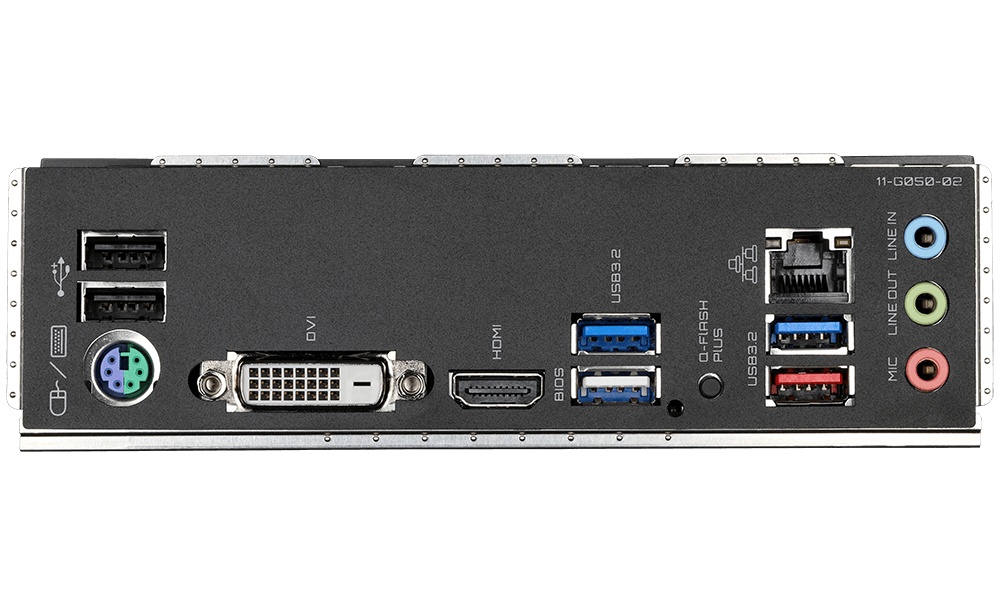

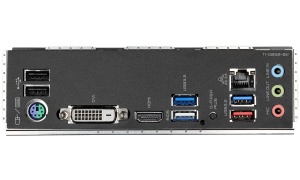

  • Placa de baza Gigabyte B550 Gaming X V2, Socket AM4, DDR4, ATX - Img 3

Placa de baza Gigabyte B550 Gaming X V2, Socket AM4, DDR4, ATX

735,99 RON
Costurile de livrare nu sunt incluse
Cod produs - SKU B550 GAMING X V2
Adauga la Favorite

Descriere

Placa de baza Gigabyte B550 GAMING X V2 Socket AM4 AMD B550 Gaming Motherboard with 10+3 Phases Digital Twin Power Design, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2, GIGABYTE Gaming LAN with Bandwidth Management, Front USB Type-C™, RGB FUSION 2.0, Q-Flash Plus Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs Ultra Durable™ PCIe 4.0 Ready x16 Slot Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management Front USB 3.2 Gen1 Type-C™ and HDMI & DVI-D for Multiple Display High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality RGB FUSION 2.0 support Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Anti-Sulfur Resistors Design https://www.gigabyte.com/Motherboard/B550-Gaming-X-V2-rev-10#kf

Detalii

SKU
B550 GAMING X V2
Categorii
Placi de baza
Brand
GIGABYTE
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
Clear CMOS jumper
Yes
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
1st M.2 largest key size
22110
1st M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
3.0
PCI Express x16 (Gen 3.x) slots
2
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
Number of CPU fan connectors
1
TPM connector
Yes
Number of water pump connectors
4
RGB LED pin header
Yes
Number of RGB LED pin headers
5
12V power connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of EPS power connectors (8-pin)
1
Number of chassis fan connectors
3
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR4-SDRAM
Maximum internal memory per slot
32 GB
Supported memory clock speeds
4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Supported memory clock speed (max)
4733 MHz
ECC сompatibility
ECC & Non-ECC
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Batteries included
Yes
Screws included
Yes
DVI-D ports quantity
1
Processor socket
Socket AM4
Supported processor sockets
Socket AM4
Compatible processor series
AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
6
PCI Express x1 (Gen 3.x) slots
3
S/PDIF out connector
No
Line-in
Yes
PS/2 ports quantity
1
Maximum number of SMP processors
1
Number of SATA II connectors
0
Number of SATA connectors
0
mSATA ports quantity
0
Maximum internal memory supported by processor
128 GB
Total number of SATA connectors
4
PCI Express x1 slots
3
PCI Express x16 slots
2
Power fan connector
Yes
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 16GB, 32GB
Number of Parallel ATA connectors
0
eSATA ports quantity
0
Firewire (IEEE 1394) ports
0
Graphics card family
AMD
Supported DIMM module capacities
32GB
Supported processor sockets (cooler)
Socket AM4
Maximum graphics card memory
16 MB
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
HDCP
Yes
Headphone outputs
1
VGA (D-Sub) ports quantity
0
DVI port
Yes
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Product colour
Brown
Width
30.5 mm
Height
35 mm
Package width
335 mm
Package height
80 mm
Weight
11.2 kg
Depth
24.4 mm
Package weight
17.1 kg
Package depth
270 mm
Country of origin
China
Bundled software
Norton Internet Security (OEM version) LAN bandwidth management software
PCI
0
Serial-or-Paralel
No/No
Cooling type
Passive
Component for
PC
Warranty period
3 year(s)
Harmonized System (HS) code
84733020
CPU încorporat
No
RAID support
Yes
RAID levels
0, 1, 10
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Maximum internal memory
128 GB
On-board graphics card
No
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Number of battery cells
1
Battery weight
3 g
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
AMD B550
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Audio Chip
Realtek ALC897
USB connector type
USB Type-A
Supported storage drive interfaces
M.2, SATA III
Wi-Fi
No
