NOU

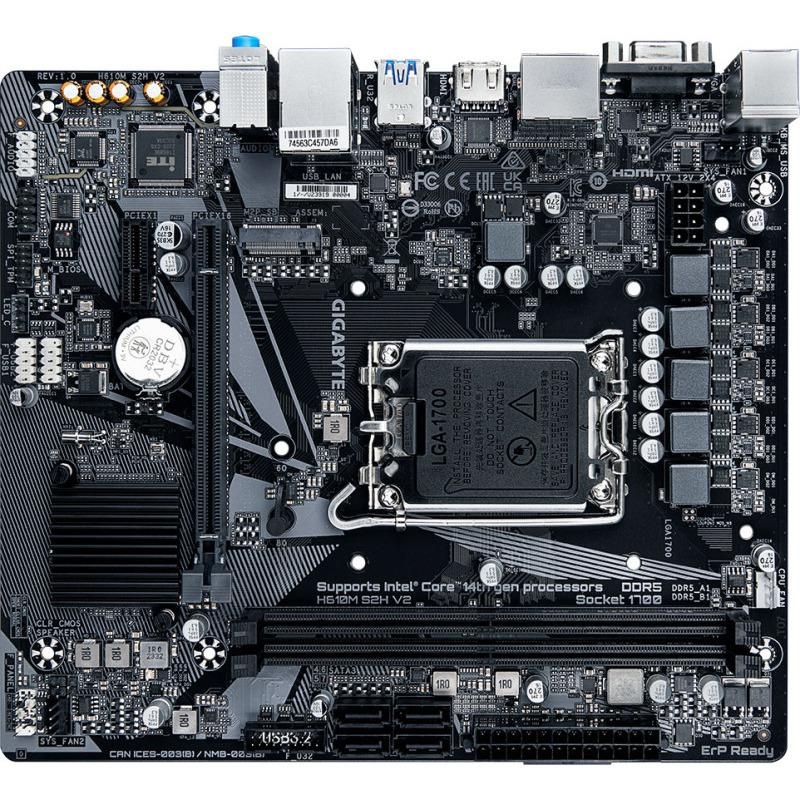

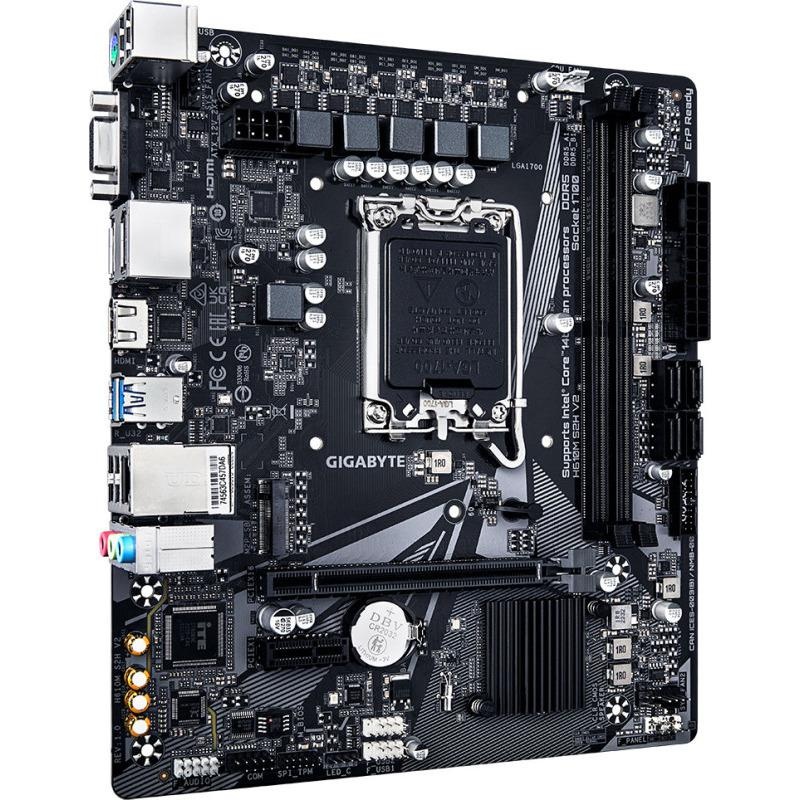

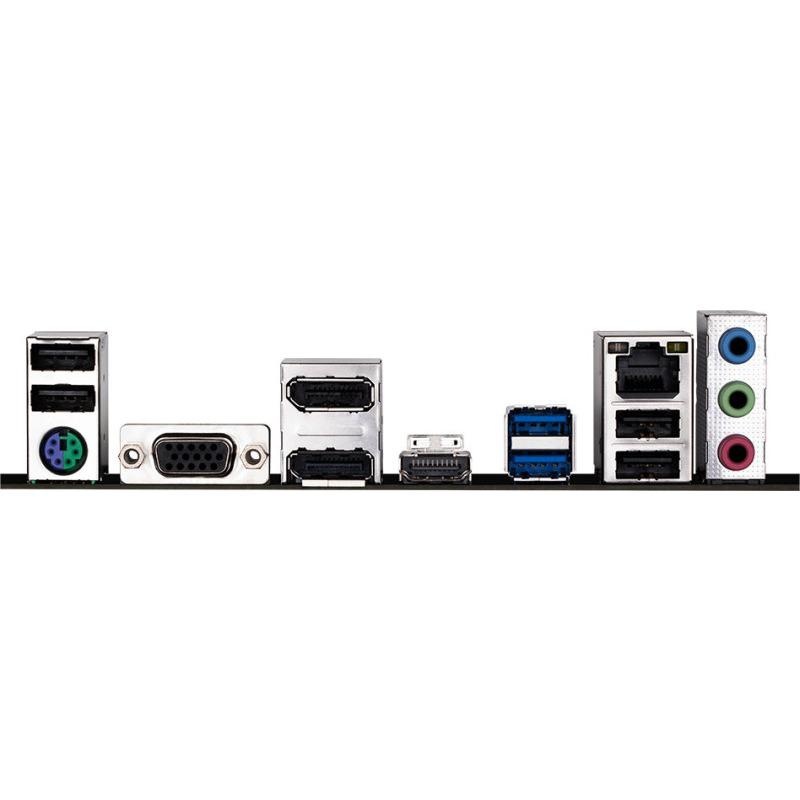

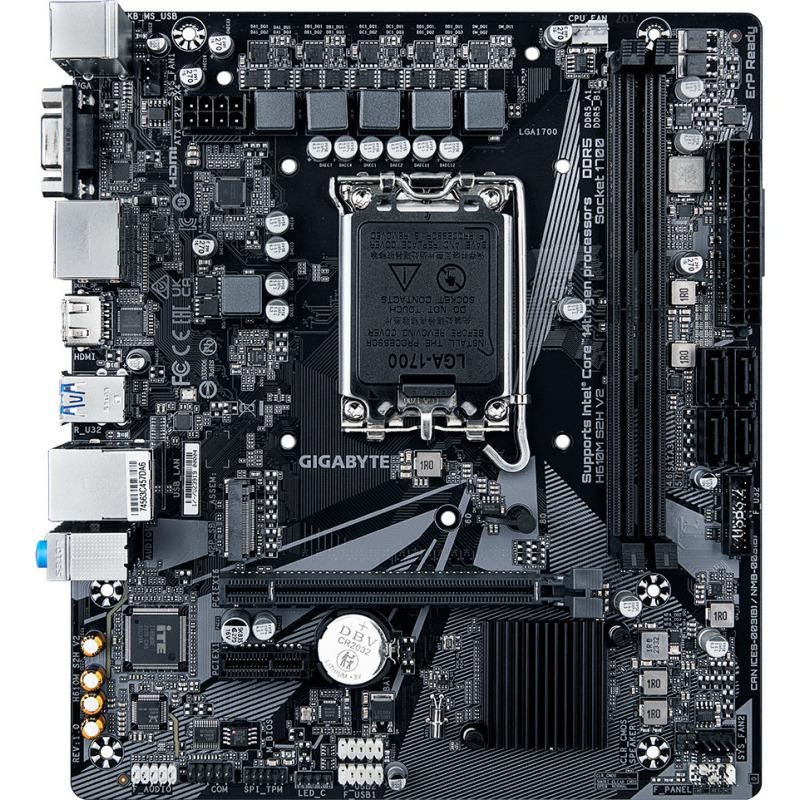

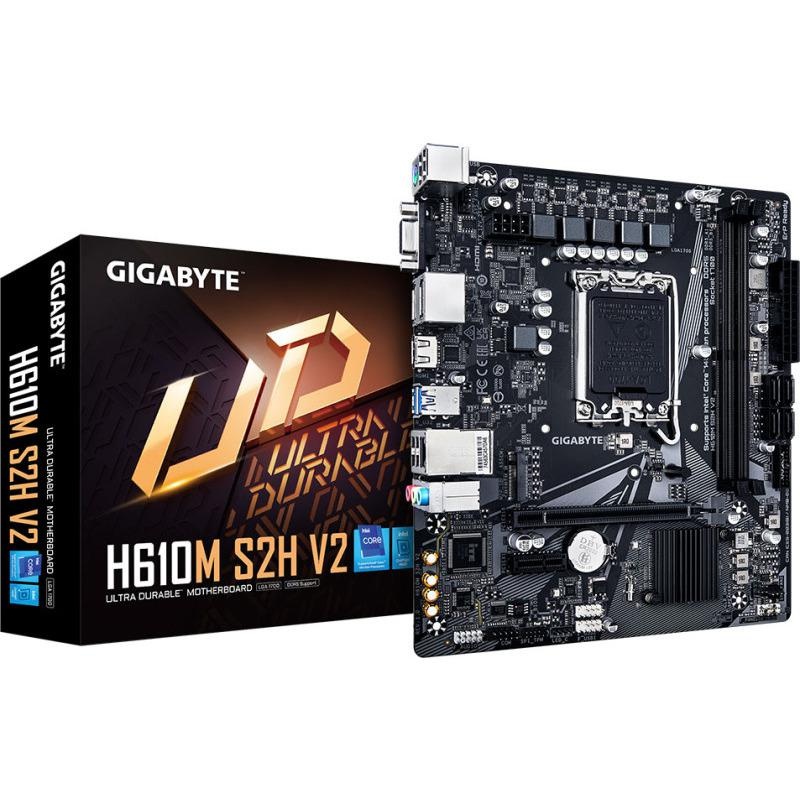

Placa de baza Gigabyte H610M S2H V2, Socket 1700, DDR5, Micro-ATX
521,99 RON
Costurile de livrare nu sunt incluse
Descriere
Placa de baza GIGABYTE H610M S2H V2 LGA1700 2x DDR5, 1x PCIE x16 1x PCIE x1, 1x M.2, 1x D-sub 1x HDMI 2x DP, 4x SATA 6GB/s, mATX
Detalii
SKU
H610M S2H V2
Categorii
Brand
Lithium weight per battery
0.07 g
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
Clear CMOS jumper
Yes
Number of M.2 (M) slots
1
Motherboard form factor
micro ATX
PC health monitoring
Fan, LED, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
Intel
Audio output channels
7.1 channels
Maximum resolution
4096 x 2304 pixels
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Serial port headers
1
Number of chassis fan connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
2
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Supported memory clock speeds
5600, 5200, 4800, 4400 MHz
Supported memory clock speed (max)
5600 MHz
ECC сompatibility
ECC & Non-ECC
Ethernet interface type
Gigabit Ethernet
Batteries included
Yes
DVI-D ports quantity
1
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
1
PS/2 ports quantity
1
Maximum number of SMP processors
1
Number of COM connectors
1
Maximum internal memory supported by processor
96 GB
PCI Express x1 slots
1
PCI Express x16 slots
1
Graphics card
HD Graphics
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 32GB, 48GB
Graphics card family
Intel
Supported DIMM module capacities
8GB, 16GB
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
DisplayPorts quantity
1
HDCP
Yes
Headphone outputs
1
VGA (D-Sub) ports quantity
1
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Product colour
Black
Cables included
SATA
Width
230 mm
Height
35 mm
Package width
265 mm
Package height
52 mm
Depth
215 mm
Package weight
690 g
Package depth
235 mm
Country of origin
China
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Active
Component for
PC
Warranty period
3 year(s)
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
On-board graphics card model
Intel HD Graphics
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Maximum internal memory
96 GB
On-board graphics card
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
Number of battery cells
1
Battery weight
3 g
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
Intel H610 Express
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Audio Chip
Realtek ALC897
Supported storage drive interfaces
M.2, SATA
Wi-Fi
No
