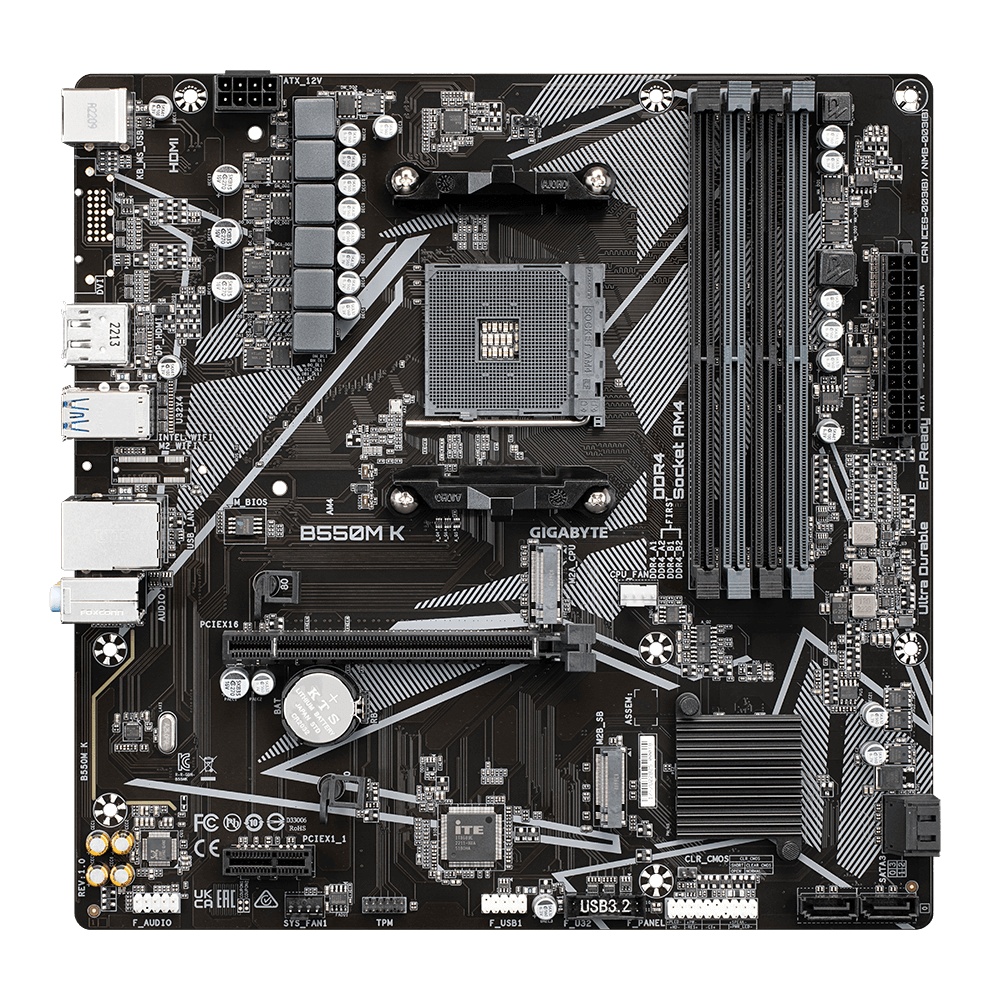

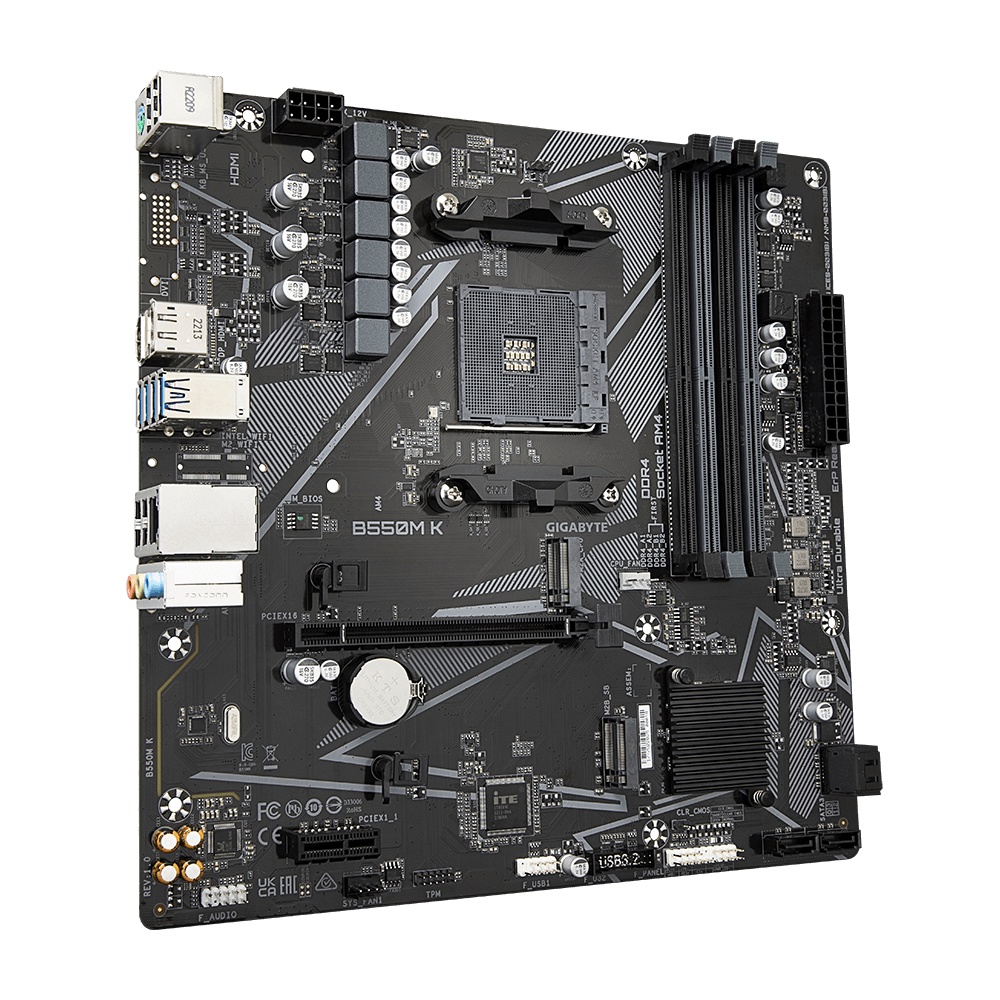

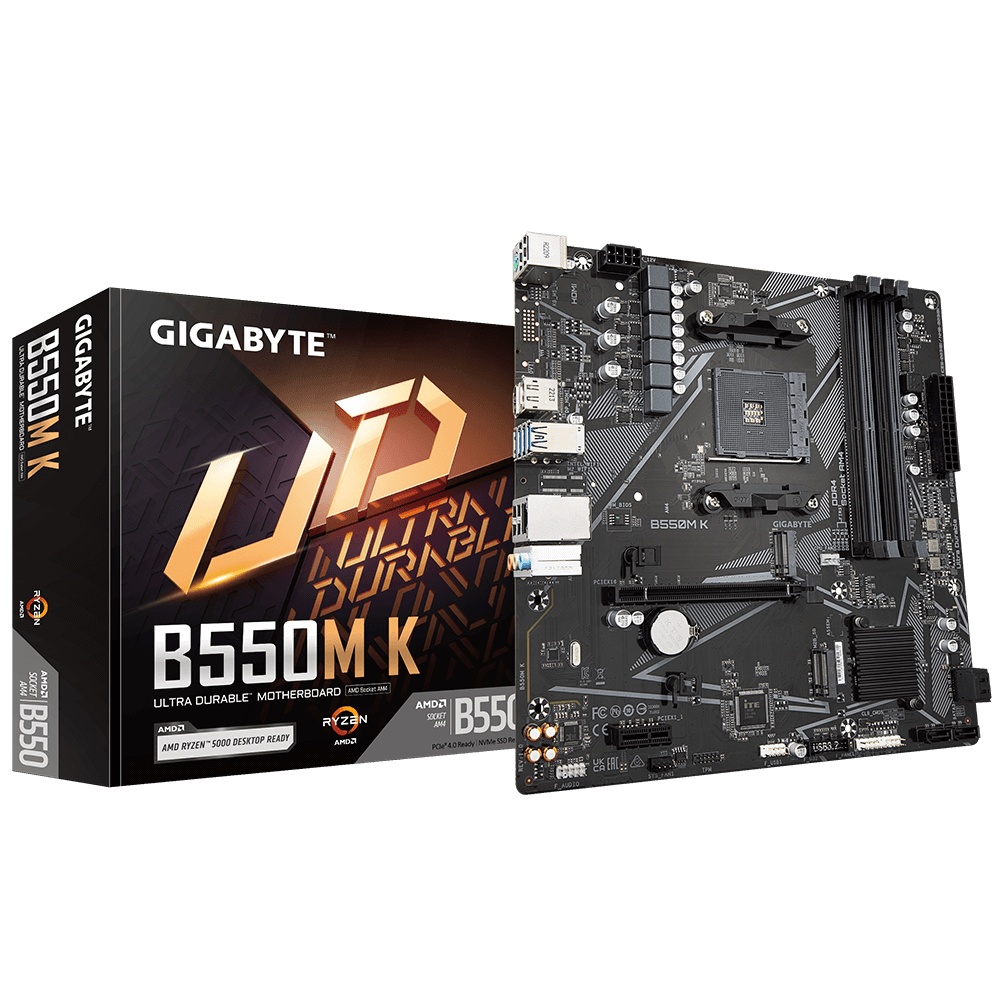

Placa de baza Gigabyte B550M K, Socket AM4, DDR4, Micro-ATX
389,99 RON
Costurile de livrare nu sunt incluse
Descriere

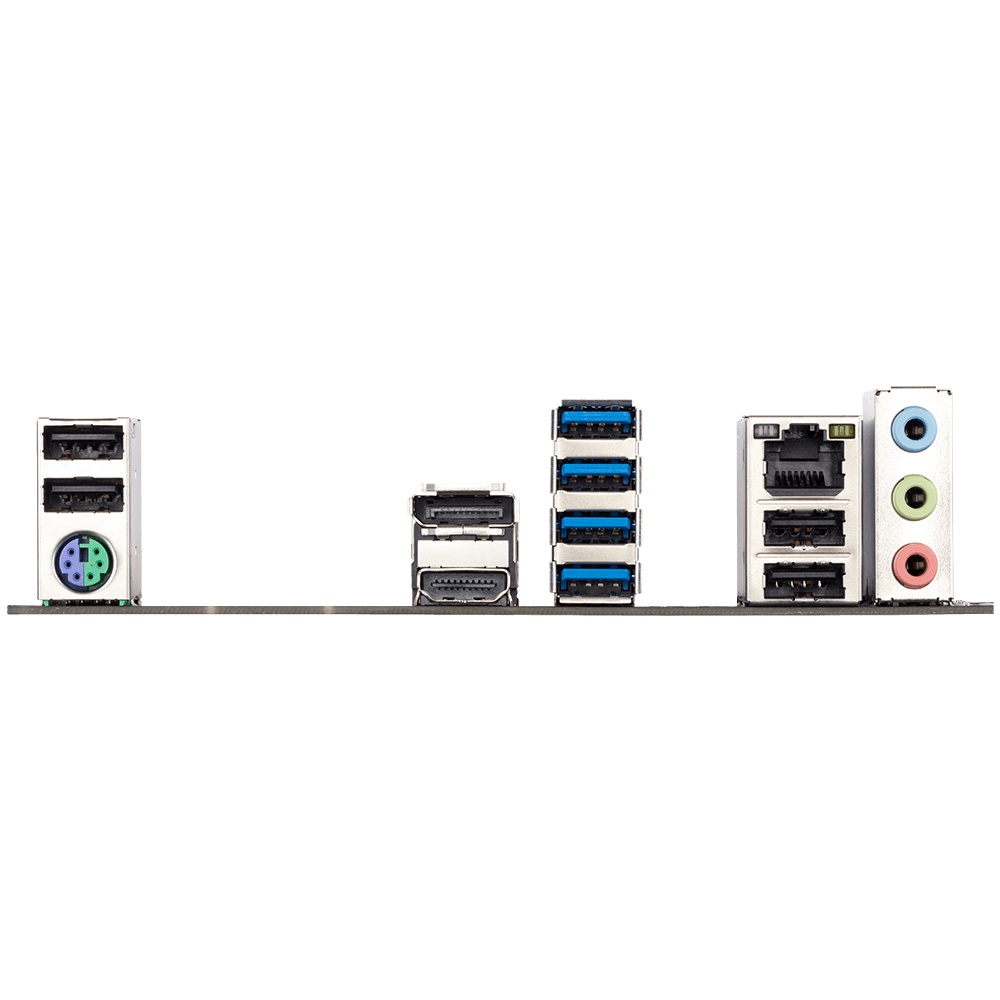

Placa de baza Gigabyte B550M K AM4, 4x DDR4, 1x DisplayPort, 1x HDMI, 1x PCIe x16, 1x PCIe x1, 2x M.2, 4x SATA 6Gb/s, 1Gbps LAN, mATX
Detalii
SKU
B550M K
Categorii
Brand
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
Clear CMOS jumper
Yes
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
3.0
Motherboard form factor
micro ATX
PC health monitoring
Fan, Temperature, Voltage
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
5120 x 2880 pixels
Front panel connector
Yes
Number of CPU fan connectors
1
TPM connector
Yes
12V power connector
Yes
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of EPS power connectors (8-pin)
1
Number of chassis fan connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR4-SDRAM
Maximum internal memory per slot
32 GB
Supported memory clock speeds
4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Supported memory clock speed (max)
4733 MHz
ECC сompatibility
ECC & Non-ECC
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Batteries included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM4
Supported processor sockets
Socket AM4
Compatible processor series
AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Supported storage drive types
HDD & SSD
Number of HDDs supported
2
Number of storage drives supported
6
PCI Express x1 (Gen 3.x) slots
1
Line-in
Yes
PS/2 ports quantity
1
Maximum internal memory supported by processor
128 GB
Total number of SATA connectors
4
PCI Express x1 slots
1
PCI Express x16 slots
1
Audio connector
Yes
Power fan connector
Yes
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Graphics card family
AMD
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
DisplayPort version
1.4
DisplayPorts quantity
1
HDCP
Yes
Headphone outputs
1
VGA (D-Sub) ports quantity
0
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Product colour
Brown
Width
244 mm
Height
35 mm
Package width
265 mm
Package height
54 mm
Depth
24.4 mm
Package weight
837 g
Package depth
265 mm
Country of origin
China
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Passive
Component for
PC
Warranty period
3 year(s)
RAID support
Yes
RAID levels
0, 1, 10
Products per shipping (inner) case
1 pc(s)
Memory channels
Dodeca-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Maximum internal memory
128 GB
On-board graphics card
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Number of battery cells
1
Battery weight
3 g
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
AMD B550
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Audio Chip
Realtek ALC897
Supported storage drive interfaces
M.2, SATA
Wi-Fi
No
