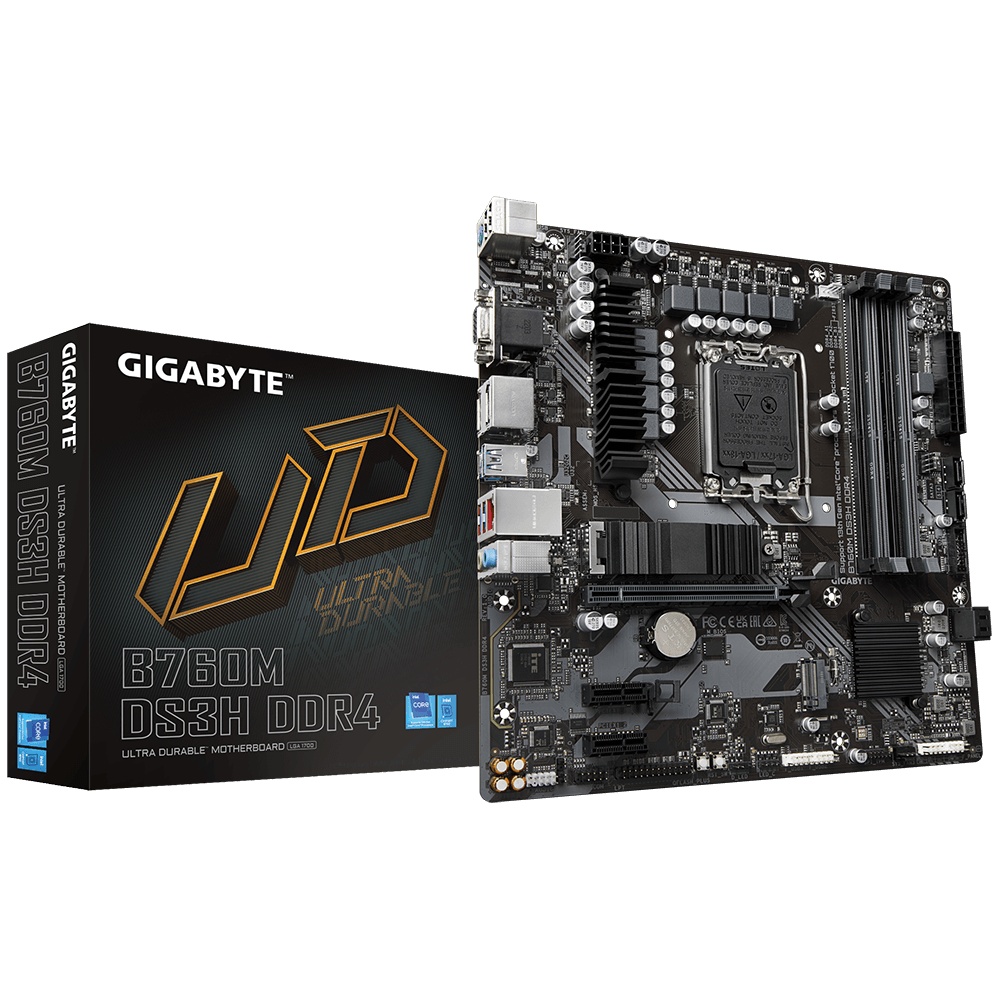

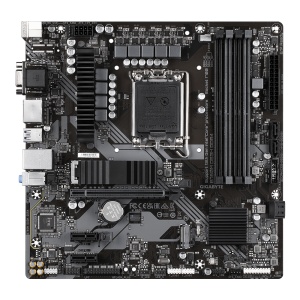

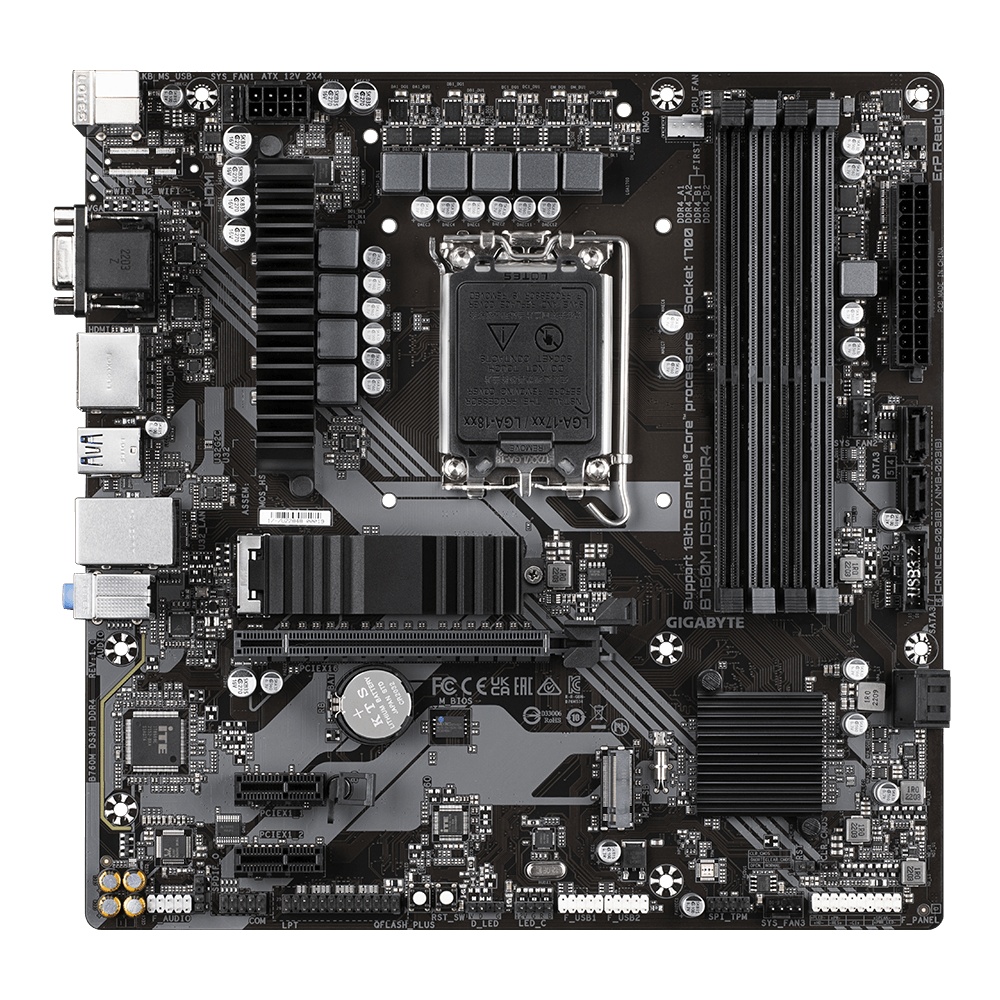

Placa de baza Gigabyte B760M DS3H, Socket 1700, DDR4, Micro-ATX
499,99 RON
Costurile de livrare nu sunt incluse
Descriere

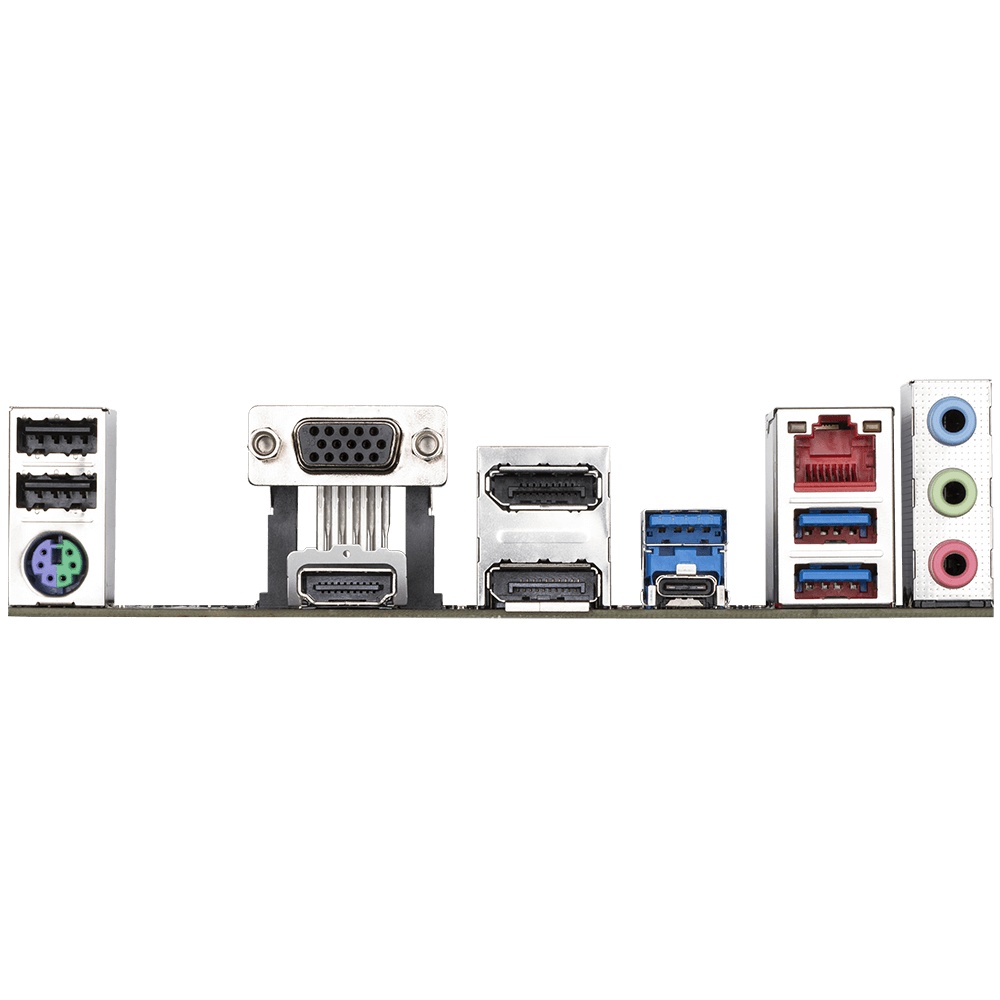

Placa de baza Gigabyte B760M DS3H DDR4 LGA1700, 4x sloturi ram, max.128GB, frecventa maxima suportata 5333MHz, 1x D-Sub, 2x DisplayPort, 1x HDMI, 1x PCIe x16, 2x PCIe x1, 2x M.2, 4x conectori SATA 6GB/s, 1x LAN 2.5Gbps, microATX
Detalii
SKU
B760M DS3H DDR4
Categorii
Brand
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
Clear CMOS jumper
Yes
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
PCI Express x16 (Gen 3.x) slots
1
Motherboard form factor
micro ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
Intel
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2304 pixels
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Serial port headers
1
Number of chassis fan connectors
3
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR4-SDRAM
Supported memory clock speed (max)
5333 MHz
ECC сompatibility
Non-ECC
Ethernet interface type
2.5 Gigabit Ethernet
DVI-D ports quantity
0
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
6
S/PDIF out connector
Yes
Line-in
Yes
PS/2 ports quantity
1
Number of displays supported
4
Maximum internal memory supported by processor
128 GB
Total number of SATA connectors
4
Parallel connector
Yes
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
DisplayPorts quantity
2
HDCP
Yes
Headphone outputs
1
VGA (D-Sub) ports quantity
1
Windows operating systems supported
Windows 10, Windows 11
Product colour
Brown
Width
244 mm
Height
35 mm
Package width
265 mm
Package height
54 mm
Depth
24.4 mm
Package weight
990 g
Package depth
265 mm
Country of origin
China
Bundled software
Norton Internet Security
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Component for
PC
RAID support
Yes
RAID levels
0, 1, 5, 10
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Maximum internal memory
128 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
HDMI ports quantity
1
Number of battery cells
1
Battery weight
3 g
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Motherboard chipset
Intel B760 Express
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Supported storage drive interfaces
M.2, SATA III
Wi-Fi
No
