NOU

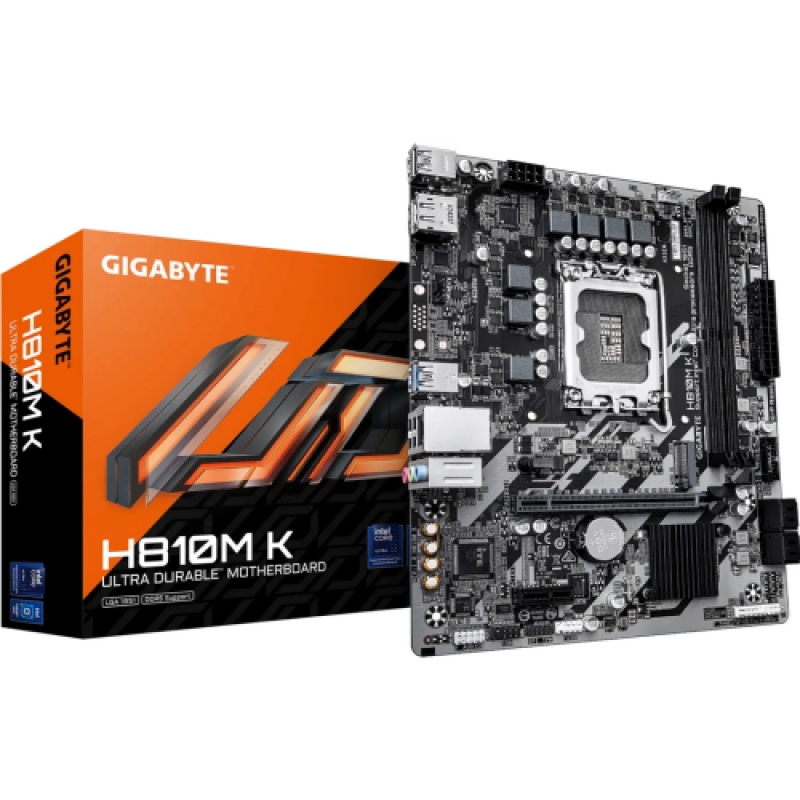

Placa de baza Gigabyte H810M K, Socket 1851, DDR5, Micro-ATX
609,99 RON
Costurile de livrare nu sunt incluse
Descriere
Placa de Baza GIGABYTE H810M K LGA1851, 2x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 1x M.2, 4x SATA 6GB/s, mATX
Detalii
SKU
H810M K
Categorii
Brand
PCI Express x1
1
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
1
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
4.0
Motherboard form factor
micro ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
Intel
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
1
TPM connector
Yes
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Serial port headers
1
Number of EPS power connectors (8-pin)
1
Number of chassis fan connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
2
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
Supported memory clock speeds
5600,6400 MHz
Supported memory clock speed (max)
6400 MHz
ECC сompatibility
ECC & Non-ECC
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Batteries included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
Compatible processor series
Intel Core Ultra (Series 2)
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
5
MB-Format
micro-ATX
RAM-Slots
2
MB-Socket
LGA1851
PCI-Ex16
1
USB3
4-8
PCI-Ex1
1
PCI Express x1 (Gen 3.x) slots
1
Line-in
Yes
Tehnologie
Dual channel
Format
mATX
Chipset audio integrat
Realtek
Tip Memorie
DDR5
Sloturi M.2
1
Numar sloturi memorie
2
Soclu Procesor
Socket 1851
Tip slot interfata grafica
PCIe 4.0 x16
Model Chipset
H810
Sloturi memorie
2
Alte specificatii
Suporta profil de memorie XMP
USB 2.0
4
SATA III
4
Socket procesor
1851
USB 3.2 Gen1 tip A
2
Suport audio
7.1
Audio jacks
3
Interfata grafica
PCI Express x16 4.0
Placa video integrata
Necesita procesor cu tehnologia Intel Integrated Graphics
Placa retea integrata
1 Gbps
Chipset retea
Realtek GbE
Chipset audio
Realtek ALC897
RAID
0, 1, 5, 10
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
NGFF (M.2)
1
Memorie Suportata
DDR5
Capacitate maxima memorie RAM
128 GB
Frecvente suportate
6400/5600 MHz
Producator chipset
Intel
Procesoare suportate
Intel Core Ultra din a doua serie
PCI Express 4.0
1 (x16)
Header USB 3.0
Da
Dimensiuni (L x l, cm)
22.6 x 18.5 cm
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
DisplayPort version
2.1
DisplayPorts quantity
1
Thunderbolt
Nu
HDCP
Yes
Headphone outputs
1
VGA (D-Sub) ports quantity
0
Gaming
Nu
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Product colour
Dark brown
Width
226 mm
Height
35 mm
Package width
265 mm
Package height
54 mm
Weight
688 g
Depth
185 mm
Package weight
766.6 g
Package depth
265 mm
Country of origin
China
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
BLUETOOTH
Nu
HDMI
Da
RJ-45
1
Chipset
H810
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Passive
Component for
PC
Recomandat Gaming
Da
Warranty period
3 year(s)
RAID support
Yes
RAID levels
0, 1, 5, 10
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Maximum internal memory
128 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
HDMI version
2.1
Number of battery cells
1
Battery weight
3 g
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
Intel H810
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Audio Chip
Realtek ALC897
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
Wi-Fi
No
DisplayPort
1
