NOU

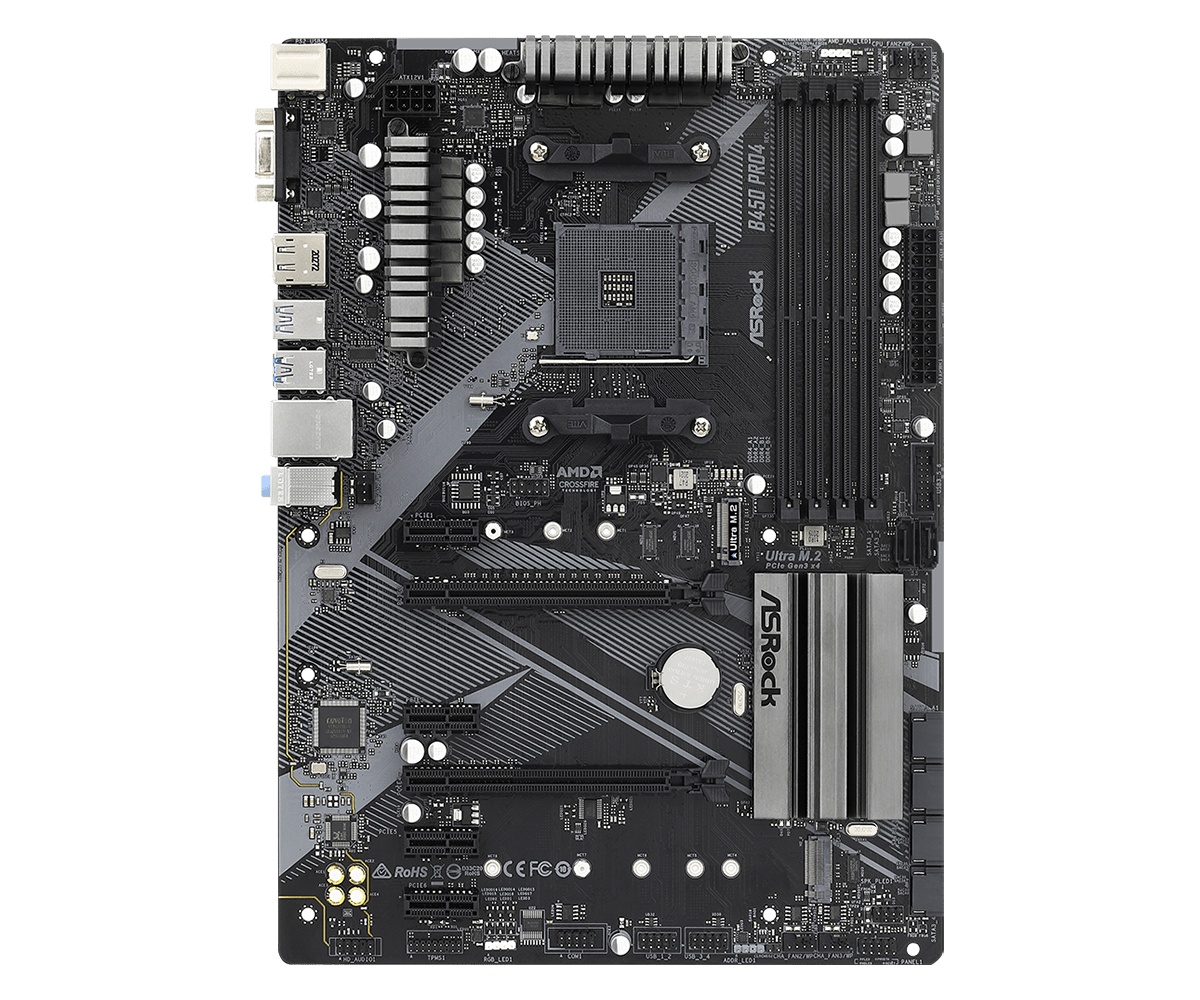

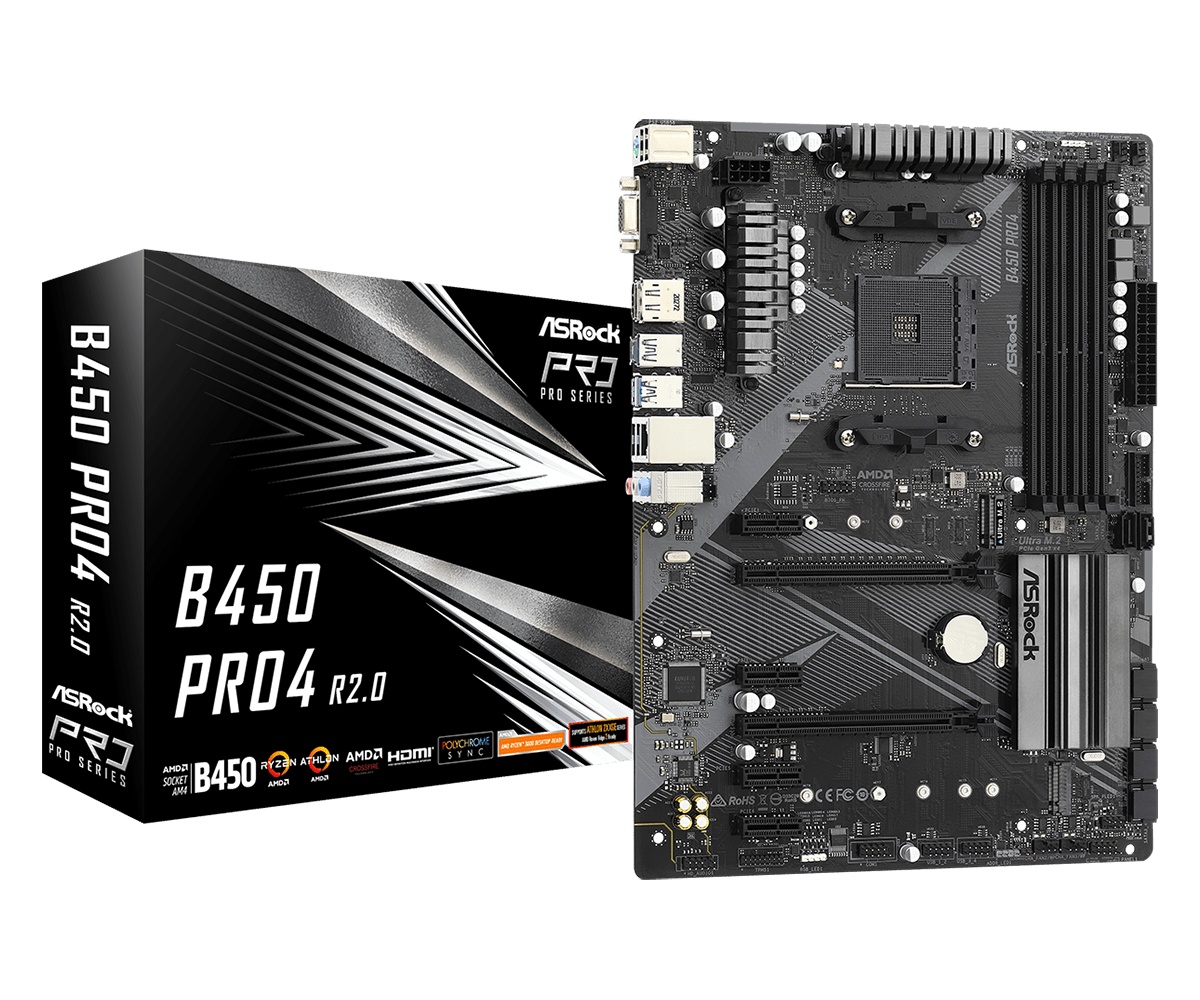

Placa de baza ASRock B450 Pro4 R2.0, Socket AM4, DDR4, ATX
402,99 RON
Costurile de livrare nu sunt incluse
Descriere
Placa de baza Asrock B450 Pro4 R2.0 AM4 Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors Supports DDR4 3200+ (OC) 2 PCIe 3.0 x16, 4 PCIe 2.0 x1 AMD Quad CrossFireX™ Graphics Output: HDMI, Display Port, D-Sub 7.1 CH HD Audio (Realtek ALC892/897 Audio Codec) 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (PCIe Gen3 x2 & SATA3) 2 USB 3.2 Gen2 (Rear Type A+C) 6 USB 3.2 Gen1 (2 Front, 4 Rear) Realtek Gigabit LAN https://www.asrock.com/mb/AMD/B450%20Pro4%20R2.0/index.asp
Detalii
SKU
B450 PRO4 R2.0
Categorii
Brand
ACPI version
5.1
System Management BIOS (SMBIOS) version
2.3
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
Number of M.2 (M) slots
2
PCI Express x16 (Gen 3.x) slots
2
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
CrossFireX, Quad-GPU CrossFireX
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of chassis fan connectors
3
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
6
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR4-SDRAM
Supported memory clock speeds
2133,2400,2667,2933,3200 MHz
ECC сompatibility
ECC & Non-ECC
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
DVI-D ports quantity
0
Processor socket
Socket AM4
Compatible processor series
AMD Athlon, AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
MB-Format
ATX
RAM-Slots
4
MB-Socket
AM4
PCI-Ex16
2
USB3
4-8
PCI-Ex1
1
PS/2 ports quantity
1
Maximum number of SMP processors
1
Number of COM connectors
1
Number of displays supported
3
Wake-on-LAN ready
Yes
Drivers included
Yes
PCI Express x1 (Gen 2.x) slots
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
DisplayPort version
1.2
DisplayPorts quantity
1
HDCP
Yes
VGA (D-Sub) ports quantity
1
Windows operating systems supported
Windows 10 x64
Cables included
SATA
Width
30.5 mm
Depth
224 mm
Bundled software
ASRock A-Tuning
ASRock Polychrome SYNC
ASRock XFast LAN
Certification
FCC, CE, ErP/EuP
PCI
0
Serial-or-Paralel
No/No
Component for
PC
Harmonized System (HS) code
84733020
CPU încorporat
No
RAID support
Yes
RAID levels
0, 1, 10
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Maximum internal memory
128 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Motherboard chipset
AMD B450
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Audio Chip
Realtek ALC892 / Realtek ALC897
Supported storage drive interfaces
M.2, SATA III
Wi-Fi
No
