NOU

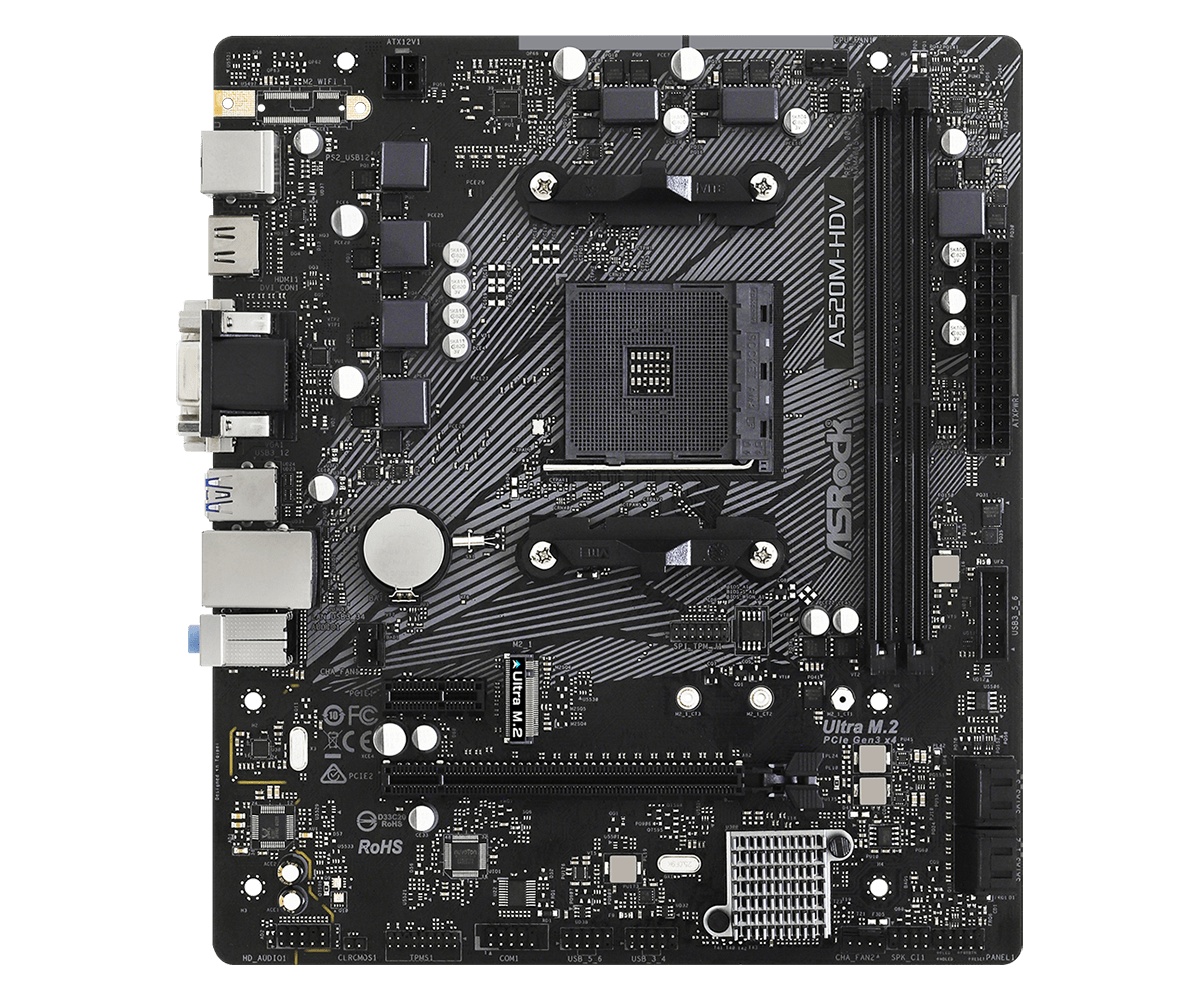

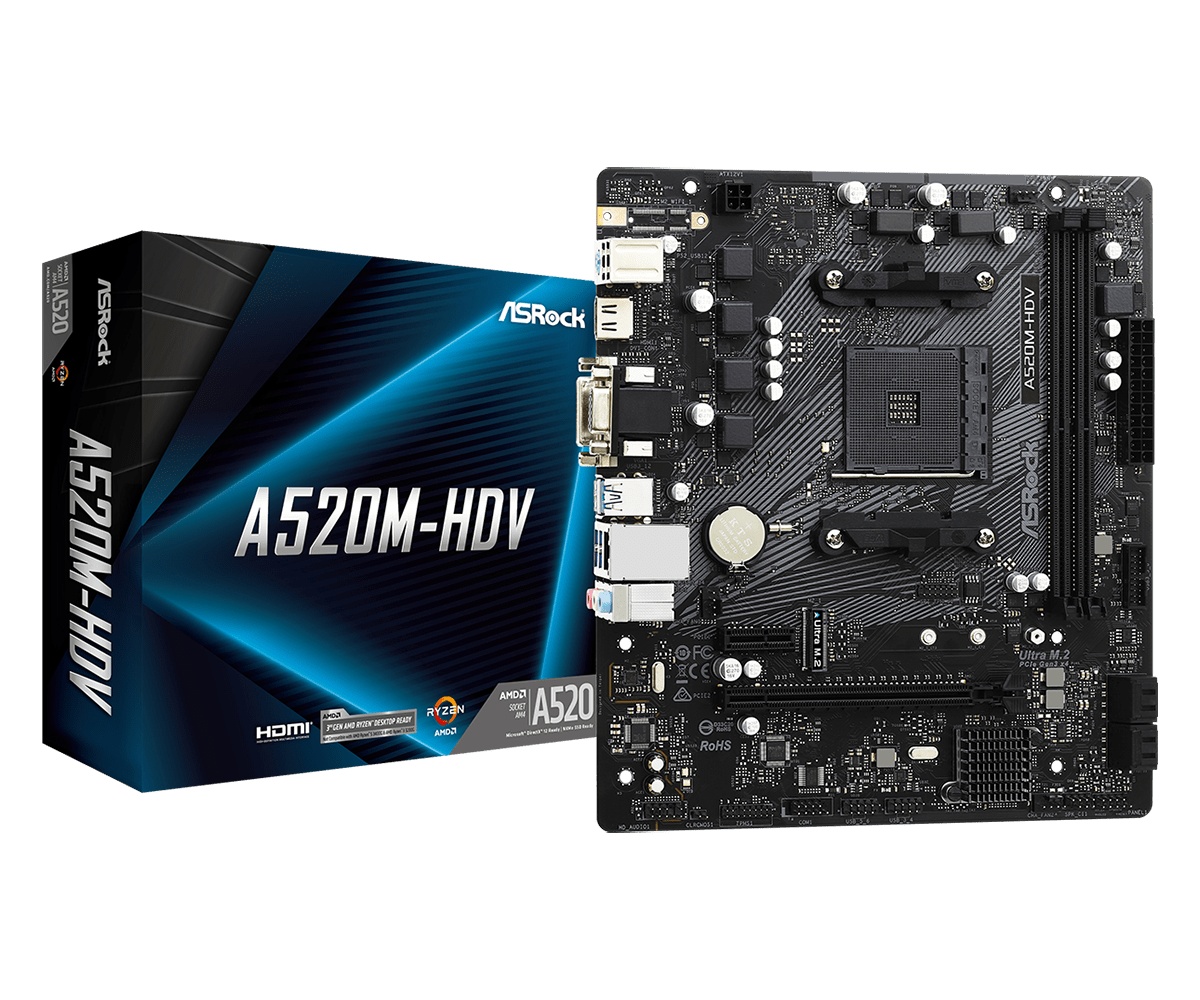

Placa de baza ASRock A520M-HDV, Socket AM4
266,99 RON
Costurile de livrare nu sunt incluse
Descriere

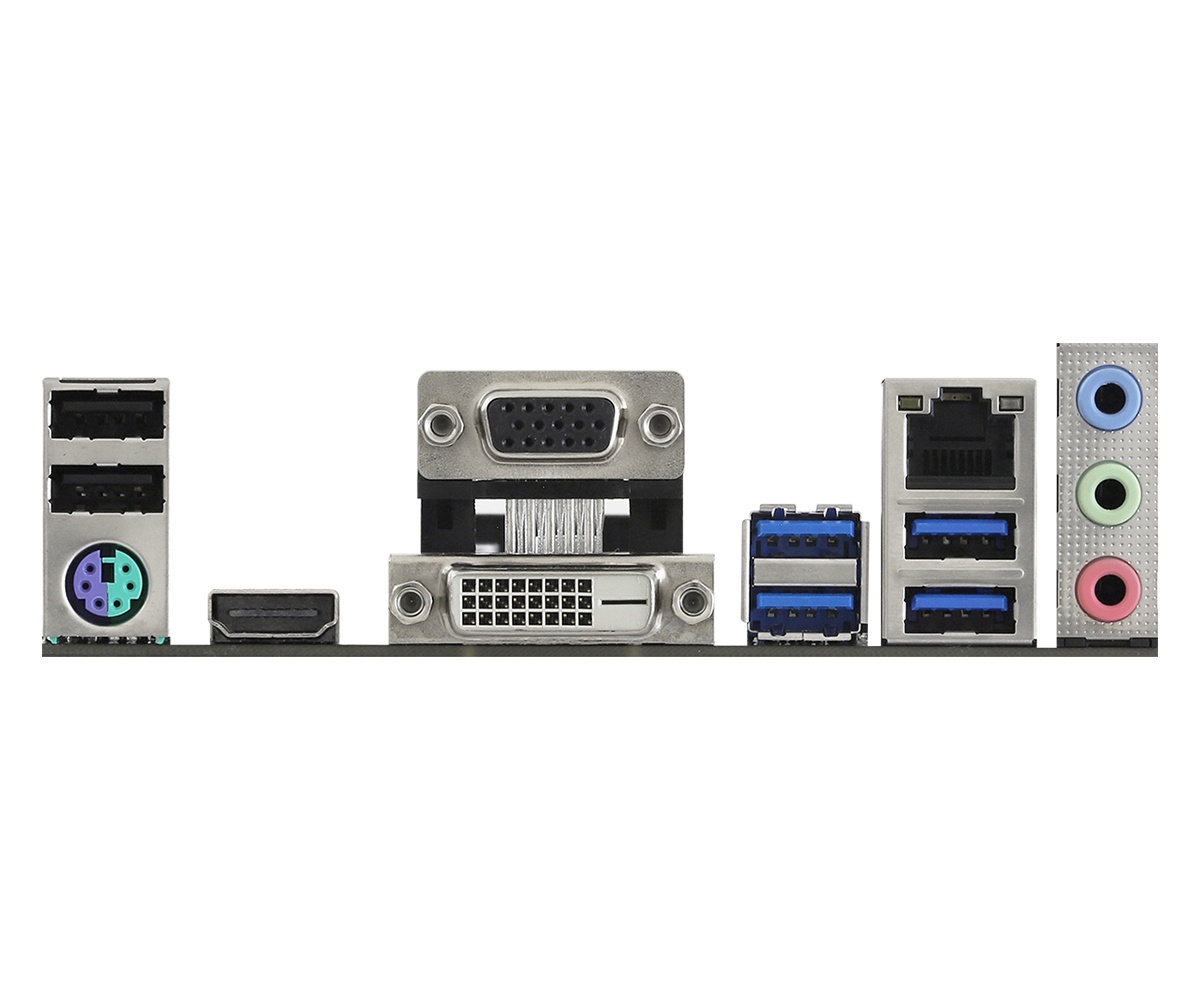

Placa de baza AsRock A520M-HDV AM4 Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors 6 Phase Power Design Supports DDR4 4733+ (OC) 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 Graphics Output Options: D-Sub, DVI-D, HDMI 7.1 CH HD Audio (Realtek ALC887 Audio Codec) 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3) 6 x USB 3.2 Gen1(4 x Rear, 2 x Front) 6 x USB 2.0(2 x Rear, 4 x Front) Realtek Gigabit LAN https://www.asrock.com/MB/AMD/A520M-HDV/index.asp#Specification
Detalii
SKU
A520M-HDV
Categorii
Brand
BIOS type
UEFI AMI
PCI Express x16 (Gen 3.x) slots
1
Motherboard form factor
micro ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of chassis fan connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
0
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of memory slots
2
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR4-SDRAM
Supported memory clock speeds
2133,2400,2666,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4500,4533 MHz
ECC сompatibility
Non-ECC
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
DVI-D ports quantity
0
Processor socket
Socket AM4
Compatible processor series
AMD Ryzen 3000 Series
Number of HDDs supported
5
MB-Format
micro-ATX
RAM-Slots
4
MB-Socket
AM4
PCI-Ex16
1
USB3
4-8
PCI-Ex1
1
PCI Express x1 (Gen 3.x) slots
1
PS/2 ports quantity
1
Number of COM connectors
1
Number of SATA II connectors
0
Wake-on-LAN ready
Yes
Graphics card
Radeon Vega
Number of Parallel ATA connectors
0
eSATA ports quantity
0
Firewire (IEEE 1394) ports
0
Graphics card family
AMD
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
VGA (D-Sub) ports quantity
1
Width
230 mm
Depth
201 mm
PCI
0
Serial-or-Paralel
No/No
Component for
PC
Harmonized System (HS) code
84733020
CPU încorporat
No
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Maximum internal memory
64 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
HDMI ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Supported storage drive interfaces
M.2, SATA III
Wi-Fi
No
