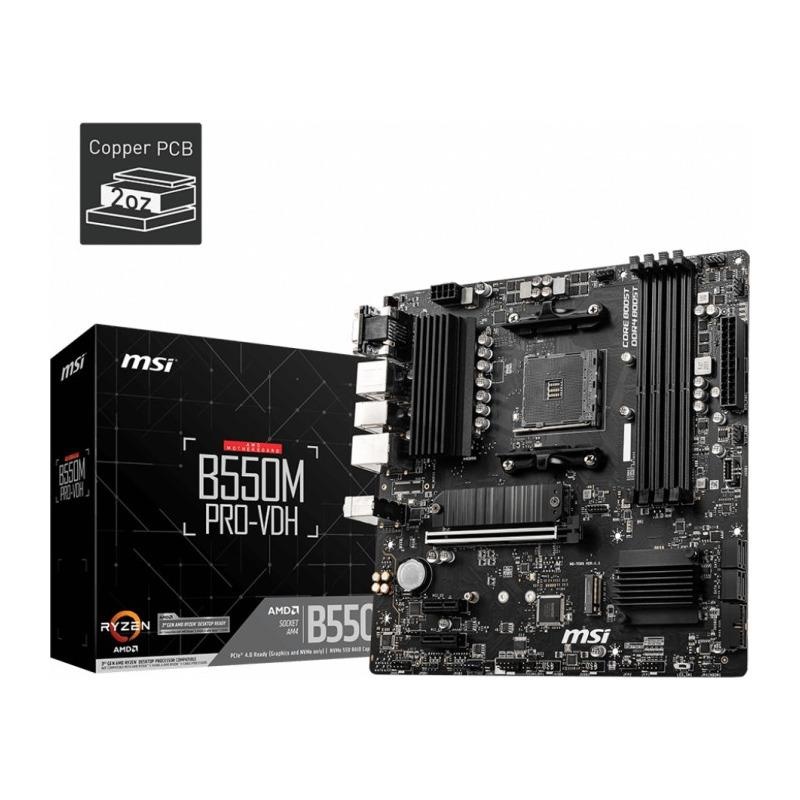

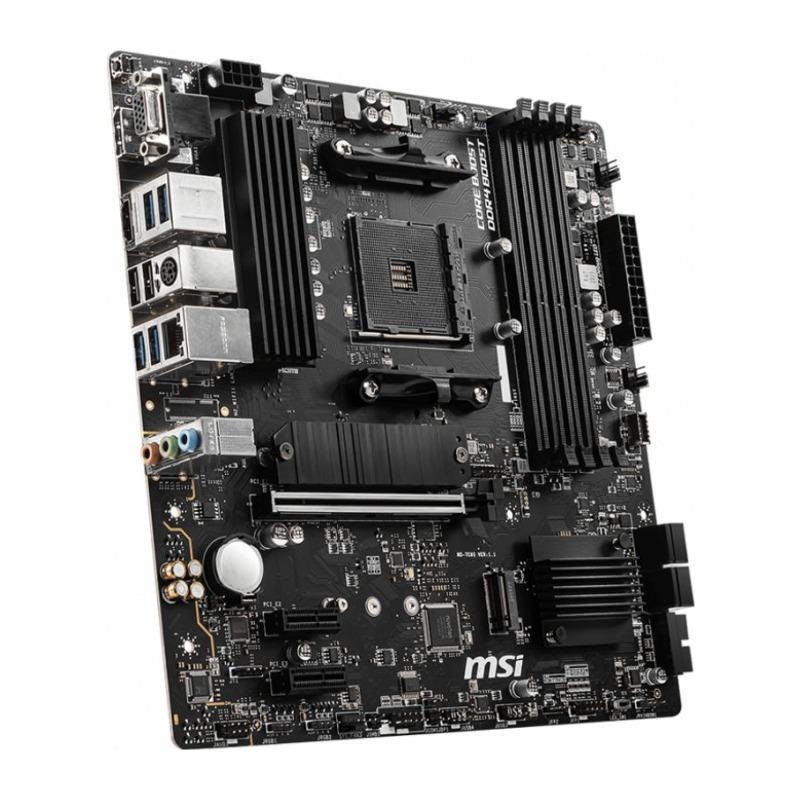

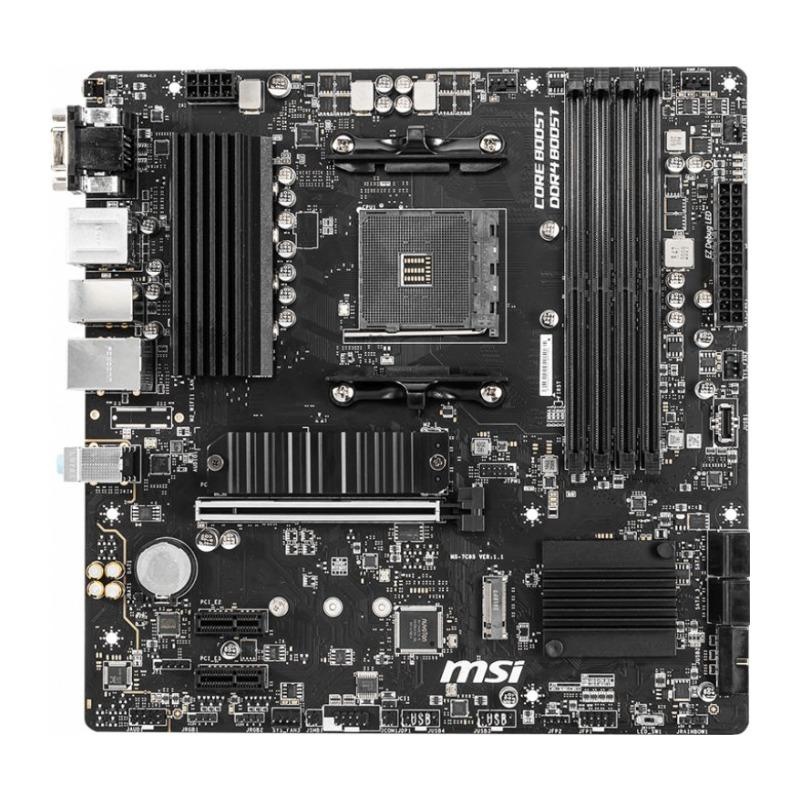

Placa de baza MSI B550M PRO-VDH, Socket AM4, DDR4, Micro-ATX
508,99 RON
Costurile de livrare nu sunt incluse
Descriere
Placa de Baza MSI B550M PRO-VDH AM4 4x DDR4, 1x PCIE x1 2x PCIE x2, 2x M.2, 4x SATA3, 1x VGA 1x HDMI 1x DP, mATX
Detalii
SKU
B550M PRO-VDH
Categorii
Brand
Clear CMOS jumper
Yes
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
Motherboard form factor
micro ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Serial port headers
1
Number of chassis fan connectors
3
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR4-SDRAM
Supported memory clock speeds
1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400 MHz
ECC сompatibility
ECC & Non-ECC
LAN controller
Realtek 8111HN
Ethernet interface type
Gigabit Ethernet
DVI-D ports quantity
0
Processor socket
Socket AM4
Compatible processor series
AMD Ryzen 3000 Series
Supported storage drive types
HDD & SSD
PCI Express x1 (Gen 3.x) slots
2
PS/2 ports quantity
0
Maximum number of SMP processors
1
Chassis intrusion connector
Yes
Number of SATA II connectors
0
Drivers included
Yes
Number of Parallel ATA connectors
0
eSATA ports quantity
0
Firewire (IEEE 1394) ports
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
DisplayPorts quantity
1
VGA (D-Sub) ports quantity
1
Cables included
SATA
Width
244 mm
Height
65 mm
Weight
1 kg
Depth
24.4 mm
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Component for
PC
Harmonized System (HS) code
84733020
RAID levels
0, 1, 10
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Maximum internal memory
128 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
HDMI ports quantity
1
HDMI version
2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
AMD B550
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Supported storage drive interfaces
SATA III
Wi-Fi
No
