NOU

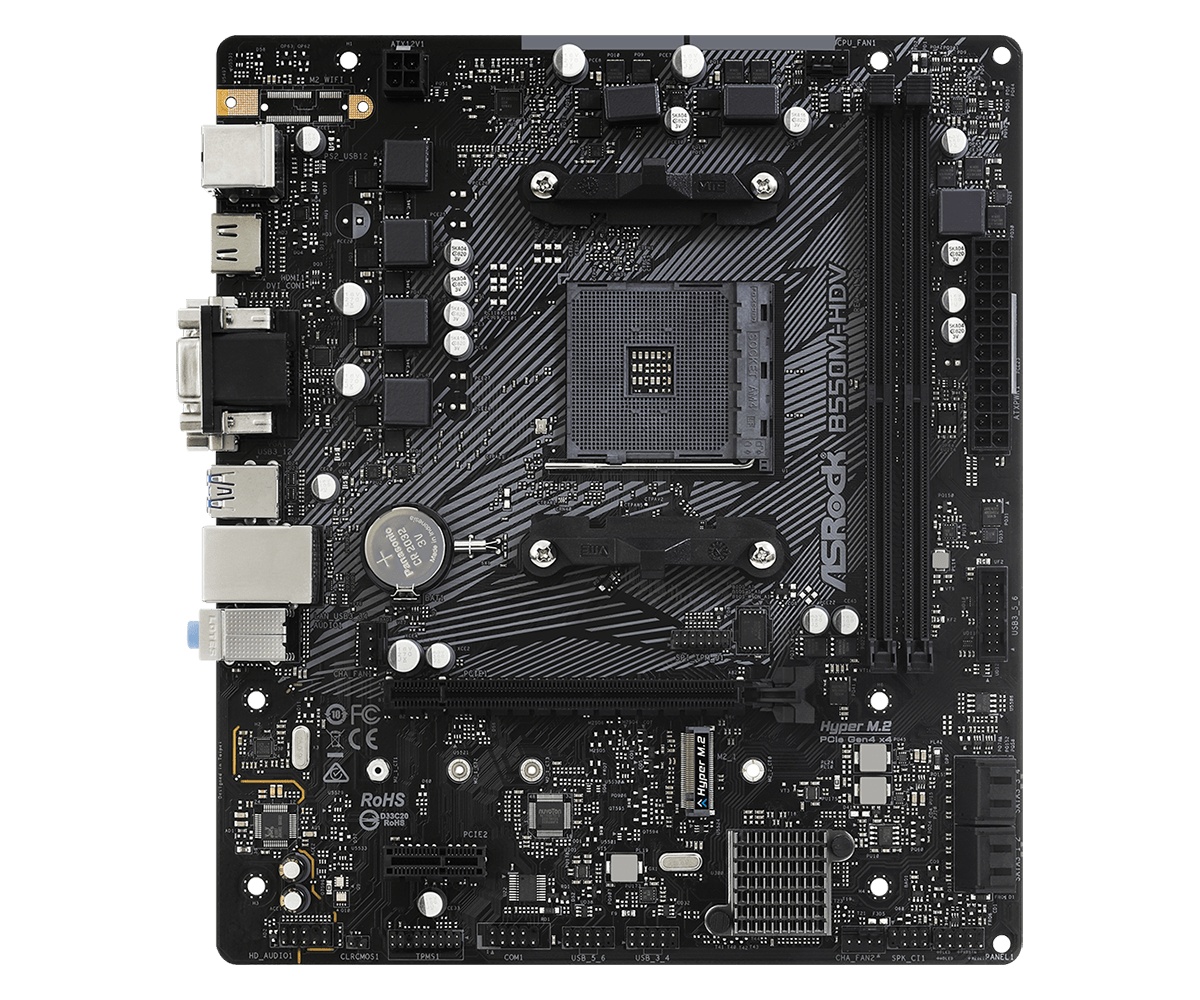

  • Placa de baza ASRock B550M-HDV, Socket AM4, DDR4, Micro-ATX - Img 1

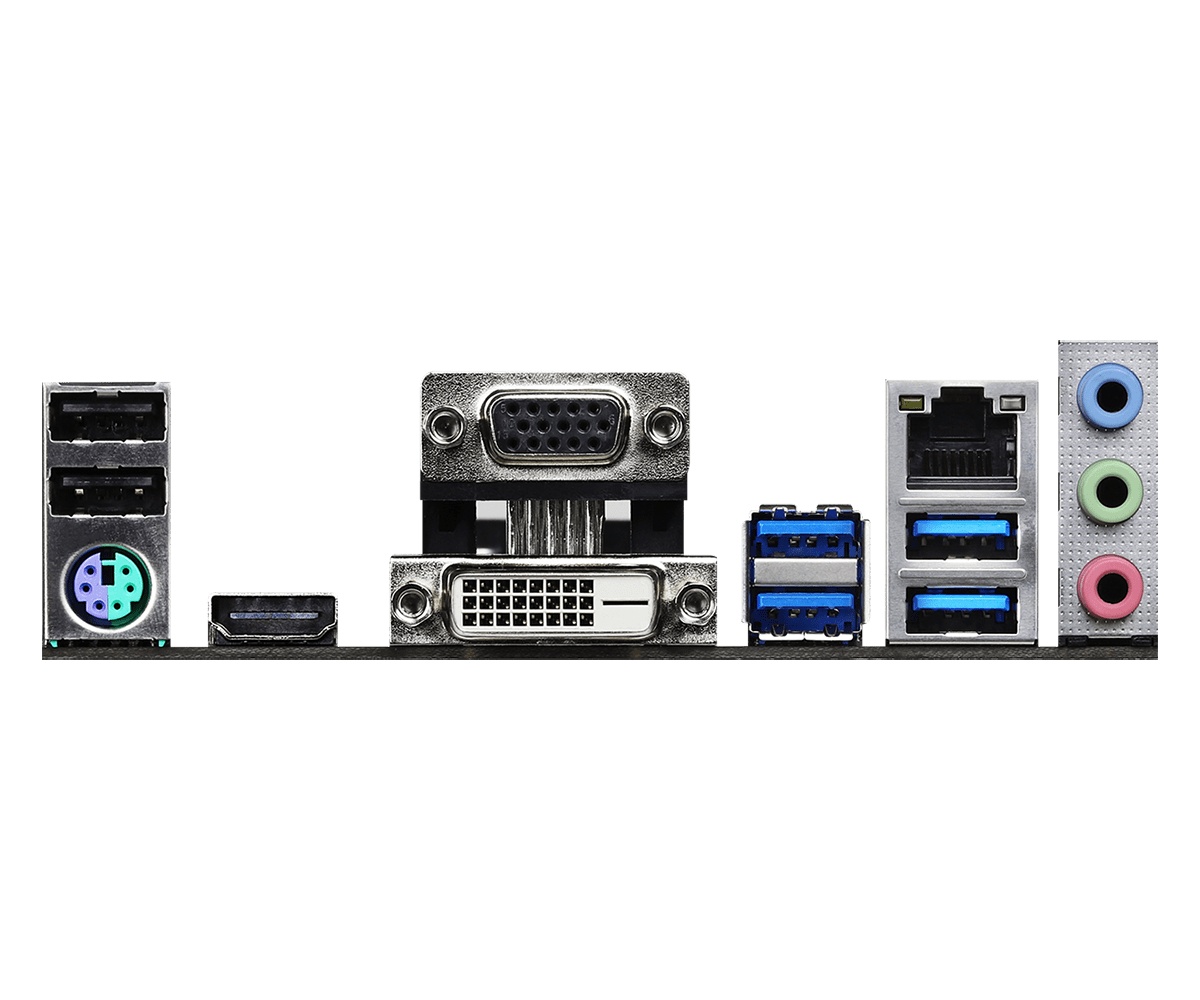

  • Placa de baza ASRock B550M-HDV, Socket AM4, DDR4, Micro-ATX - Img 2

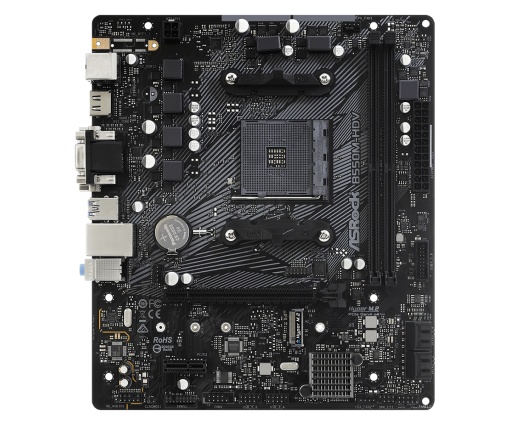

  • Placa de baza ASRock B550M-HDV, Socket AM4, DDR4, Micro-ATX - Img 3

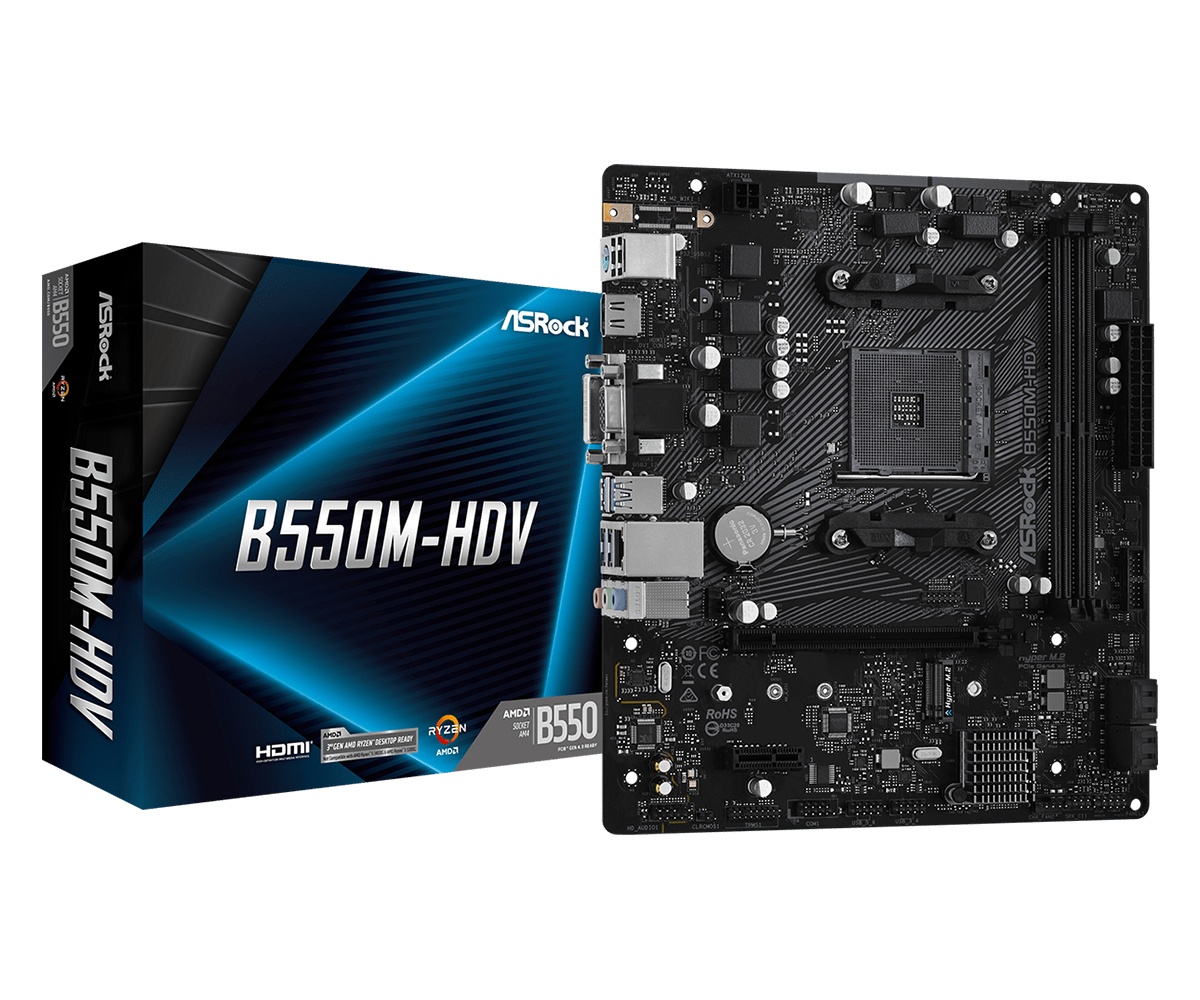

Placa de baza ASRock B550M-HDV, Socket AM4, DDR4, Micro-ATX

384,99 RON
Costurile de livrare nu sunt incluse
Cod produs - SKU B550M-HDV
Adauga la Favorite

Descriere

Placa de baza AsRock B550M-HDV AM4 Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors 6 Power Phase Design Supports DDR4 4733+ (OC) 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 Graphics Output Options: HDMI, DVI-D, D-Sub 7.1 CH HD Audio (Realtek ALC887 Audio Codec) 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3) 6 USB 3.2 Gen1 (2 Front, 4 Rear) Gigabit LAN https://www.asrock.com/MB/AMD/B550M-HDV/index.asp#Specification

Detalii

SKU
B550M-HDV
Categorii
Placi de baza
Brand
ASROCK
BIOS type
UEFI AMI
Motherboard form factor
micro ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
DirectX version
12.0
TPM connector
Yes
USB 2.0 connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of chassis fan connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of memory slots
2
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR4-SDRAM
ECC сompatibility
ECC & Non-ECC
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
DVI-D ports quantity
1
Processor socket
Socket AM4
Compatible processor series
AMD Ryzen 3000 Series
PS/2 ports quantity
1
Maximum number of SMP processors
1
Number of SATA II connectors
0
Peripheral (Molex) power connectors (4-pin)
1
Wake-on-LAN ready
Yes
Drivers included
Yes
Graphics card
Radeon Vega
Number of Parallel ATA connectors
0
eSATA ports quantity
0
Firewire (IEEE 1394) ports
0
Graphics card family
AMD
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
HDCP
Yes
VGA (D-Sub) ports quantity
1
Width
230 mm
Height
70 mm
Weight
465 g
Depth
201 mm
PCI
0
Serial-or-Paralel
No/No
Component for
PC
Harmonized System (HS) code
84733020
CPU încorporat
No
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Maximum internal memory
64 GB
On-board graphics card
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
HDMI ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
AMD B550
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Audio Chip
Realtek ALC887
Supported storage drive interfaces
M.2, SATA III
Wi-Fi
No
