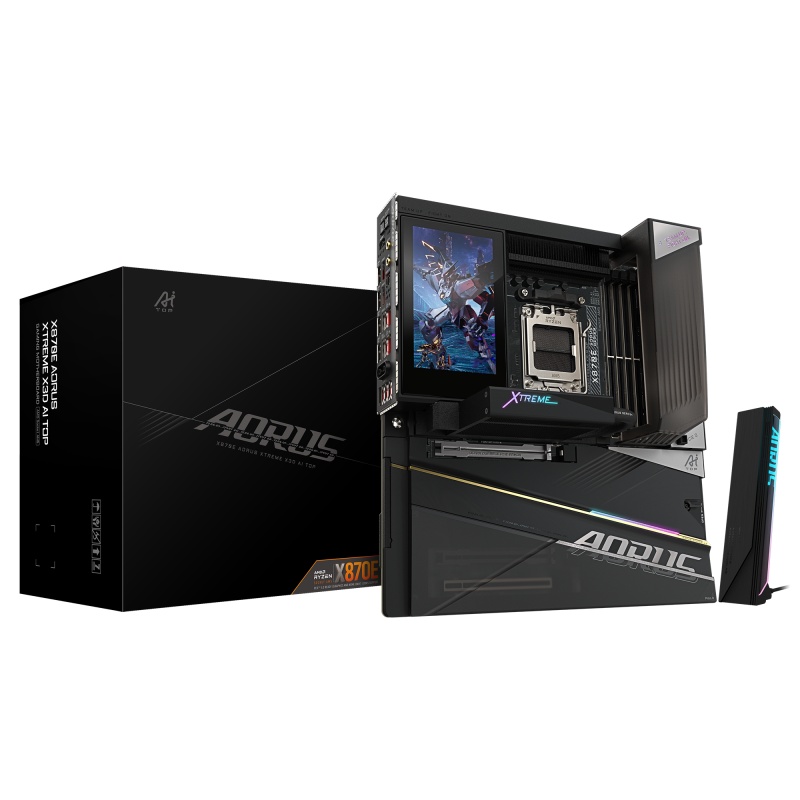

Placa de baza Gigabyte X870E AORUS XTREME X3D AI TOP, Socket AM5, DDR5, E-ATX
7.546,99 RON
Costurile de livrare nu sunt incluse
Descriere
GIGABYTE X870E AORUS XTREME X3D AI TOP. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Realtek RTL8127, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Detalii
SKU
X870E A XTR X AI TOP
Categorii
Brand
Lithium weight per battery
0.07 g
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
512 Mbit
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
5
1st M.2 largest key size
2580
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
Motherboard form factor
Extended ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
Number of water pump connectors
3
RGB LED pin header
Yes
Number of RGB LED pin headers
1
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of EPS power connectors (8-pin)
2
Number of chassis fan connectors
3
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of SATA III connectors
2
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
Supported memory clock speeds
9000,8800,8600,8400,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Supported memory clock speed (max)
9000 MHz
ECC сompatibility
Non-ECC
LAN controller
Realtek RTL8127
Ethernet interface type
10 Gigabit Ethernet
Antenna included
Yes
Batteries included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of HDDs supported
2
Number of storage drives supported
7
Line-in
Yes
PCI Express x16 (Gen 5.x) slots
2
USB 3.2 Gen 2x2 connectors
1
4th M.2 largest key size
22110
4th M.2 highest PCI Express generation
4.0
S/PDIF out port
Yes
USB4 Gen 2x2 ports quantity
2
Digital audio optical out
1
Number of temperature sensor headers
2
5th M.2 largest key size
2280
5th M.2 highest PCI Express generation
4.0
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
8
DisplayPort version
1.4
HDCP
Yes
HDCP version
2.3
VGA (D-Sub) ports quantity
0
USB 3.2 Gen 2x2 Type-C ports quantity
1
Windows operating systems supported
Windows 11 x64
Product colour
Black
Width
305 mm
Height
35 mm
Package width
387 mm
Package height
167 mm
Weight
8.02 kg
Depth
285 mm
Package weight
11.2 kg
Package depth
387 mm
Country of origin
Taiwan
Bundled software
Norton Internet Security (OEM version)
BLUETOOTH
Yes
Cooling type
Passive
Component for
PC
Warranty period
3 year(s)
RAID support
Yes
RAID levels
0, 1, 5, 10
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
Battery capacity
220 mAh
Maximum internal memory
256 GB
WLAN controller model
MediaTek MT7927
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
2
HDMI version
2.1
Number of battery cells
1
Battery weight
3 g
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Motherboard chipset
AMD X870E
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Audio Chip
1 ESS ES9280AC + 2 ESS ES9080
Supported storage drive interfaces
M.2, SATA III
Wi-Fi
Yes
