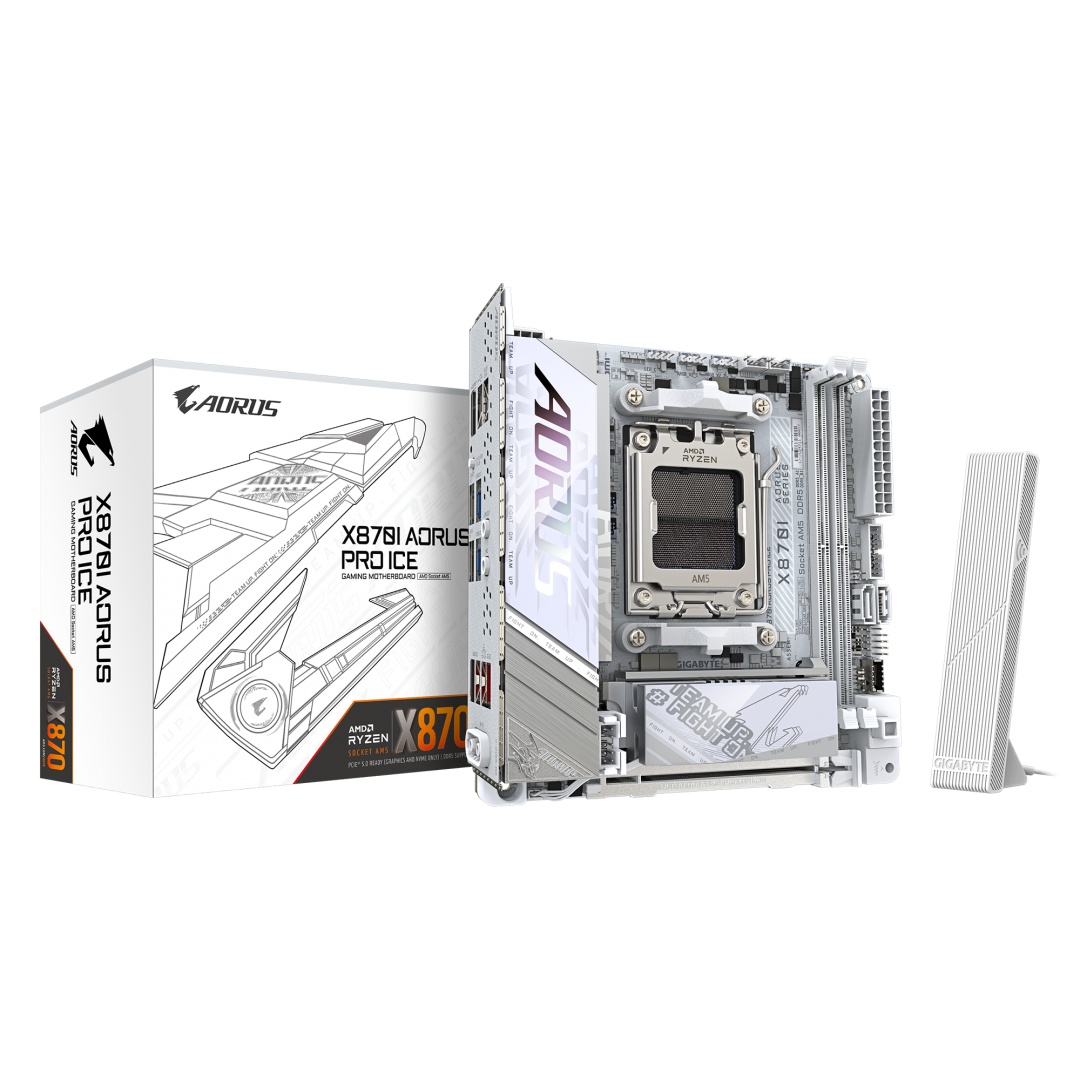

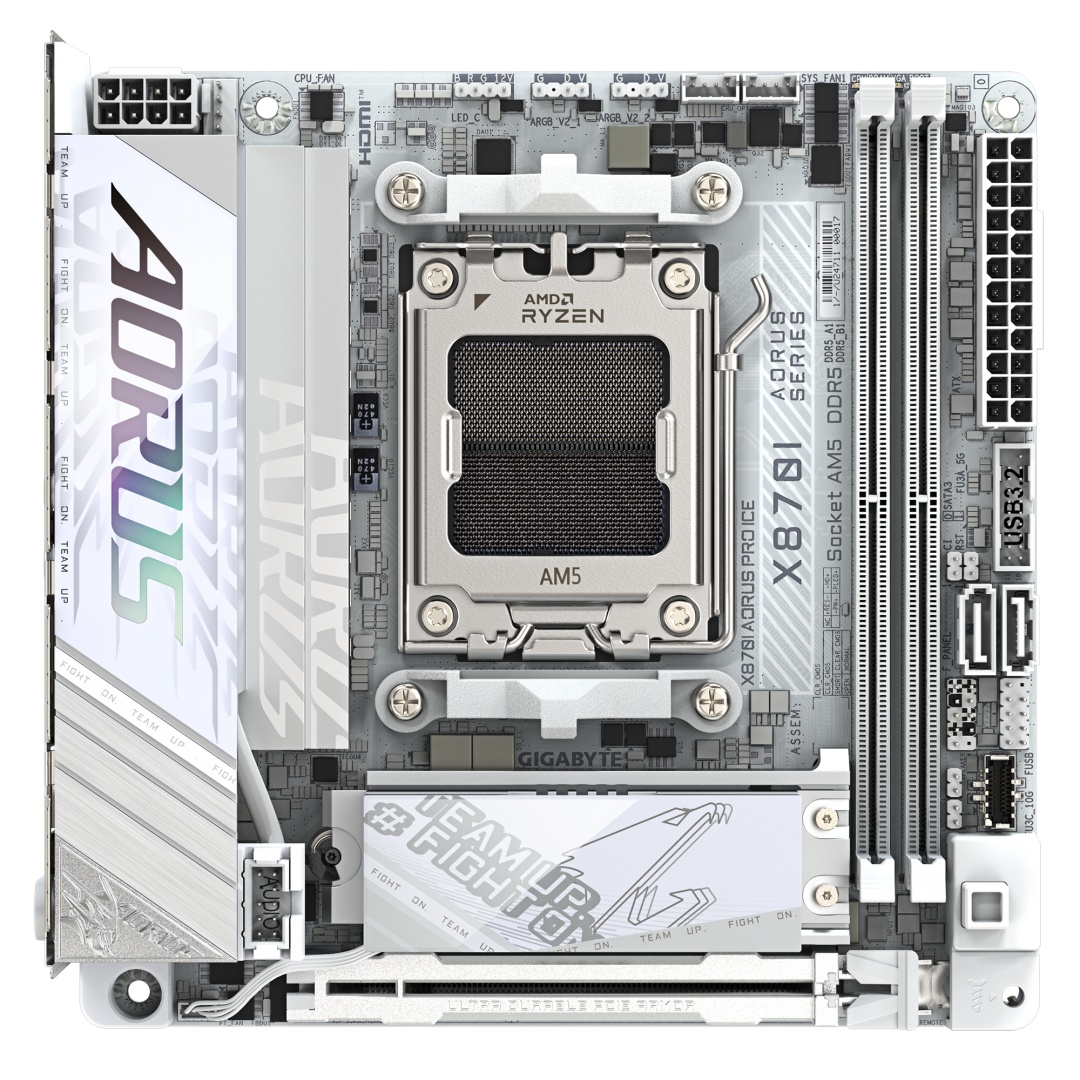

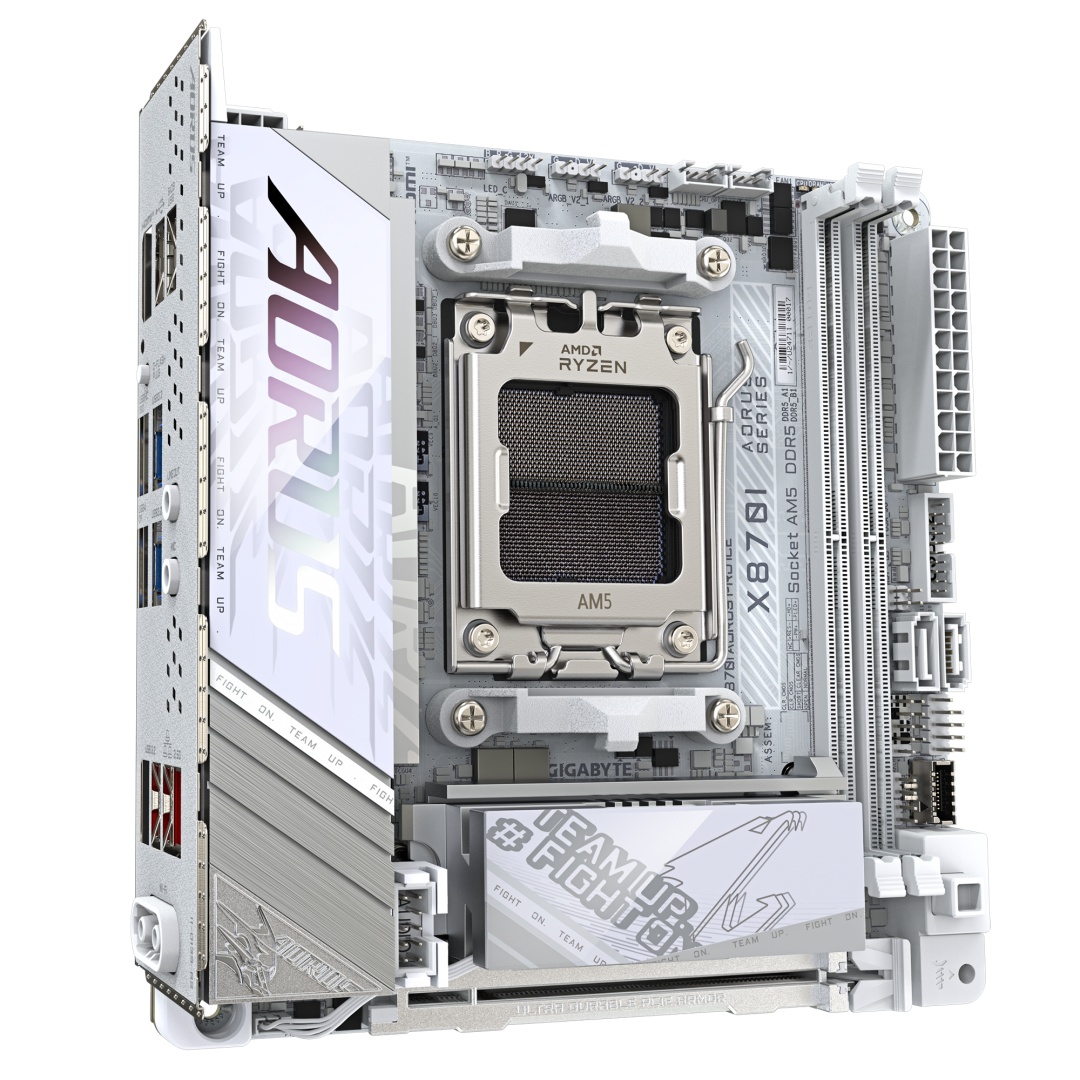

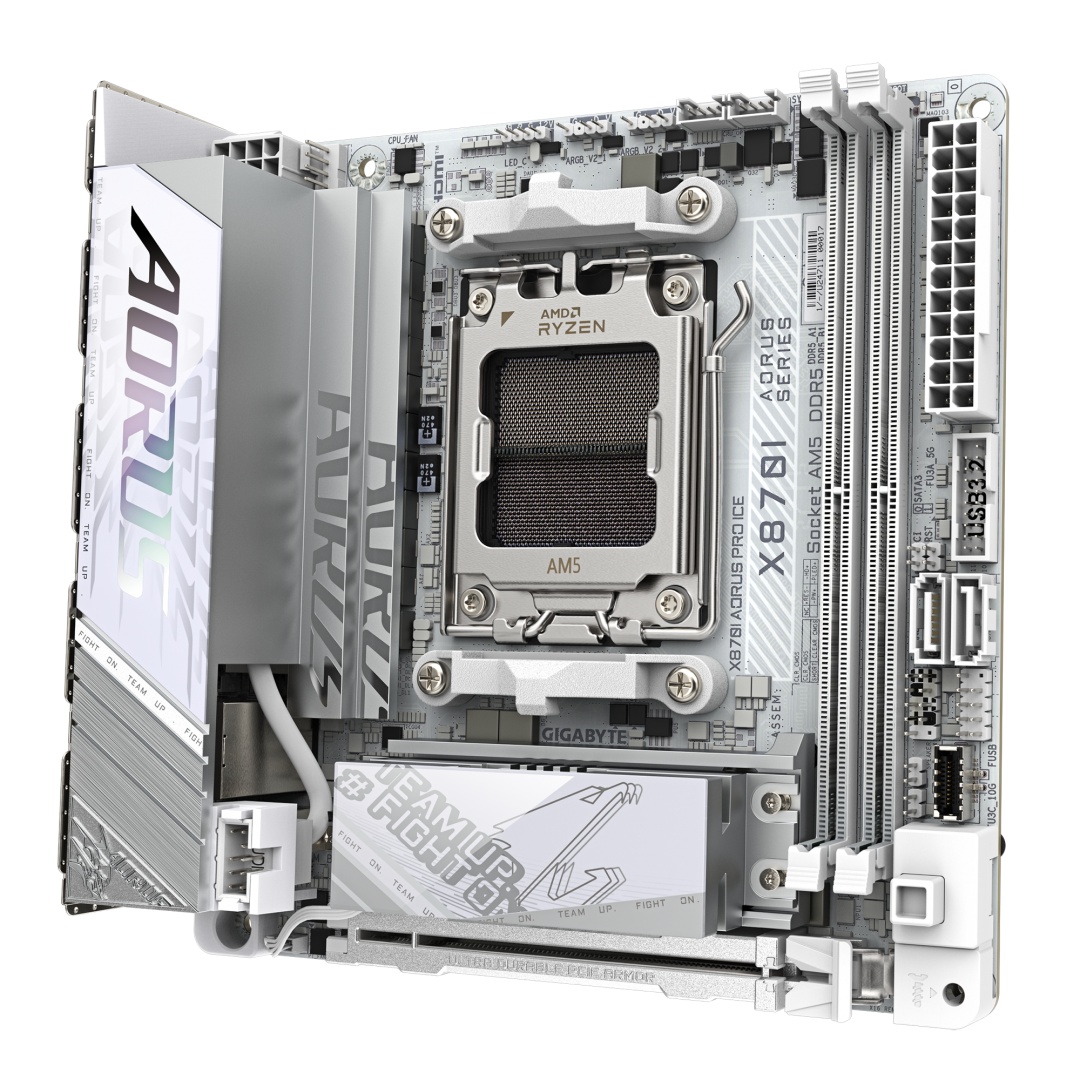

Placa de baza Gigabyte X870I AORUS PRO ICE, Socket AM5, DDR5, Mini-ITX
1.762,99 RON
Costurile de livrare nu sunt incluse
Descriere
Placa de Baza GIGABYTE X870I AORUS PRO ICE AM5, 2x DDR5, 1x USB4 1x HDMI, 1x PCIE x16, 2x M.2, 2x SATA 6GB/s, mini-ITX
Detalii
SKU
X870I AORUS PRO ICE
Categorii
Brand
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
Motherboard form factor
Micro ITX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
1
RGB LED pin header
Yes
Number of RGB LED pin headers
3
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of EPS power connectors (8-pin)
1
Number of chassis fan connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of SATA III connectors
2
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
2
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
Supported memory clock speeds
6400,6200,6000,5600,5200,4800,4400 MHz
Supported memory clock speed (max)
8400 MHz
ECC сompatibility
Non-ECC
LAN controller
Realtek RTL8125
Ethernet interface type
2.5 Gigabit Ethernet
Antenna included
Yes
Batteries included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of HDDs supported
2
Number of storage drives supported
4
PCI Express x1 (Gen 3.x) slots
1
Line-in
Yes
PS/2 ports quantity
1
Chassis intrusion connector
Yes
PCI Express x16 (Gen 5.x) slots
1

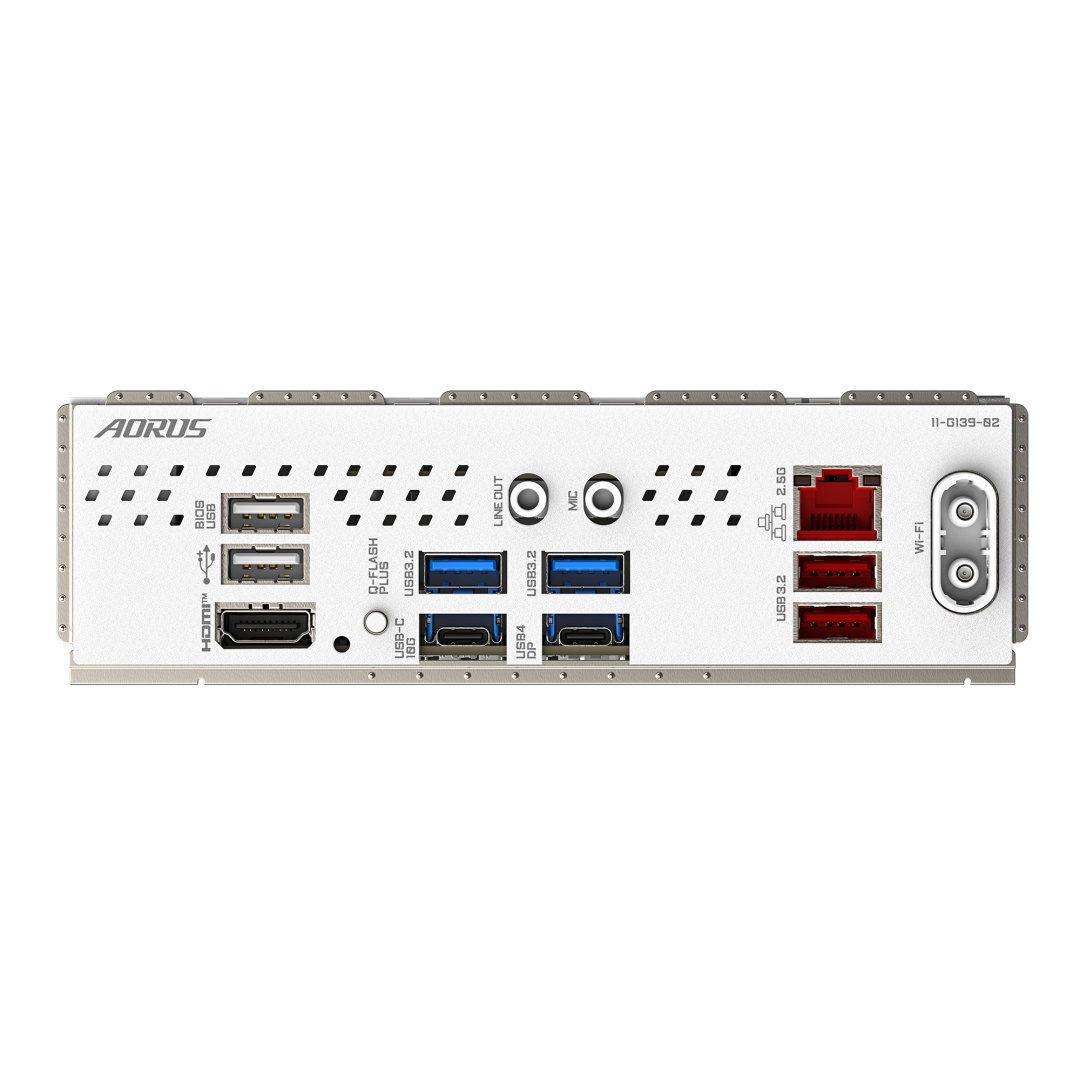

USB4 Gen 2x2 ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
DisplayPort version
1.4
HDCP
Yes
Headphone outputs
1
VGA (D-Sub) ports quantity
0
Windows operating systems supported
Windows 11 x64
Product colour
White
Width
170 mm
Height
35 mm
Package width
235 mm
Package height
95 mm
Weight
1.2 kg
Depth
170 mm
Package weight
1.28 kg
Package depth
227 mm
Country of origin
Taiwan
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
BLUETOOTH
Yes
PCI
0
Serial-or-Paralel
Yes/No
Onboard-CPU
No
Component for
PC
Warranty period
3 year(s)
RAID support
Yes
RAID levels
0, 1
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
Maximum internal memory
128 GB
WLAN controller model
Realtek RTL8922AE
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Number of battery cells
1
Battery weight
3 g
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Motherboard chipset
AMD X870
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Audio Chip
Realtek ALC4080
Supported storage drive interfaces
M.2, SATA III
Wi-Fi
Yes
