Placa de baza Gigabyte B860M D3W

655,99 RON
Costurile de livrare nu sunt incluse
Cod produs - SKU B860M D3W
Adauga la Favorite

Descriere

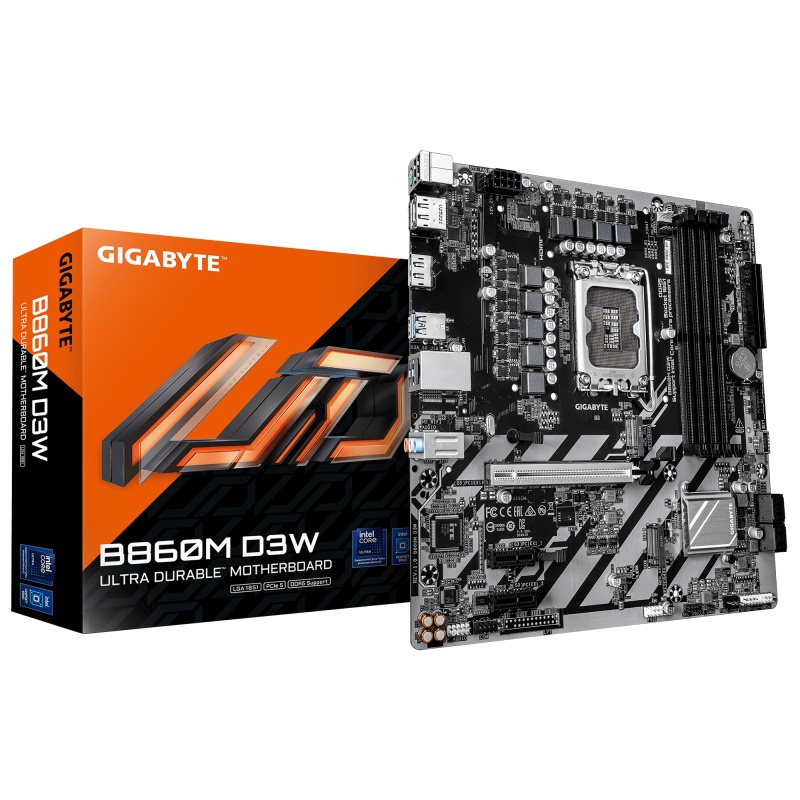

Placa de baza Gigabyte B860M D3W

Detalii

SKU
B860M D3W
Categorii
Placi de baza
Brand
GIGABYTE
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Number of M.2 (M) slots
2
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
Motherboard form factor
micro ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
Intel
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Serial port headers
1
Number of EPS power connectors (8-pin)
1
Number of chassis fan connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
Supported memory clock speeds
5600,6400,9066,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800 MHz
Supported memory clock speed (max)
9066 MHz
ECC сompatibility
ECC & Non-ECC
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Batteries included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
Compatible processor series
Intel Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
6
PCI Express x1 (Gen 3.x) slots
2
Line-in
Yes
PS/2 ports quantity
1
PCI Express x16 (Gen 5.x) slots
1
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
DisplayPort version
2.1
DisplayPorts quantity
2
HDCP
Yes
HDCP version
2.3
Headphone outputs
1
VGA (D-Sub) ports quantity
0
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Product colour
Dark brown
Width
244 mm
Height
35 mm
Package width
265 mm
Package height
54 mm
Weight
1.35 kg
Depth
244 mm
Package weight
1.6 kg
Package depth
265 mm
Country of origin
China
Bundled software
Norton Internet Security (OEM version)
Cooling type
Passive
Component for
PC
Warranty period
3 year(s)
RAID support
Yes
RAID levels
0, 1, 5, 10
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery capacity
220 mAh
Maximum internal memory
256 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Number of battery cells
1
Battery weight
3 g
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
Intel B860
USB 2.0 ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Audio Chip
Realtek ALC897
Supported storage drive interfaces
M.2, SATA III
Wi-Fi
No
