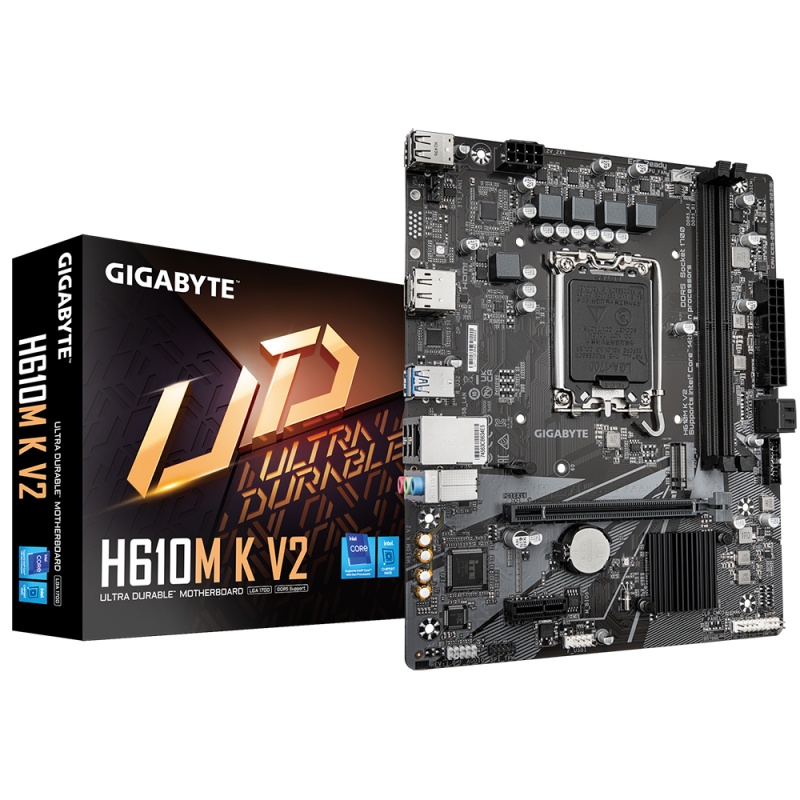

Placa de Baza GIGABYTE H610M K V2 LGA1700, 2x DDR5, 1x HDMI 1x DP, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 1x M.2, 2x SATA 6GB/s, mATX
316,99 RON
Costurile de livrare nu sunt incluse
Descriere
Placa de Baza GIGABYTE H610M K V2 LGA1700, 2x DDR5, 1x HDMI 1x DP, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 1x M.2, 2x SATA 6GB/s, mATX
Detalii
SKU
H610M K V2
Categorii
Brand
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
Clear CMOS jumper
Yes
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
1
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
3.0
Motherboard form factor
micro ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
Intel
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
1
TPM connector
Yes
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
2
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
2
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
Supported memory clock speeds
5600,5200,4800,4400 MHz
Supported memory clock speed (max)
5600 MHz
ECC сompatibility
ECC & Non-ECC
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Batteries included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Supported storage drive types
HDD & SSD
Number of HDDs supported
2
Number of storage drives supported
3
MB-Format
micro-ATX
RAM-Slots
2
MB-Socket
1700
PCI-Ex16
1
USB3
4-8
PCI-Ex1
1
PCI Express x1 (Gen 3.x) slots
1
Line-in
Yes
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
DisplayPort version
1.2
DisplayPorts quantity
1
HDCP
Yes
Headphone outputs
1
VGA (D-Sub) ports quantity
0
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Product colour
Dark brown
Width
226 mm
Height
35 mm
Package width
265 mm
Package height
52 mm
Weight
650 g
Depth
18.5 mm
Package weight
723 g
Package depth
235 mm
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Passive
Component for
PC
Warranty period
3 year(s)
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Maximum internal memory
128 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
HDMI version
2.1
Number of battery cells
1
Battery weight
3 g
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
Intel H610
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Audio Chip
Realtek ALC897
Supported storage drive interfaces
M.2, PCI Express 3.0, SATA III
Wi-Fi
No
