NOU

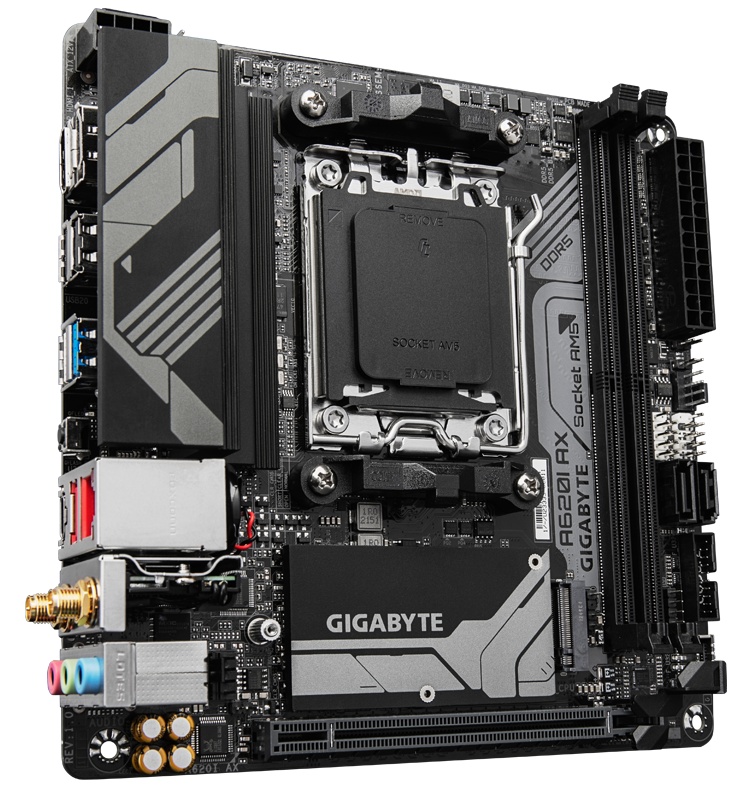

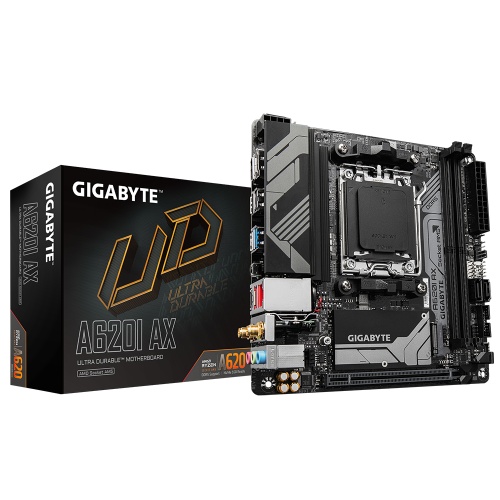

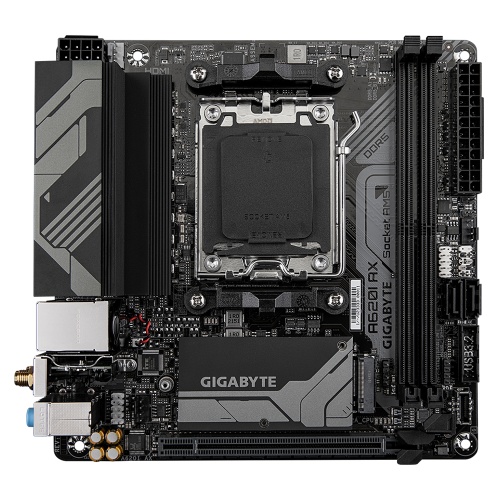

Placa de baza Gigabyte A620I AX, Socket AM5, DDR5, Mini-ITX
687,99 RON
Costurile de livrare nu sunt incluse
Descriere
MB GIGABYTE A620I AX (rev. 1.0) AM5, 2xDDR5, 1x Display Port, 1x HDMI, mini-ITX https://www.gigabyte.com/Motherboard/A620I-AX-rev-10/sp#sp
Detalii
SKU
A620I AX
Categorii
Brand
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Number of M.2 (M) slots
1
Motherboard form factor
mini ITX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
2
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
2
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Supported memory clock speeds
4400,4800,5200,5600,6000,6200,6400 MHz
Supported memory clock speed (max)
6400 MHz
ECC сompatibility
Non-ECC
Ethernet interface type
2.5 Gigabit Ethernet
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of HDDs supported
2
Number of storage drives supported
3
Chassis intrusion connector
Yes
Maximum internal memory supported by processor
96 GB
Total number of SATA connectors
2
PCI Express x16 slots
1
Audio connector
Yes
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
DisplayPort version
1.4
DisplayPorts quantity
1
HDCP
Yes
Headphone outputs
3
VGA (D-Sub) ports quantity
0
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Product colour
Brown
Cables included
SATA
Width
170 mm
Height
35 mm
Package width
222 mm
Package height
65 mm
Depth
170 mm
Package weight
860 g
Package depth
180 mm
Country of origin
China
Bundled software
Norton Internet Security
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Component for
PC
RAID support
Yes
RAID levels
0, 1
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Maximum internal memory
96 GB
WLAN controller model
Realtek RTL8852CE
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
HDMI ports quantity
1
HDMI version
2.1
Number of battery cells
1
Battery weight
3 g
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
AMD A620
USB 2.0 ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB connector type
USB Type-A, USB Type-C
Supported storage drive interfaces
M.2, SATA III
Wi-Fi
Yes
