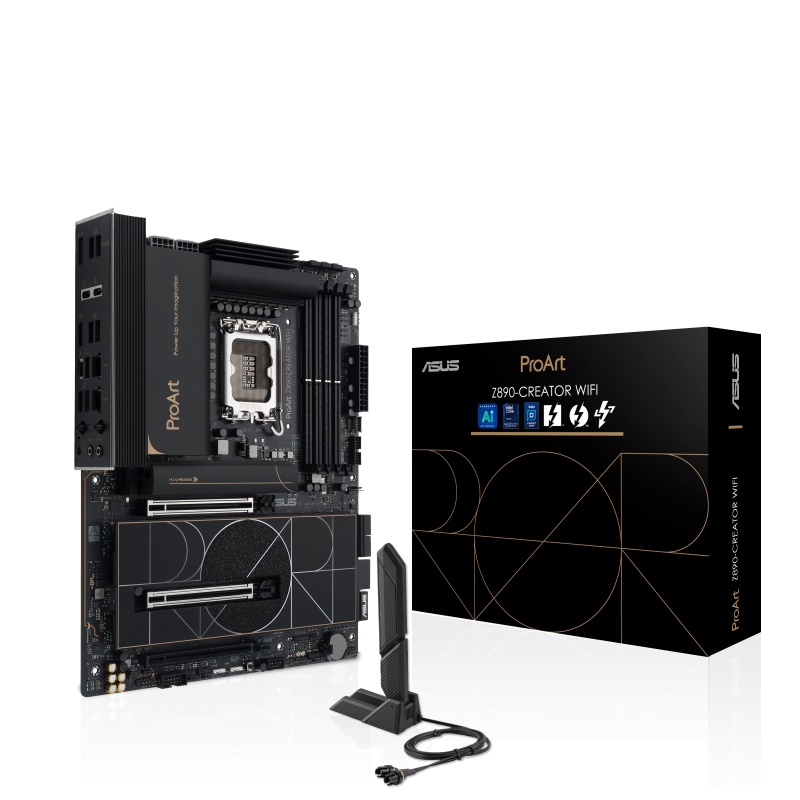

Placa de baza ASUS PROART Z890-CREATOR WIFI, Socket 1851, DDR5, ATX
2.690,99 RON
Costurile de livrare nu sunt incluse
Descriere
Placa de Baza ASUS PROART Z890-CREATOR WIFI LGA1851, 4x DDR5, 1x HDMI 3x Intel Thunderbolt, 2x PCIE 5.0 x16 1x PCIE 4.0 x16, 5x M.2, 4x SATA 6GB/s, ATX
Detalii
SKU
PROART Z890-CREATOR WIFI
Categorii
Brand
Clear CMOS button
Yes
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
5
1st M.2 largest key size
22110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
4.0
Motherboard form factor
ATX
Power source type
ATX
Motherboard chipset family
Intel
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
Maximum resolution
7680 x 4320 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
1
RGB LED pin header
Yes
Number of RGB LED pin headers
3
12V power connector
Yes
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of EPS power connectors (8-pin)
2
Number of chassis fan connectors
5
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Supported memory clock speeds
9066 MHz
Supported memory clock speed (max)
9066 MHz
ECC сompatibility
Non-ECC
Ethernet interface type
2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Antenna included
Yes
DVI-D ports quantity
0
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
Compatible processor series
Intel Core Ultra (Series 2)
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
9
MB-Format
ATX
RAM-Slots
4
MB-Socket
LGA1851
PCI-Ex16
3
USB3
4-8
PCI-Ex1
0
Line-in
Yes
Number of COM connectors
1
Chassis intrusion connector
Yes
Number of SATA II connectors
0
Number of SATA connectors
0
mSATA ports quantity
0
PCI Express x16 (Gen 5.x) slots
2
4th M.2 largest key size
2280
4th M.2 highest PCI Express generation
4.0
Thunderbolt ports quantity
3
Number of temperature sensor headers
1
5th M.2 largest key size
2280
5th M.2 highest PCI Express generation
4.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
6
DisplayPort version
2.1
DisplayPorts quantity
1
Headphone outputs
1
VGA (D-Sub) ports quantity
0
Cables included
SATA
Width
30.5 mm
Package width
356 mm
Package height
244 mm
Weight
1.97 kg
Depth
24.4 mm
Package weight
23.5 kg
Package depth
281 mm
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Component for
PC
RAID support
Yes
RAID levels
0, 1, 5, 10
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
Maximum internal memory
192 GB
On-board graphics card
No
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
2
HDMI version
2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
Intel Z890
USB 2.0 ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Audio Chip
Realtek ALC1220P
Supported storage drive interfaces
M.2, SATA III
Wi-Fi
Yes
