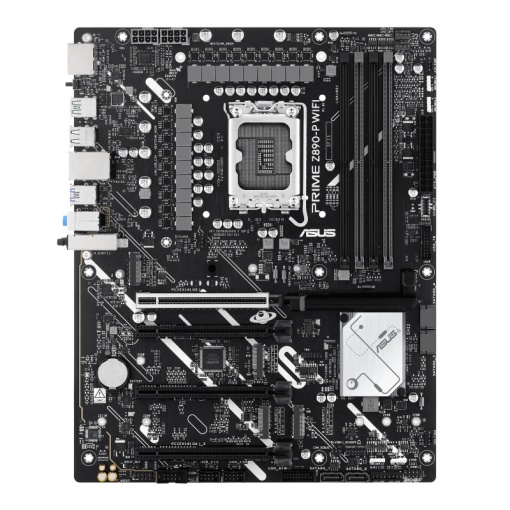

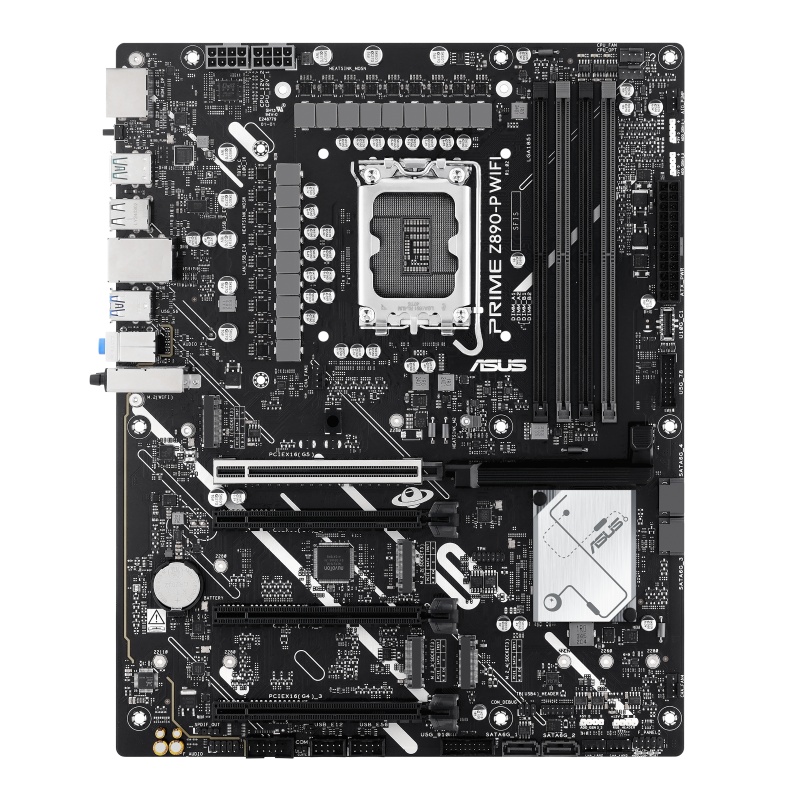

Placa de baza ASUS PRIME Z890-P WIFI, LGA 1851, DDR5, ATX
1.613,99 RON
Costurile de livrare nu sunt incluse
Descriere
Placa de Baza ASUS PRIME Z890-P WIFI LGA1851, 4x DDR5, 1x DP 1x HDMI 1x Intel Thunderbolt, 1x PCIE 5.0 x16 2x PCIE 4.0 x16 1x PCIE 4.0 x16, 4x M.2 4x SATA 6GB/s, ATX
Detalii
SKU
PRIME Z890-P WIFI
Categorii
Brand
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
PCI Express x16 (Gen 4.x) slots
3
Number of M.2 (M) slots
4
Motherboard form factor
ATX
Power source type
ATX
Motherboard chipset family
Intel
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of chassis fan connectors
4
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Supported memory clock speed (max)
7600 MHz
ECC сompatibility
Non-ECC
Ethernet interface type
2.5 Gigabit Ethernet
DVI-D ports quantity
0
Processor socket
LGA 1851 (Socket V1)
Compatible processor series
Intel Core Ultra (Series 2)
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
8
MB-Format
ATX
RAM-Slots
4
MB-Socket
LGA1851
PCI-Ex16
4
USB3
4-8
PCI-Ex1
0
S/PDIF out connector
Yes
Line-in
Yes
Number of COM connectors
1
Thunderbolt headers
1
PCI Express x16 (Gen 5.x) slots
1
Quick installation guide
Yes
Back-to-BIOS button
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
DisplayPort version
1.4
DisplayPorts quantity
1
Headphone outputs
1
VGA (D-Sub) ports quantity
0
Windows operating systems supported
Windows 10, Windows 11
Cables included
SATA
Width
30.5 mm
Package width
353 mm
Package height
68 mm
Depth
24.4 mm
Package weight
1.89 kg
Package depth
273 mm
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Passive
Component for
PC
RAID support
Yes
RAID levels
0, 1, 5, 10
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
Maximum internal memory
192 GB
On-board graphics card
No
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
HDMI version
2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Motherboard chipset
Intel Z890
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Supported storage drive interfaces
M.2, SATA III
Wi-Fi
Yes
