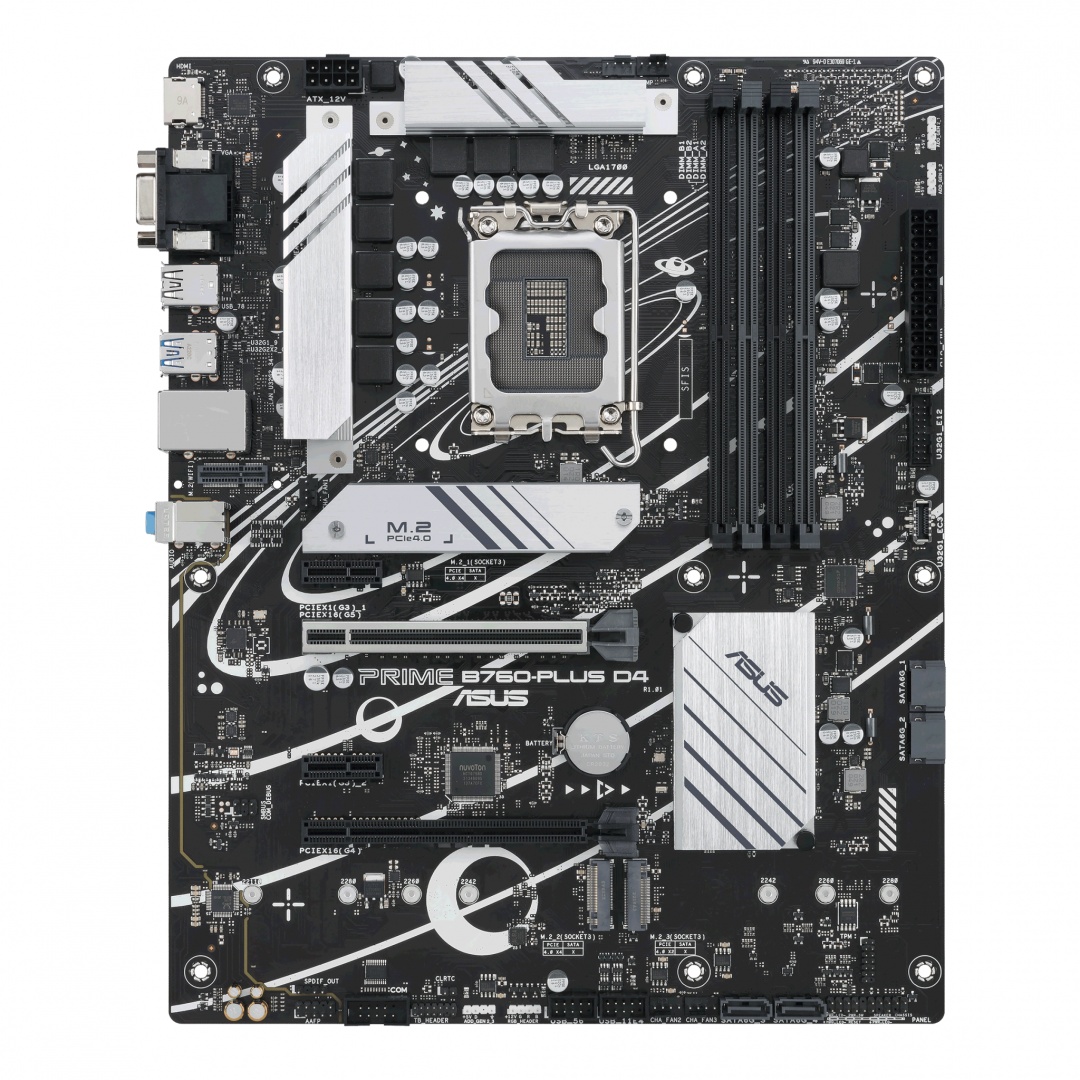

  • Placa de baza ASUS PRIME B760-PLUS D4, Socket 1700, DDR4, ATX - Img 1

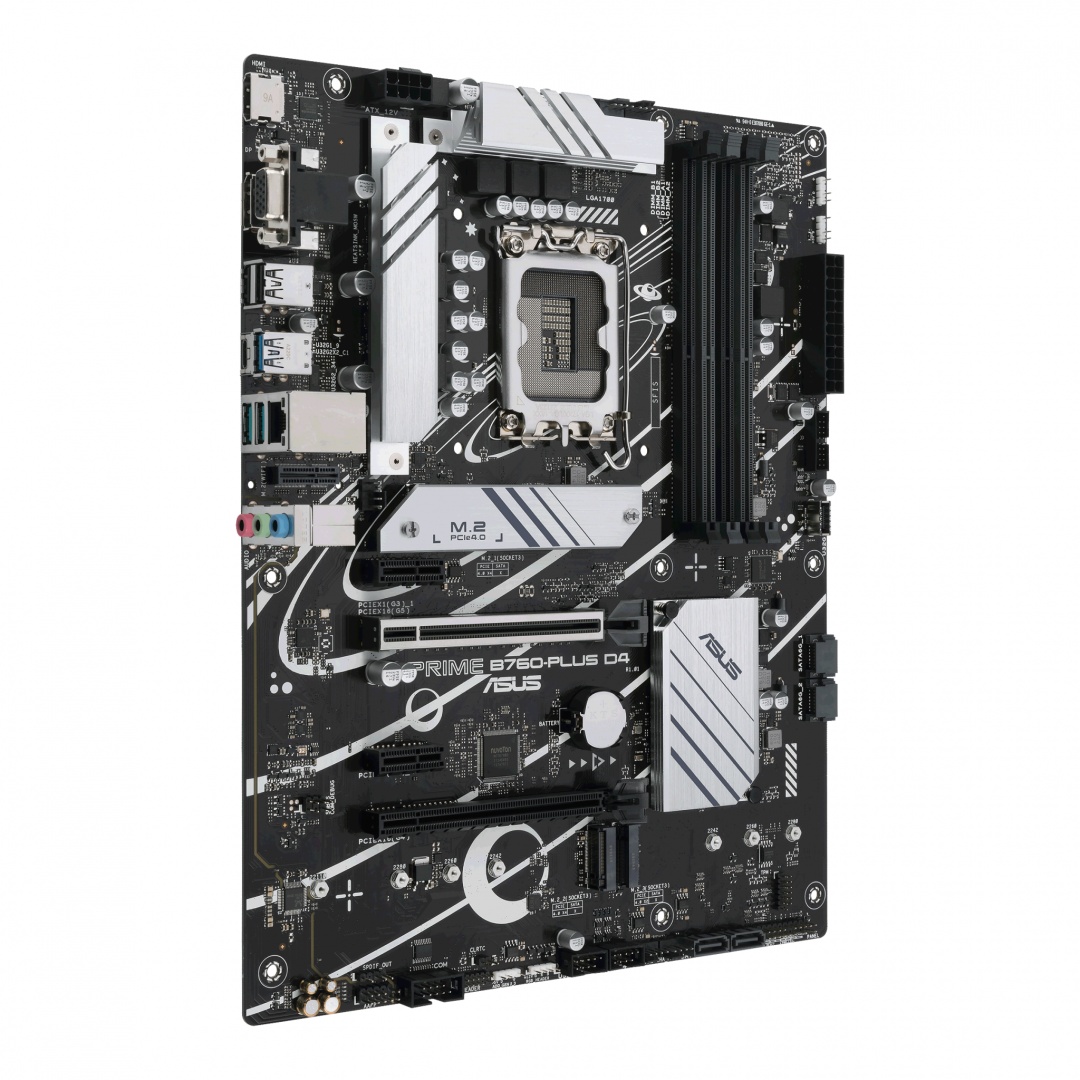

  • Placa de baza ASUS PRIME B760-PLUS D4, Socket 1700, DDR4, ATX - Img 2

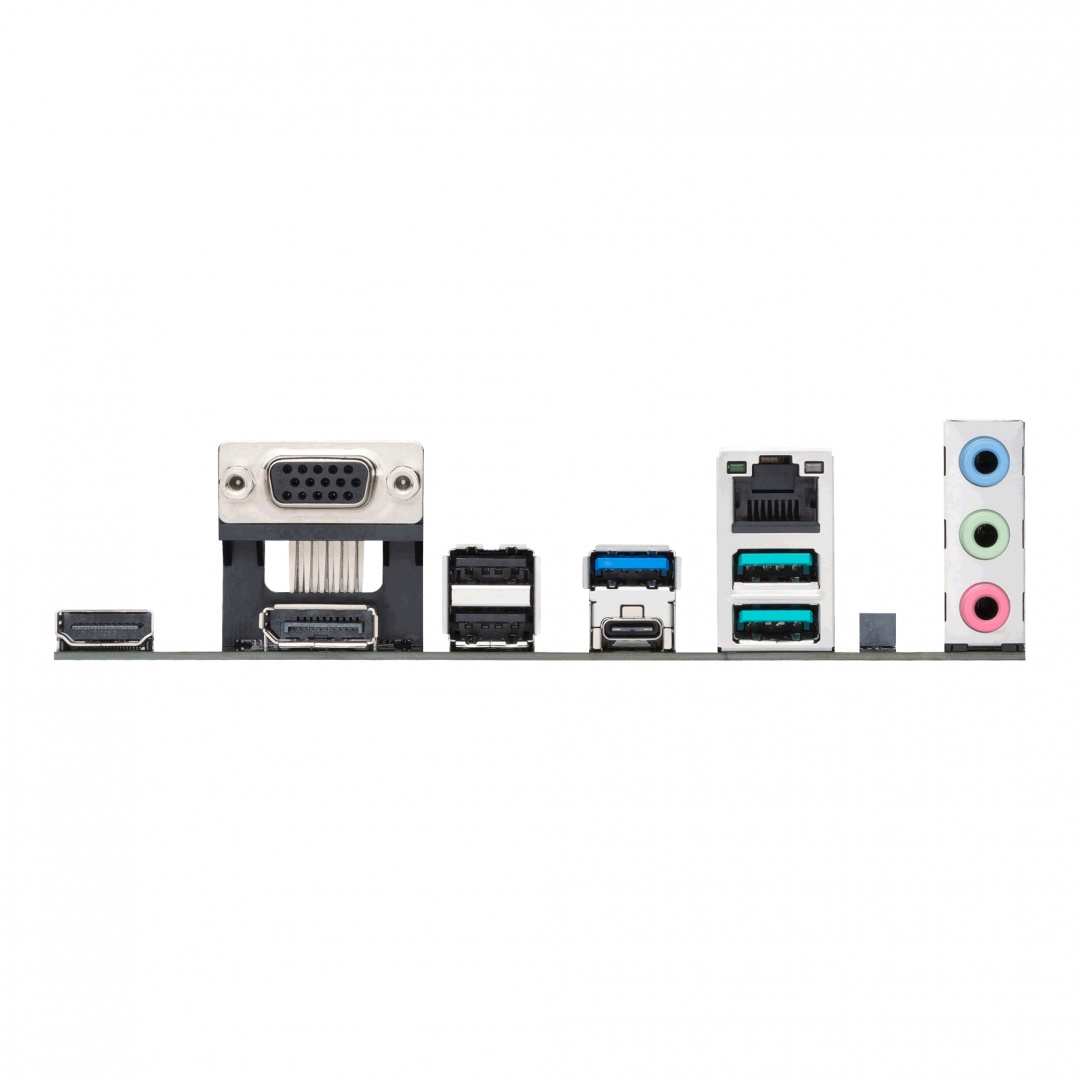

  • Placa de baza ASUS PRIME B760-PLUS D4, Socket 1700, DDR4, ATX - Img 3

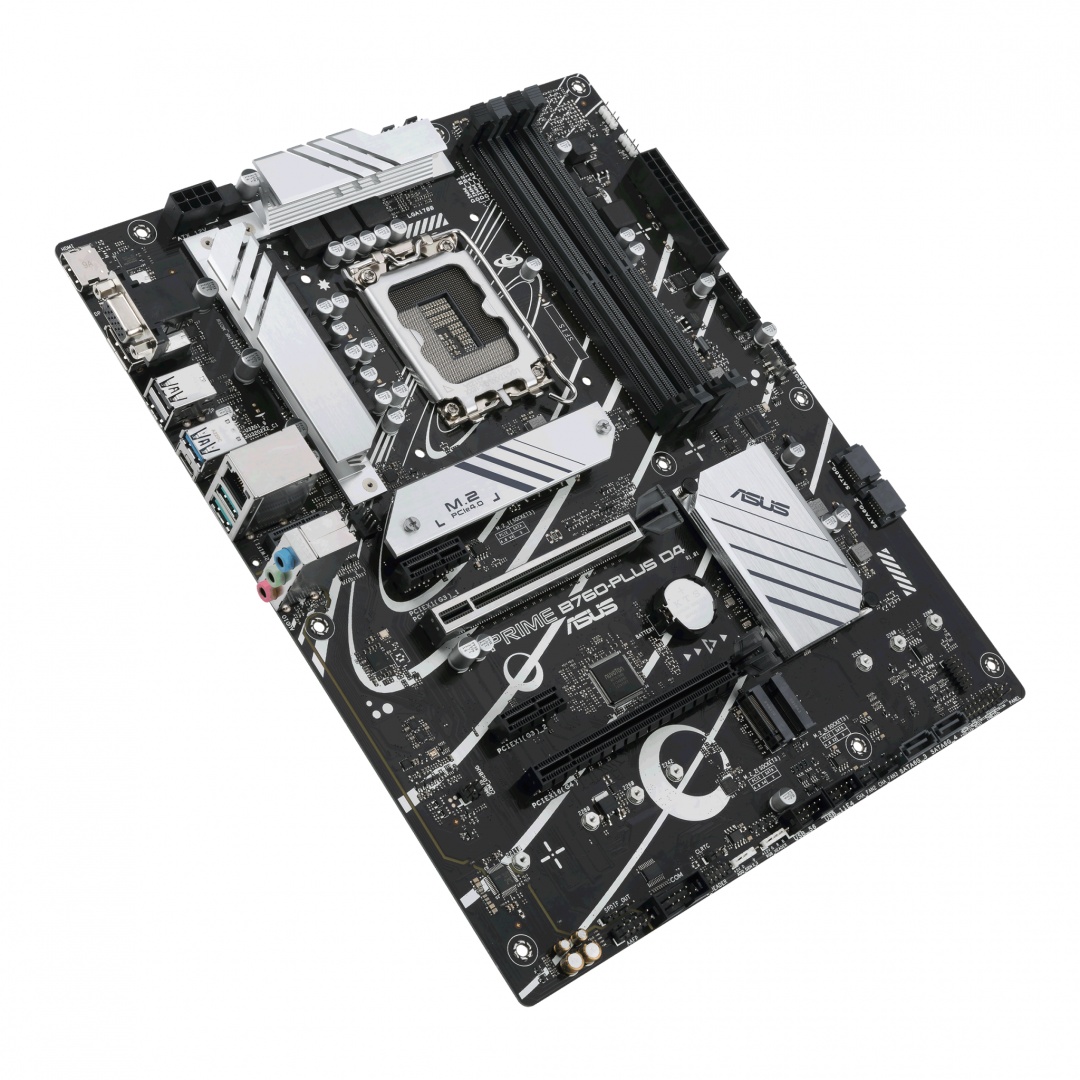

  • Placa de baza ASUS PRIME B760-PLUS D4, Socket 1700, DDR4, ATX - Img 4

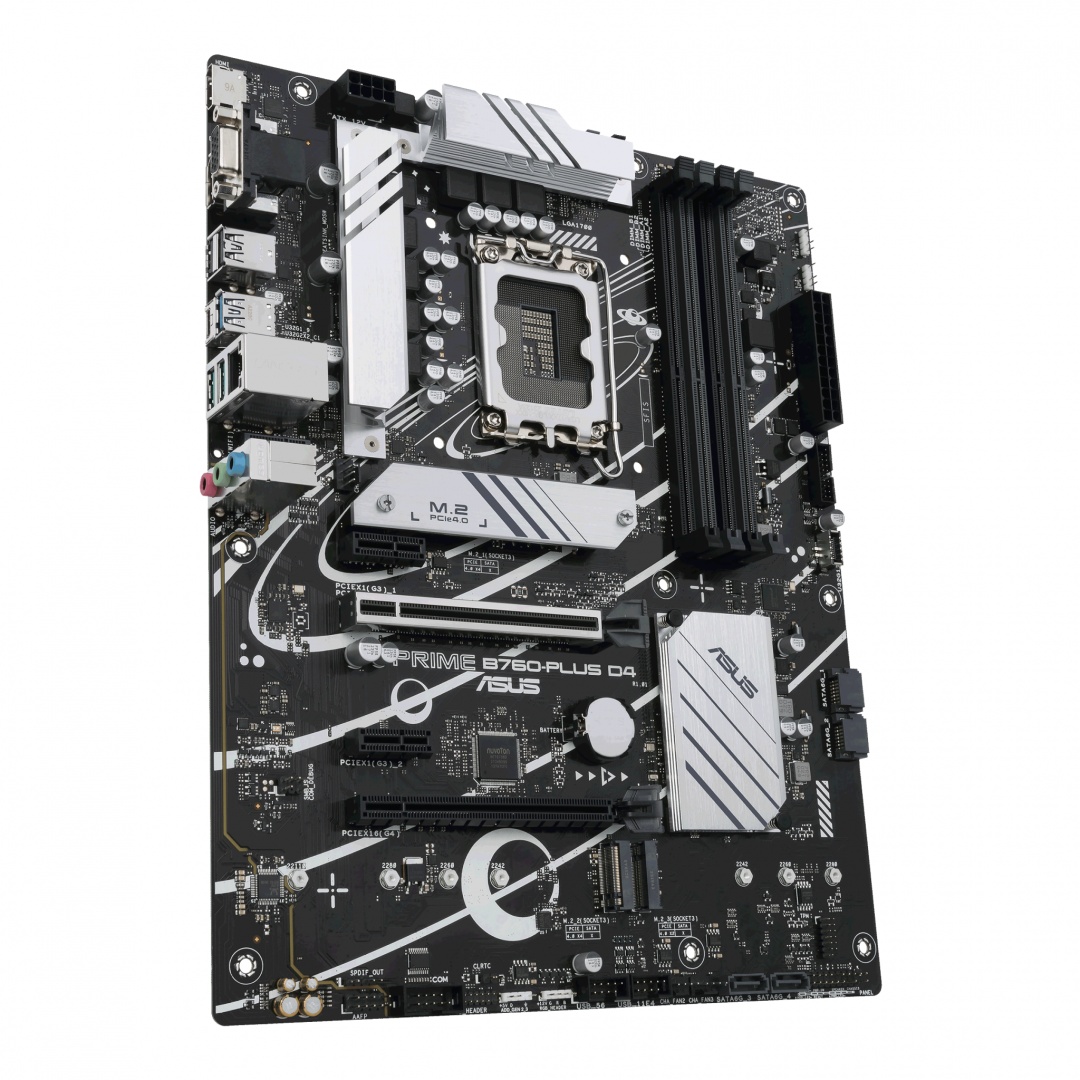

  • Placa de baza ASUS PRIME B760-PLUS D4, Socket 1700, DDR4, ATX - Img 5
  • Placa de baza ASUS PRIME B760-PLUS D4, Socket 1700, DDR4, ATX - Img 6

Placa de baza ASUS PRIME B760-PLUS D4, Socket 1700, DDR4, ATX

602,99 RON
Costurile de livrare nu sunt incluse
Cod produs - SKU PRIME B760-PLUS D4
Adauga la Favorite

Descriere

Placa de baza ASUS PRIME B760-PLUS D4 LGA 1700 Model PRIME B760-PLUS D4 CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B760 Chipset Memory 4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400 (OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333 (OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. Graphics 1 x DisplayPort** 1 x VGA port 1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI® 2.1. Expansion Slots Intel® 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb Ethernet

Detalii

SKU
PRIME B760-PLUS D4
Categorii
Placi de baza
Brand
ASUS
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
3
Motherboard form factor
ATX
Power source type
ATX
Motherboard chipset family
Intel
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of chassis fan connectors
3
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR4-SDRAM
Supported memory clock speeds
5066,5000,4800,4600,4400,4266,4000,3733,3600,3466,3400,3333,3200,3000,2933,2800,2666,2400,2133 MHz
Supported memory clock speed (max)
5066 MHz
ECC сompatibility
Non-ECC
Ethernet interface type
2.5 Gigabit Ethernet
DVI-D ports quantity
0
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
7
PCI Express x1 (Gen 3.x) slots
2
S/PDIF out connector
Yes
Line-in
Yes
Maximum number of SMP processors
1
Number of COM connectors
1
Thunderbolt headers
1
PCI Express x16 (Gen 5.x) slots
1
Peripheral (Molex) power connectors (4-pin)
1
Number of M.2 (E) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
DisplayPort version
1.4
DisplayPorts quantity
1
Headphone outputs
1
VGA (D-Sub) ports quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
Windows operating systems supported
Windows 10, Windows 11
Cables included
SATA
Width
30.5 mm
Package width
328 mm
Package height
53 mm
Depth
24.4 mm
Package weight
11.6 kg
Package depth
266 mm
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Passive
Component for
PC
RAID support
Yes
RAID levels
0, 1, 5, 10
User guide
Yes
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
Maximum internal memory
128 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
Intel B760
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Supported storage drive interfaces
M.2, SATA III
Wi-Fi
No
