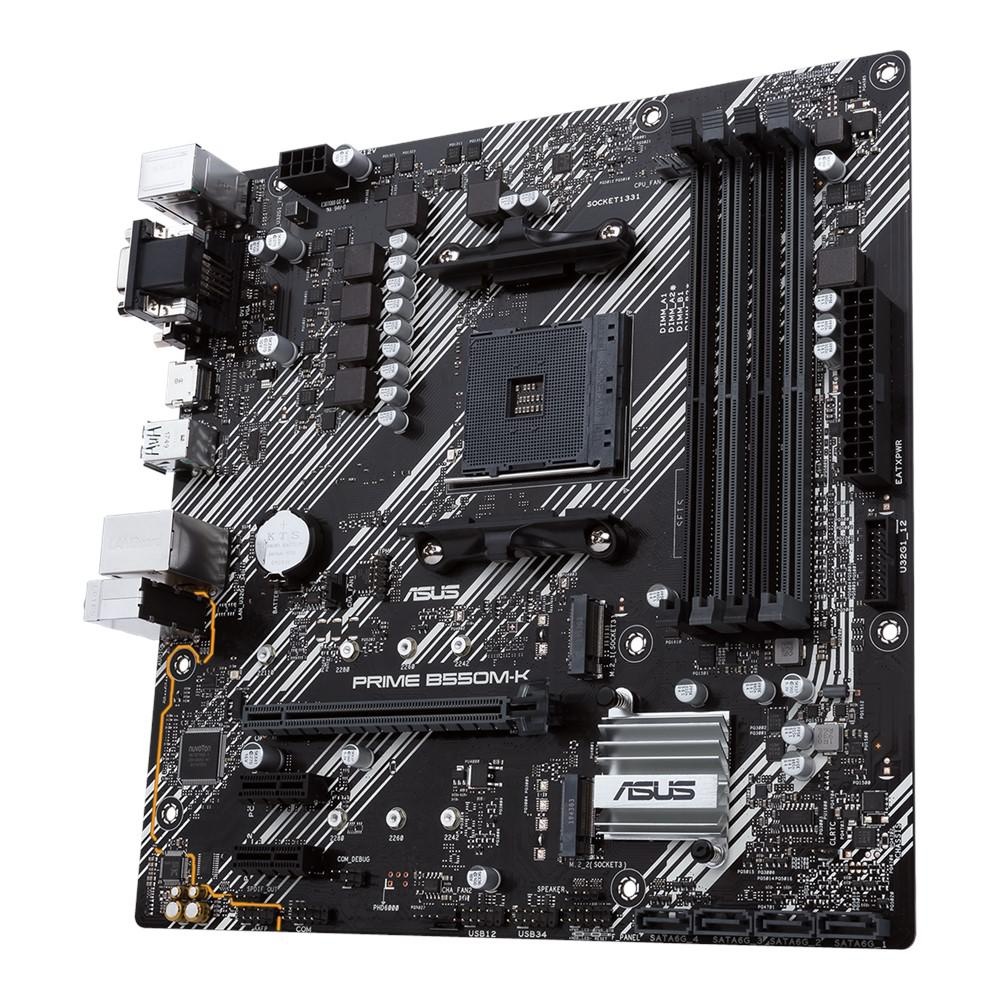

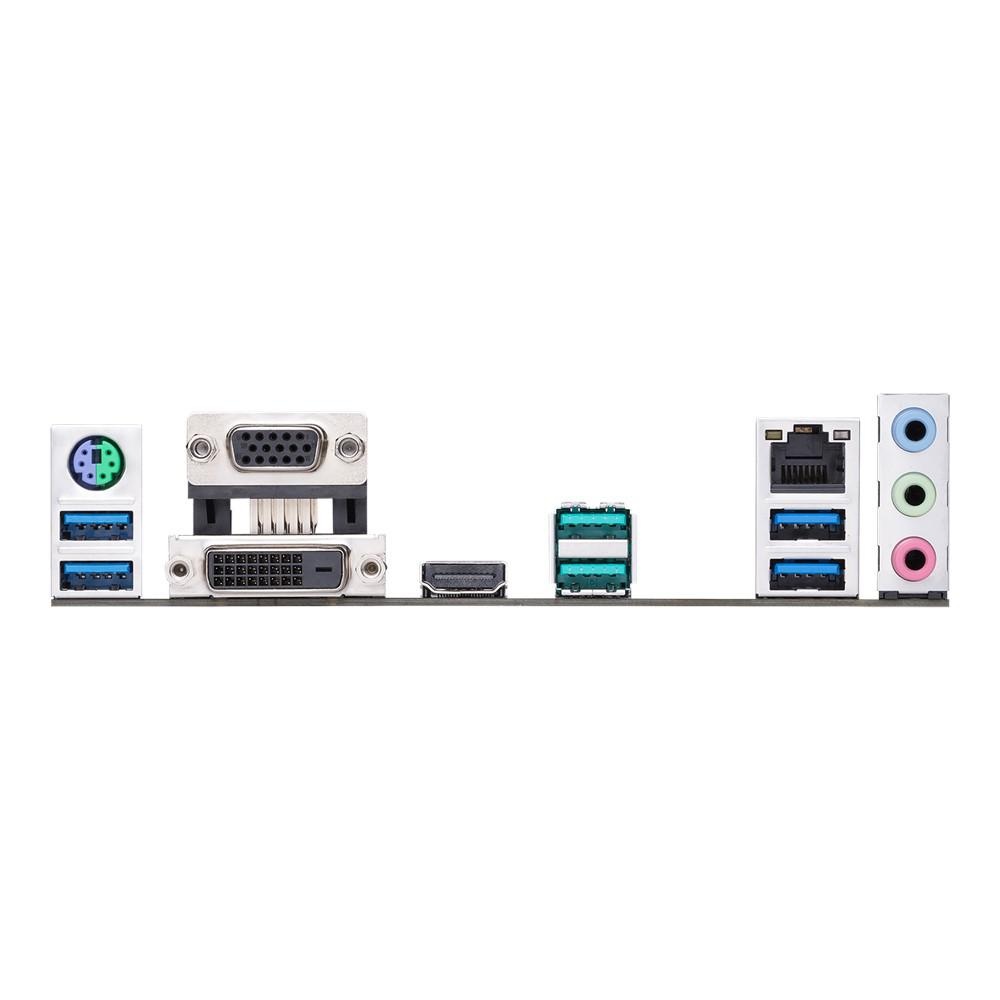

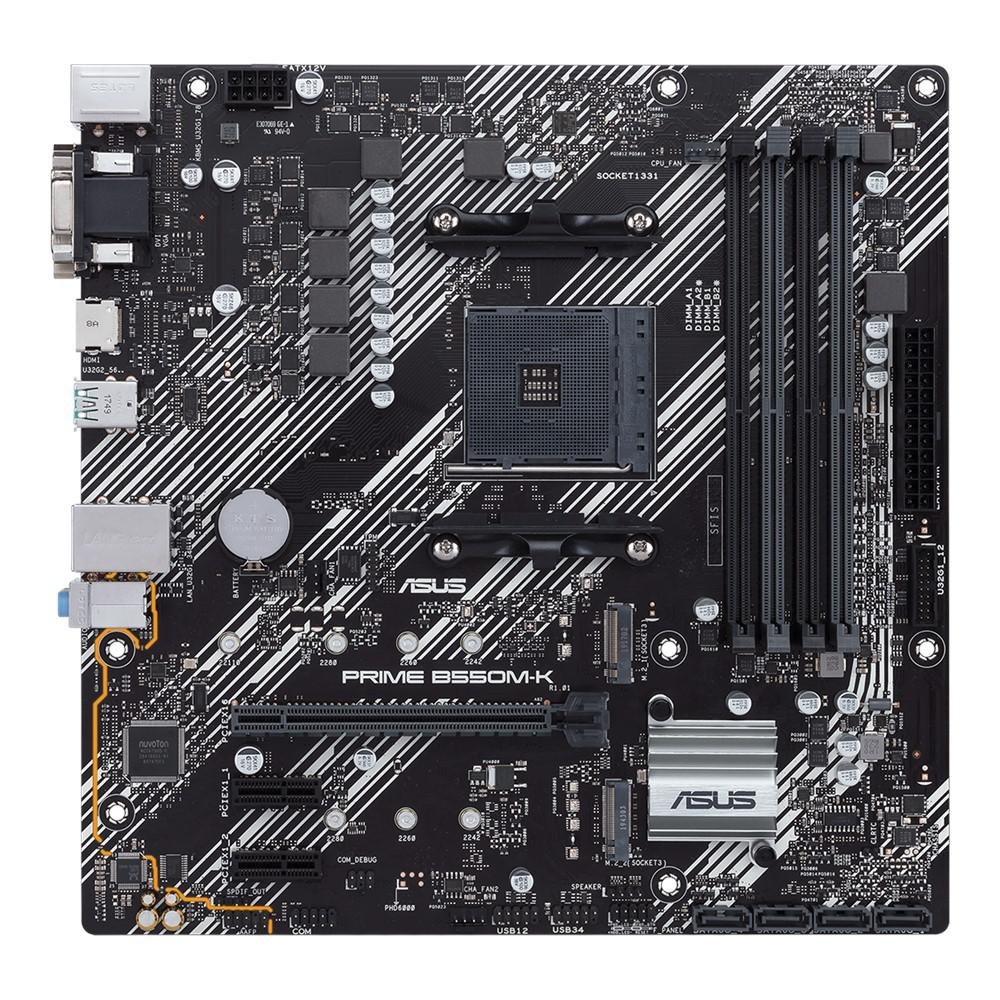

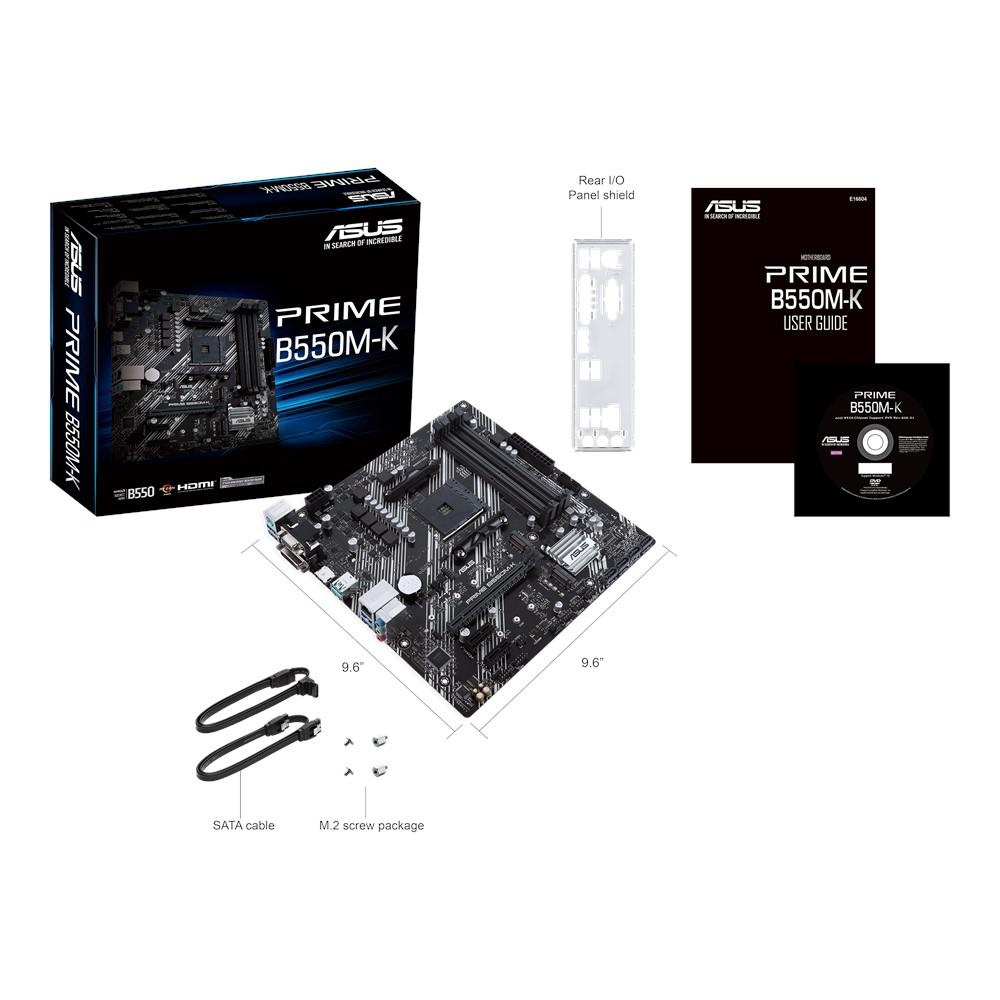

Placa de baza ASUS PRIME B550M-K, Socket AM4, DDR4, Micro-ATX

740,99 RON
Costurile de livrare nu sunt incluse
Cod produs - SKU PRIME B550M-K
Adauga la Favorite

Descriere

Placa de baza Asus PRIME B550M-K Socket LGA AM4 CPU Build in AMD AM4 Socket for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors * * Refer to www.asus.com for CPU support list Chipset AMD B550 Memory 3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133 (O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333 (O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400 (O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600 (O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un- buffered Memory * Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic 1 x D-Sub 1 x DVI-D 1 x HDMI 2.1(4K@60HZ) *Graphics specifications may vary between CPU types. Expansion Slots 3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 2 x PCIe 3.0 x1 Storage Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 LAN Realtek RTL8111H 1Gb Ethernet ASUS LANGuard Audio Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC * - Supports : Jack-detection, Multi-streaming, Front Panel Jack- retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors * Choose the chassis with HD audio module in front panel to support 8- channel audio output. https://www.asus.com/Motherboards/PRIME-B550M-K/specifications/

Detalii

SKU
PRIME B550M-K
Categorii
Placi de baza
Brand
ASUS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
Motherboard form factor
micro ATX
Motherboard chipset family
AMD
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
ATX Power connector (24-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Supported memory clock speeds
2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz
LAN controller
Realtek RTL8111H
DVI-D ports quantity
1
Processor socket
Socket AM4
Compatible processor series
AMD Ryzen 3000 Series
PCI Express x1 (Gen 3.x) slots
2
PS/2 ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Windows operating systems supported
Windows 10
Width
244 mm
Weight
785 g
Depth
24.4 mm
PCI
0
Serial-or-Paralel
No/No
Harmonized System (HS) code
84733020
CPU încorporat
No
Ethernet LAN
Yes
Processor manufacturer
AMD
Maximum internal memory
128 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
HDMI ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
AMD B550
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Supported storage drive interfaces
M.2, SATA
Wi-Fi
No
