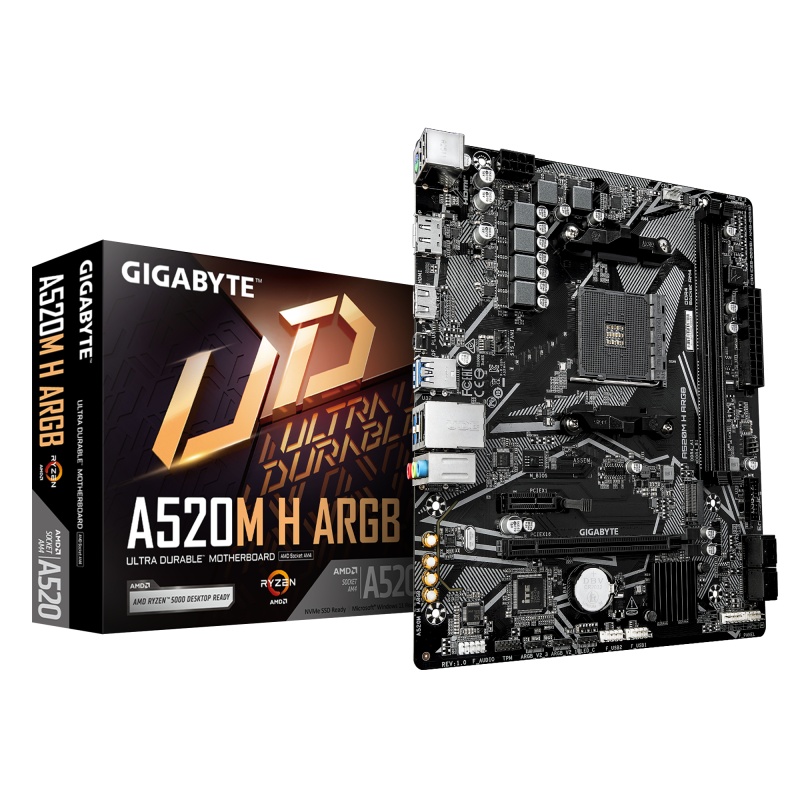

GIGABYTE A520M H ARGB. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series, AMD Ryzen PRO 3000 Series,.... Supported memory types: DDR4-SDRAM, Maximum
370,99 RON
Costurile de livrare nu sunt incluse
Descriere
GIGABYTE A520M H ARGB. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series, AMD Ryzen PRO 3000 Series,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Detalii
SKU
A520M H ARGB
Categorii
Brand
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
Clear CMOS jumper
Yes
Number of M.2 (M) slots
1
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
3.0
PCI Express x16 (Gen 3.x) slots
1
Motherboard form factor
micro ATX
PC health monitoring
Fan, Temperature, Voltage
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
5120 x 2880 pixels
Front panel connector
Yes
Number of CPU fan connectors
1
TPM connector
Yes
RGB LED pin header
Yes
Number of RGB LED pin headers
4
12V power connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of EPS power connectors (8-pin)
1
Number of chassis fan connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
2
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR4-SDRAM
Maximum internal memory per slot
32 GB
Supported memory clock speeds
2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100 MHz
Supported memory clock speed (max)
5100 MHz
ECC сompatibility
ECC & Non-ECC
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Batteries included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM4
Supported processor sockets
Socket AM4
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
5
PCI Express x1 (Gen 3.x) slots
1
Line-in
Yes
PS/2 ports quantity
1
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
DisplayPort version
1.4
DisplayPorts quantity
1
HDCP
Yes
HDCP version
2.3
Headphone outputs
1
VGA (D-Sub) ports quantity
0
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Product colour
Dark brown
Width
233 mm
Height
35 mm
Package width
265 mm
Package height
52 mm
Weight
700 g
Depth
198 mm
Package weight
772 g
Package depth
235 mm
Country of origin
China
Bundled software
Norton Internet Security (OEM version)
Cooling type
Passive
Component for
PC
Warranty period
3 year(s)
RAID support
Yes
RAID levels
0, 1, 10
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery capacity
220 mAh
Maximum internal memory
64 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Number of battery cells
1
Battery weight
3 g
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
AMD A520
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Audio Chip
Realtek ALC897
Supported storage drive interfaces
M.2, PCI Express 3.0, SATA III
Wi-Fi
No
