NOU

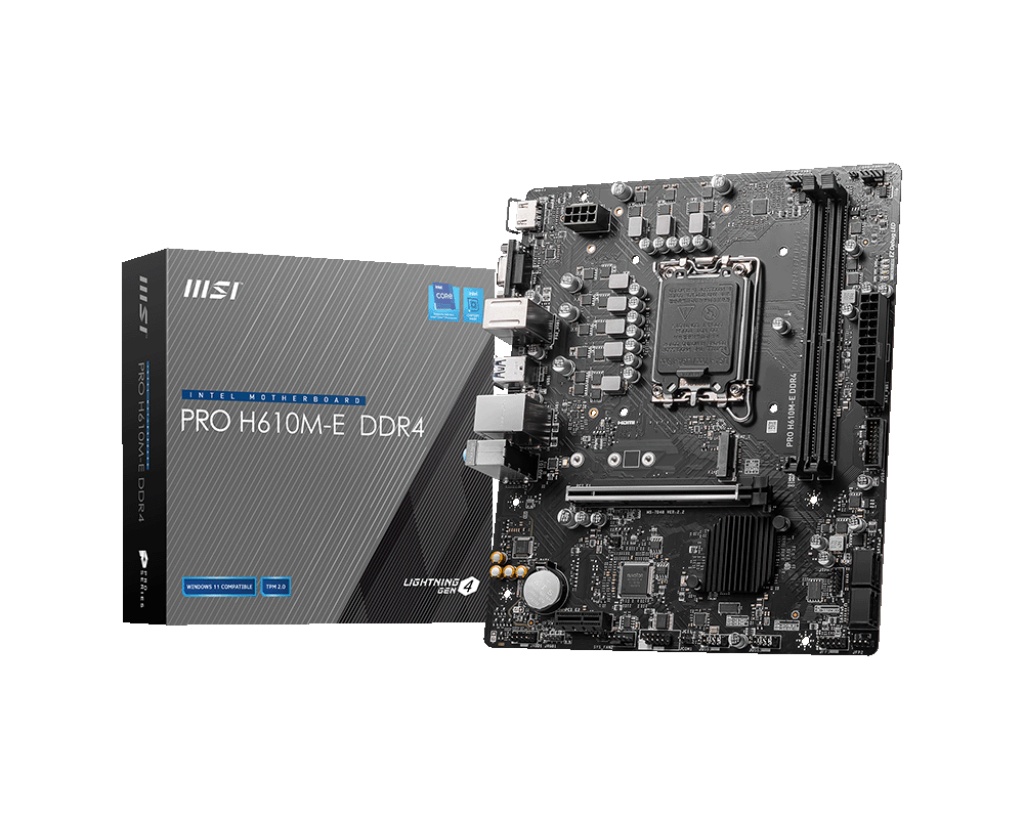

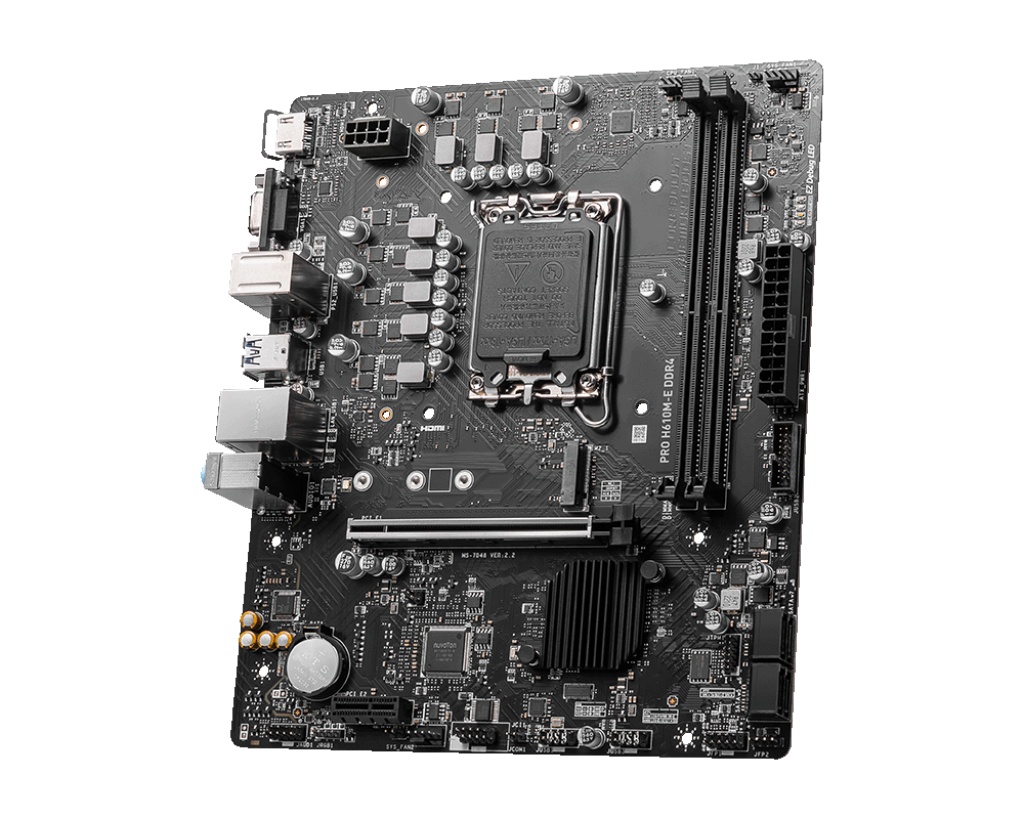

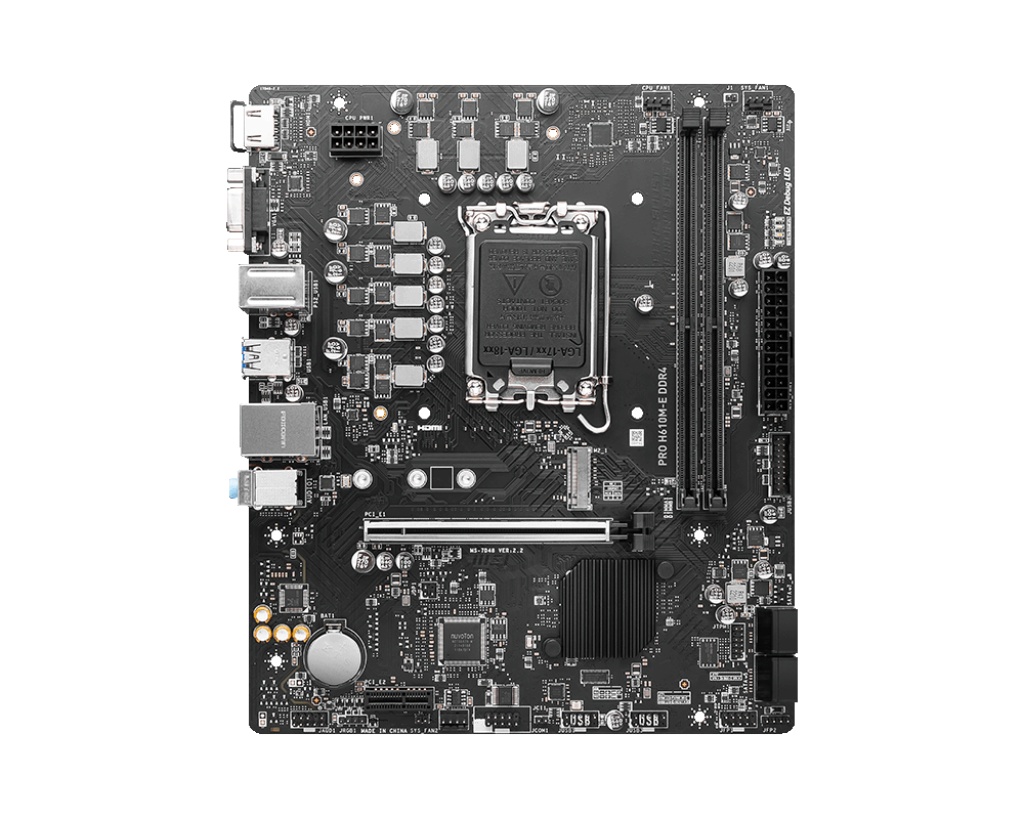

Placa de baza MSI PRO H610M-E DDR4, Socket 1700, DDR4, Micro-ATX
343,99 RON
Costurile de livrare nu sunt incluse
Descriere

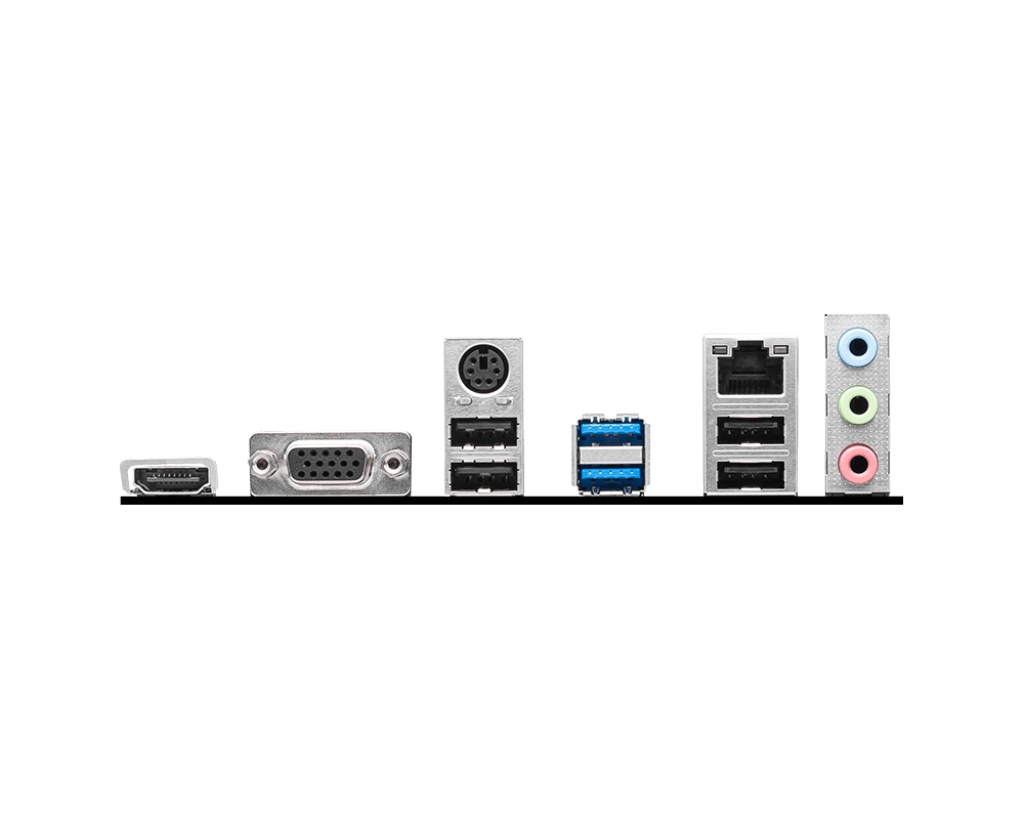

Placa de baza MSI PRO H610M-E LGA1700 DDR4 SPECIFICATIONS Model Name PRO H610M-E DDR4 CPU Support Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® H610 Chipset Graphics Interface 1x PCIe 4.0 x16 slot Display Interface Support 4K@60Hz as specified in HDMI 1.4, VGA – Requires Processor Graphics Memory Support 2 DIMMs, Dual Channel DDR4-3200 MHz (MAX) Expansion Slots 1x PCIe 3.0 x1 slot Storage 1x M.2 Gen3 x4 32Gbps slot, 4x SATA 6Gbps ports USB ports 4x USB 3.2 Gen 1 5Gbps (4 Type-A) 8x USB 2.0 LAN Realtek® RTL8111H Gigabit LAN Audio 8-Channel (7.1) HD Audio with Audio Boost
Detalii
SKU
PRO H610M-E DDR4
Categorii
Brand
System Management BIOS (SMBIOS) version
3.4
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
TPM connector
Yes
12V power connector
Yes
USB 2.0 connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of chassis fan connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Supported memory clock speeds
2133,2666,2933,3000,3200 MHz
Supported memory clock speed (max)
3200 MHz
Ethernet interface type
Gigabit Ethernet
DVI-D ports quantity
0
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Compatible processor series
Intel Core™ i9
Supported storage drive types
HDD & SSD
Maximum number of SMP processors
1
Drivers included
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
VGA (D-Sub) ports quantity
1
Cables included
SATA
Height
65 mm
Weight
760 g
PCI
1
Serial-or-Paralel
Yes/No
Onboard-CPU
No
Component for
PC
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
Maximum internal memory
64 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
HDMI version
2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
Intel H610
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Audio Chip
Realtek ALC897
Supported storage drive interfaces
M.2, SATA III
Wi-Fi
No
