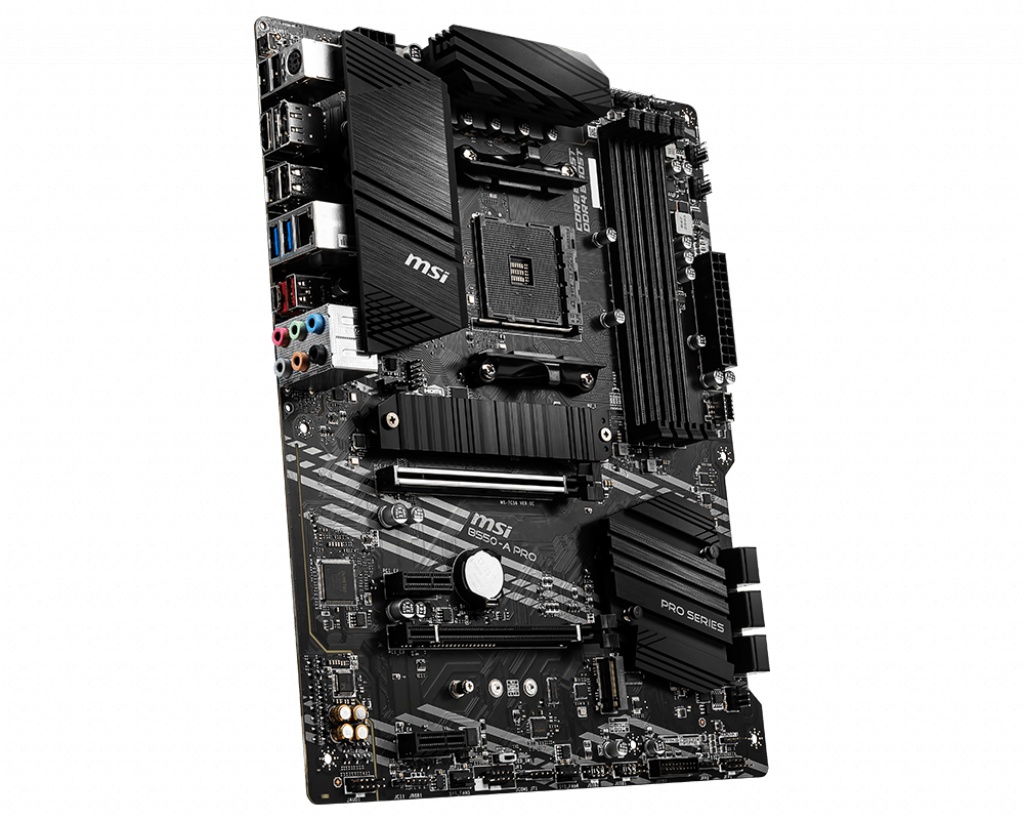

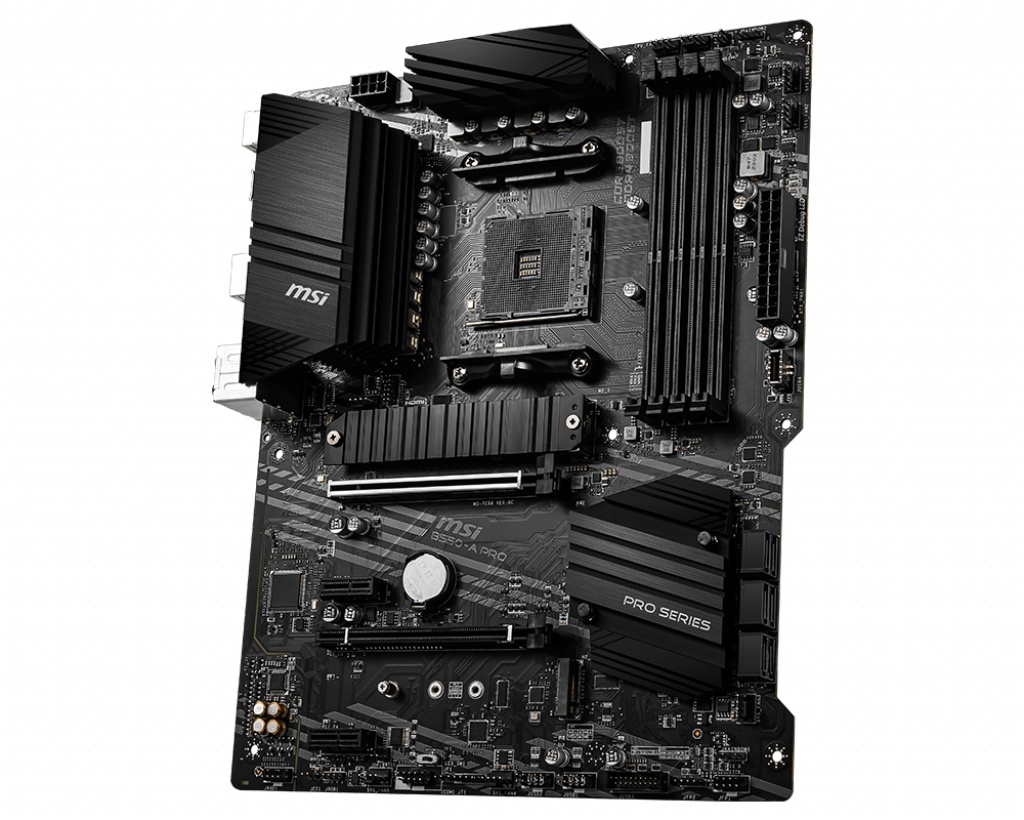

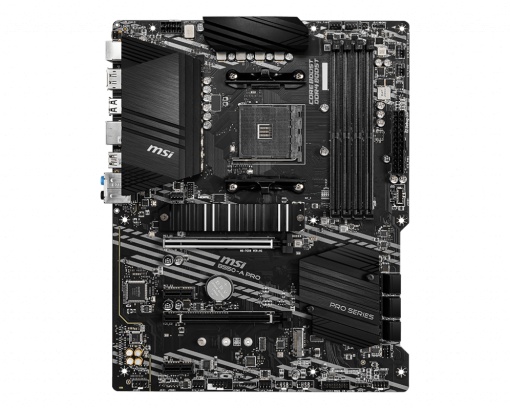

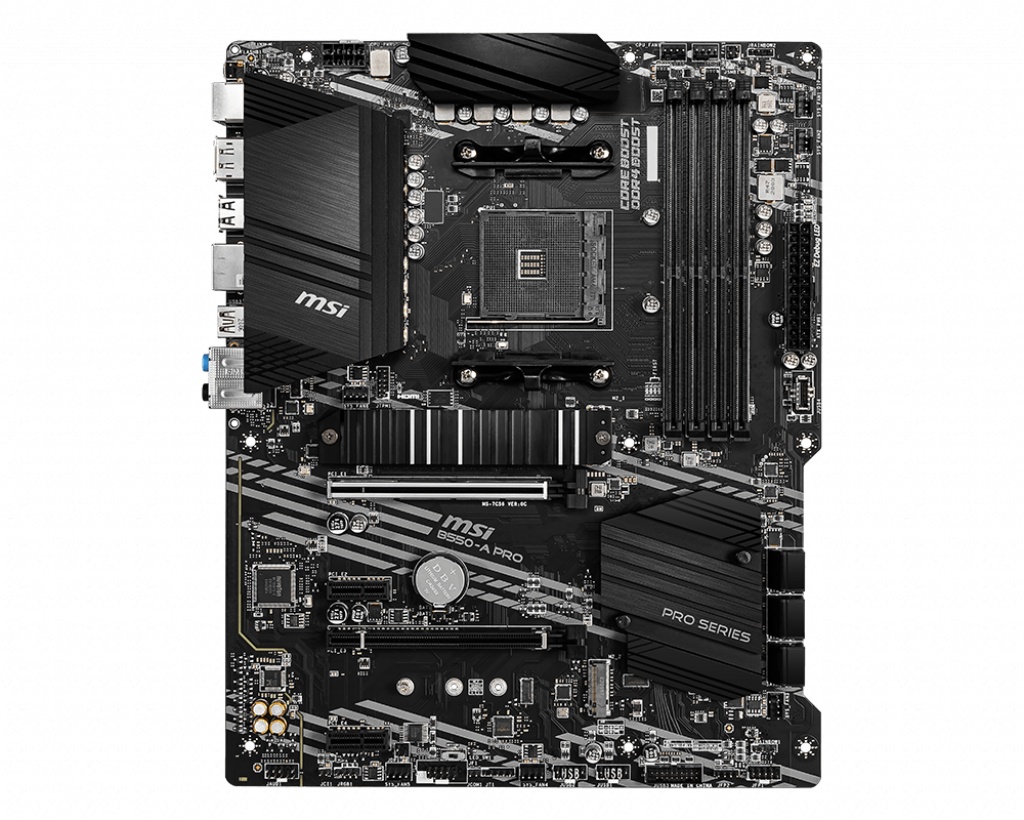

Placa de bază MSI B550-A PRO AM4

573,99 RON
Costurile de livrare nu sunt incluse
Cod produs - SKU B550-A PRO
Adauga la Favorite

Descriere

Placa de baza MSI B550-A PRO Socket AM4 911-7C56-007 / 4719072733667 SPECIFICATIONS Model Name B550-A PRO CPU Support Support for 3rd Gen AMD® Ryzenth processors and future AMD® Ryzen™ processors with BIOS update CPU Socket AMD Socket AM4 Chipset AMD® B550 Chipset Graphics Interface 1x PCIe 4.0 / 3.0 x16 slot + 1x PCIe 3.0 x16 slot Support 2-way AMD® CrossFire™ Technology Display Interface DisplayPort, HDMI – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR4-4400 MHz (OC) Expansion Slots 2x PCI-E 3.0 x1 slots Storage 1 x M.2 Gen4 x4, 1 x M.2 Gen3 x4 slot 6x SATA 6Gb/s ports USB ports 2x USB 3.2 Gen 2 10Gbps (1 Type-A + 1 Type-C) + 5x USB 3.2 Gen 1 5Gbps (4 Type-A+ 1 Type-C) + 8 x USB 2.0 LAN Realtek® RTL8111H Gigabit LAN Audio 8-Channel (7.1) HD Audio with Audio Boost https://www.msi.com/Motherboard/B550-A-PRO/Specification

Detalii

SKU
B550-A PRO
Categorii
Placi de baza
Brand
MSI
Clear CMOS jumper
Yes
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
PCI Express x16 (Gen 3.x) slots
1
Motherboard form factor
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
2-Way CrossFireX
Maximum resolution
4096 x 2160 pixels
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of chassis fan connectors
6
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
6
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Supported memory clock speeds
1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4800 MHz
ECC сompatibility
ECC & Non-ECC
LAN controller
Realtek 8111H
Ethernet interface type
Gigabit Ethernet
DVI-D ports quantity
0
Processor socket
Socket AM4
Compatible processor series
AMD Ryzen 3000 Series
Supported storage drive types
HDD & SSD
MB-Format
ATX
RAM-Slots
4
MB-Socket
AM4
PCI-Ex16
2
USB3
4-8
PCI-Ex1
2
PCI Express x1 (Gen 3.x) slots
2
PS/2 ports quantity
1
Maximum number of SMP processors
1
Chassis intrusion connector
Yes
Number of SATA II connectors
0
Number of SATA connectors
0
mSATA ports quantity
0
Drivers included
Yes
Number of Parallel ATA connectors
0
eSATA ports quantity
0
Firewire (IEEE 1394) ports
0
Maximum graphics card memory
16000 MB
Number of mounting holes
9
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
DisplayPorts quantity
1
VGA (D-Sub) ports quantity
0
Cables included
SATA
Width
30.5 mm
Height
65 mm
Weight
1 kg
Depth
24.4 mm
PCI
0
Serial-or-Paralel
No/No
Component for
PC
Harmonized System (HS) code
84733020
CPU încorporat
No
RAID levels
0, 1, 10
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Maximum internal memory
128 GB
On-board graphics card
No
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Motherboard chipset
AMD B550
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Audio Chip
Realtek ALC892
Supported storage drive interfaces
SATA III
Wi-Fi
No
