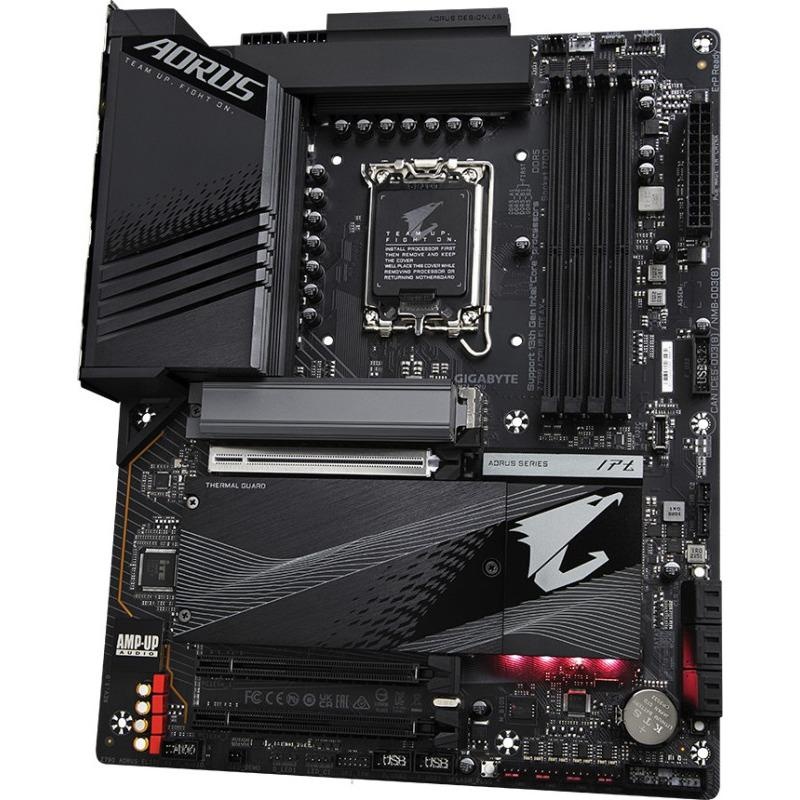

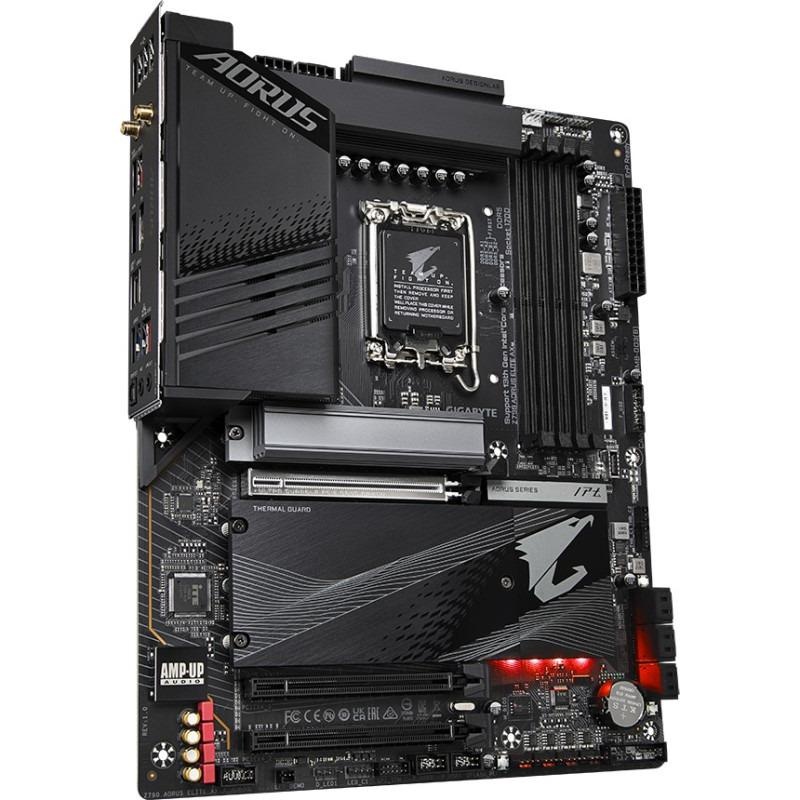

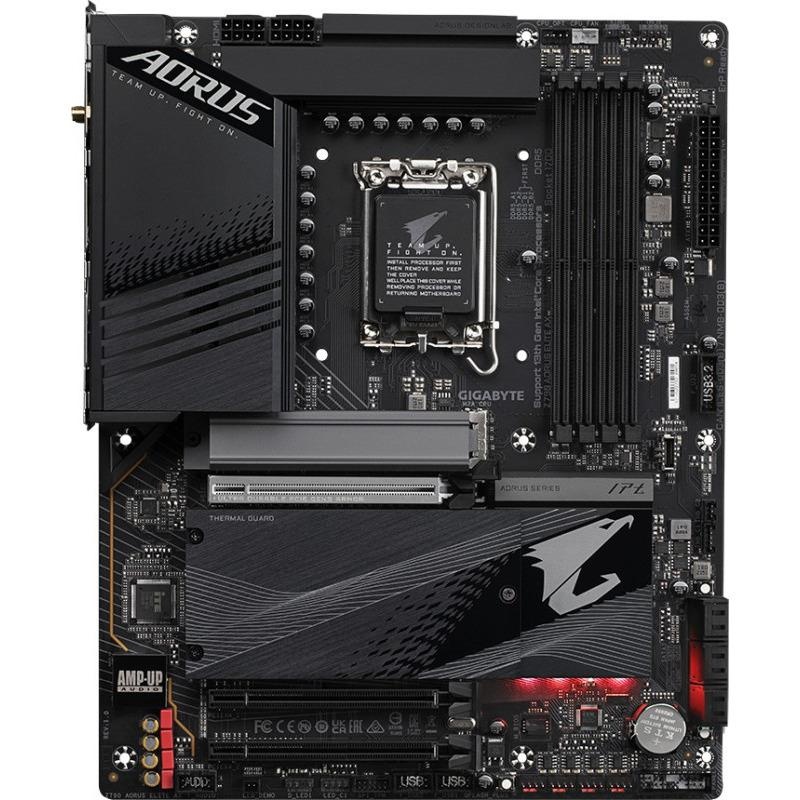

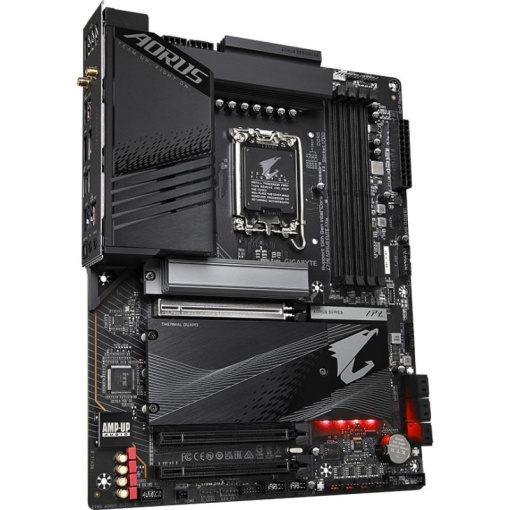

Placa de baza Gigabyte Z790 AORUS ELITE AX, Socket 1700, DDR5, ATX
1.200,99 RON
Costurile de livrare nu sunt incluse
Descriere
Placa de baza Gigabyte Z790 AORUS ELITE AX LGA 1700,Z790, PCIe Gen 5, ATX, 4x DIMM slots, DDR5 7600MHz(OC), 4 x M.2 , 6 x SATA, 2.5Gb LAN, WIFI 6E, HDMI, 9x USB, Type-C
Detalii
SKU
Z790 AORUS ELITEAX
Categorii
Brand
Lithium weight per battery
0.07 g
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Number of M.2 (M) slots
4
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Motherboard chipset family
Intel
Audio output channels
7.1 channels
Parallel processing technology support
Crossfire
DirectX version
12.0
Maximum resolution
4096 x 2304 pixels
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of SATA III connectors
6
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Supported memory clock speeds
7600,7400,7200,4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000 MHz
Supported memory clock speed (max)
7600 MHz
ECC сompatibility
ECC & Non-ECC
Ethernet interface type
2.5 Gigabit Ethernet
DVI-D ports quantity
0
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of HDDs supported
6
Number of storage drives supported
10
MB-Format
ATX
RAM-Slots
4
MB-Socket
1700
PCI-Ex16
3
USB3
4-8
PCI-Ex1
0
Thunderbolt headers
2
Number of SATA II connectors
0
Number of SATA connectors
0
mSATA ports quantity
0
Maximum internal memory supported by processor
192 GB
Total number of SATA connectors
6
S/PDIF out port
Yes
PCI Express x16 slots
3
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
DisplayPort version
1.2
DisplayPorts quantity
1
HDCP
Yes
Headphone outputs
2
VGA (D-Sub) ports quantity
0
USB 3.2 Gen 2x2 Type-C ports quantity
1
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Cables included
SATA
Width
30.5 mm
Height
35 mm
Package width
335 mm
Package height
80 mm
Depth
24.4 mm
Package weight
2.32 kg
Package depth
270 mm
Country of origin
China
Bundled software
Norton Internet Security
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Component for
PC
RAID support
Yes
RAID levels
0, 1, 5, 10
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Maximum internal memory
192 GB
On-board graphics card
No
WLAN controller model
Intel Wi-Fi 6E AX211
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
HDMI ports quantity
1
HDMI version
2.0
Number of battery cells
1
Battery weight
3 g
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
Intel Z790
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB connector type
USB Type-A, USB Type-C
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
Wi-Fi
Yes
