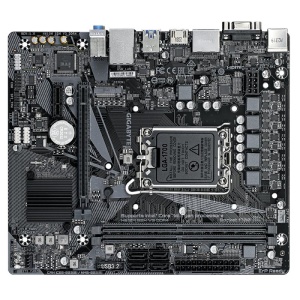

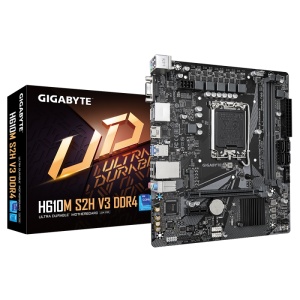

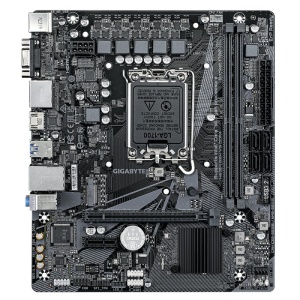

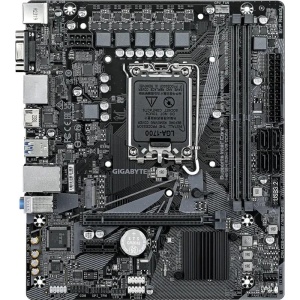

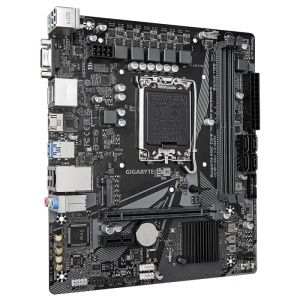

Placa de baza GIGABYTE H610M S2H V3 LGA1700
357,99 RON
Costurile de livrare nu sunt incluse
Descriere
Placa de baza GIGABYTE H610M S2H V3 LGA1700, 2x DDR4, 1x PCIE x16 1x PCIE x1, 1x D-Sub 1x HDMI 2x DP, 1x M.2, 4x SATA 6GB/s, mATX
Detalii
SKU
H610M S2H V3 DDR4
Categorii
Brand
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
PCI Express x16 (Gen 4.x) slots
1
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
Serial port headers
1
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
Ethernet interface type
Gigabit Ethernet
Batteries included
Yes
DVI-D ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
USB3
4-8
PCI-Ex1
1
BIOS memory size
128 Mbit
PCI Express x1 (Gen 3.x) slots
1
1st M.2 largest key size
2280
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of RGB LED pin headers
1
Number of CPU fan connectors
1
Number of memory slots
2
ECC сompatibility
ECC & Non-ECC
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Line-in
Yes
MB-Socket
1700
MB-Format
micro-ATX
RAM-Slots
2
PCI-Ex16
1
Number of M.2 (M) slots
1
PS/2 ports quantity
1
Number of storage drives supported
5
Supported memory types
DDR4-SDRAM
Supported memory clock speed (max)
3200 MHz
Chassis intrusion connector
Yes
Maximum resolution
4096 x 2304 pixels
Total number of SATA connectors
4
1st M.2 highest PCI Express generation
3.0
Supported memory clock speeds
2133,2400,2666,2933,3000,3200 MHz
Compatible processor series
Intel Core™ i3, Intel Core™ i5, Intel Core™ i7
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
DisplayPort version
1.2
DisplayPorts quantity
2
HDCP
Yes
VGA (D-Sub) ports quantity
1
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Product colour
Black
Width
223 mm
Height
35 mm
Depth
193 mm
Country of origin
China
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Active
Component for
PC
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Maximum internal memory
64 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Number of battery cells
1
Battery weight
3 g
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
Intel H610 Express
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB connector type
USB Type-A
Supported storage drive interfaces
M.2, SATA III
Wi-Fi
No
