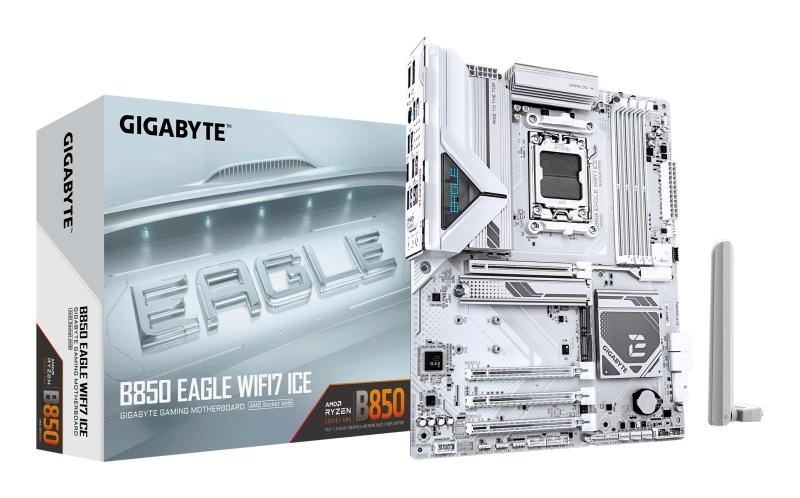

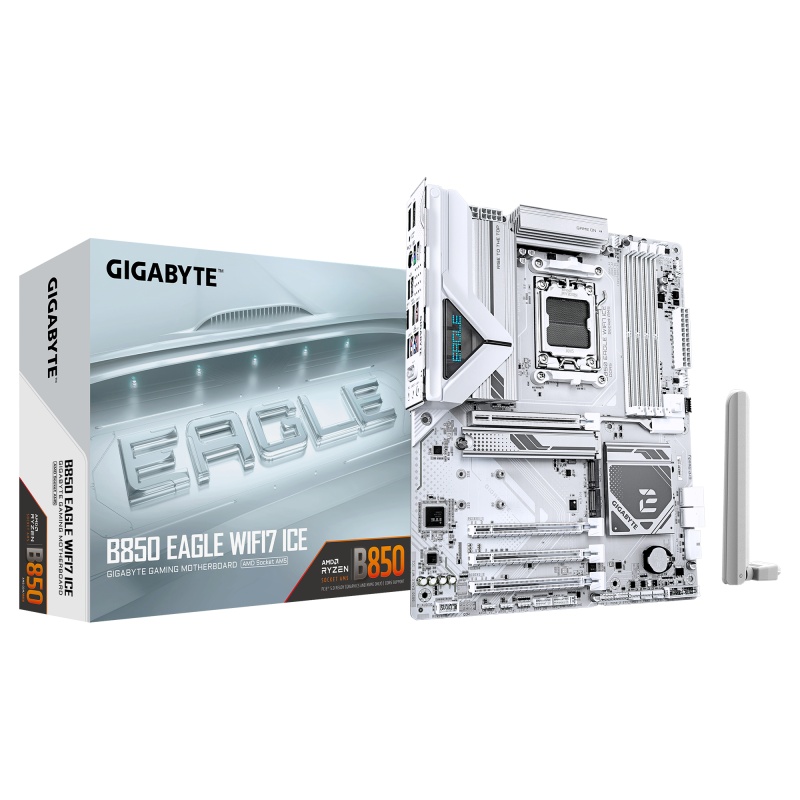

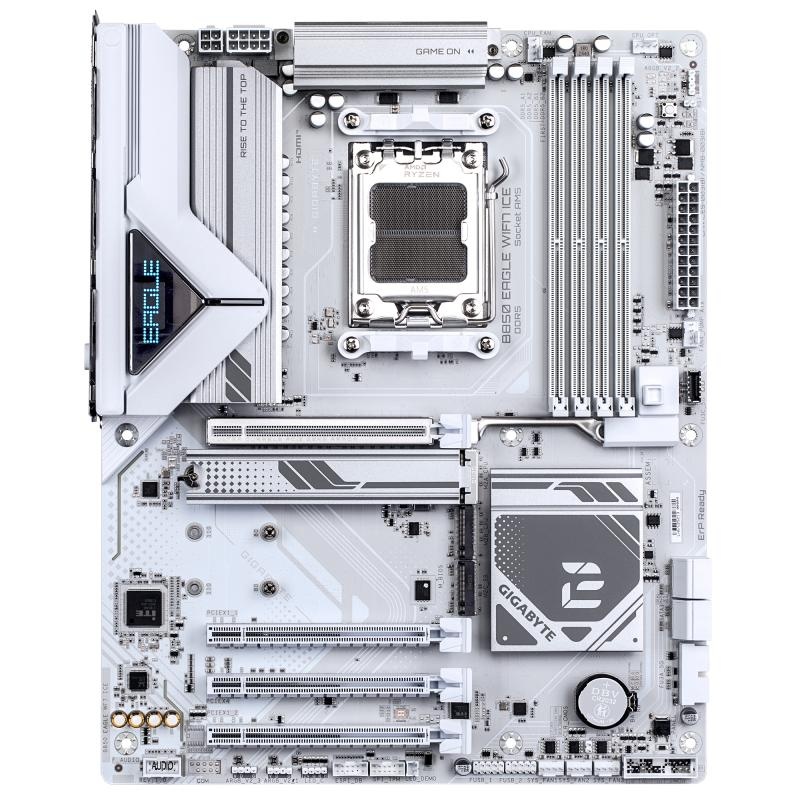

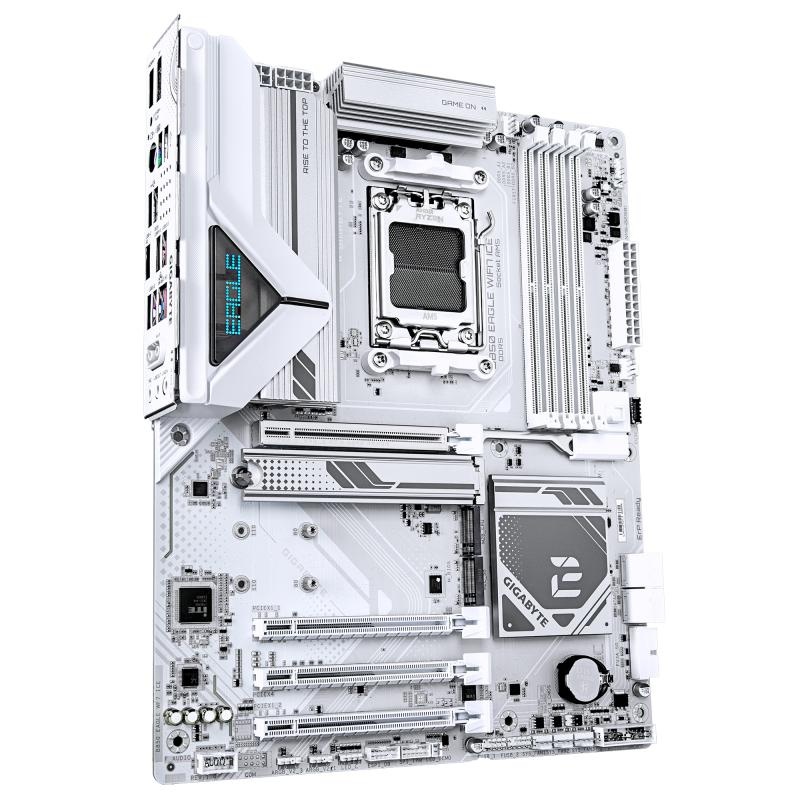

Placa de Baza GIGABYTE B850 EAGLE WIFI7 ICE AM5, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 2x PCIE 3.0 x16, 3x M.2, 4x SATA 6GB/s, ATX
1.067,99 RON
Costurile de livrare nu sunt incluse
Descriere
Placa de Baza GIGABYTE B850 EAGLE WIFI7 ICE AM5, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 2x PCIE 3.0 x16, 3x M.2, 4x SATA 6GB/s, ATX
Detalii
SKU
B850 EAGLE WF7 ICE
Categorii
Brand
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
3
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
PCI Express x16 (Gen 3.x) slots
2
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
12V power connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Antenna included
Yes
Batteries included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
7
MB-Format
ATX
RAM-Slots
4
MB-Socket
AM5
USB3
4-8
USB 2.0 connectors
2
Line-in
Yes
PS/2 ports quantity
1
1st M.2 largest key size
22110
PCI-Ex1
0
Ethernet interface type
2.5 Gigabit Ethernet
Number of chassis fan connectors
4
PCI Express x16 (Gen 5.x) slots
1
Peripheral (Molex) power connectors (4-pin)
1
LAN controller
Realtek RTL8125
Supported memory clock speed (max)
8200 MHz
PCI-Ex16
3
Supported memory clock speeds
8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
DisplayPort version
1.4
DisplayPorts quantity
1
HDCP
Yes
Headphone outputs
1
VGA (D-Sub) ports quantity
0
Windows operating systems supported
Windows 11 x64
Product colour
White
Width
305 mm
Height
35 mm
Package width
335 mm
Package height
80 mm
Weight
1.69 kg
Depth
244 mm
Package weight
1.89 kg
Package depth
270 mm
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
BLUETOOTH
Yes
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Passive
Component for
PC
Warranty period
3 year(s)
RAID support
Yes
RAID levels
0, 1, 10
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
Maximum internal memory
256 GB
WLAN controller model
Realtek RTL8922AE
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
1.4
Number of battery cells
1
Battery weight
3 g
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
AMD B850
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Audio Chip
Realtek ALC897
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Wi-Fi
Yes
