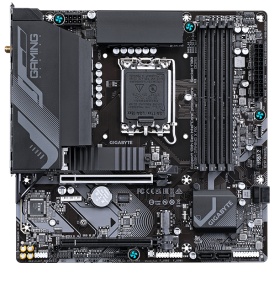

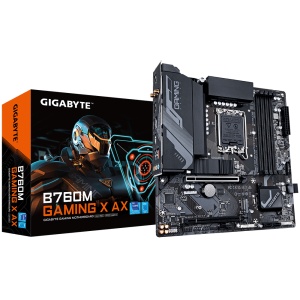

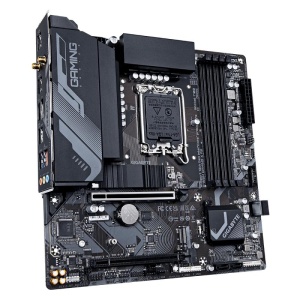

Placa de baza GIGABYTE B760M GAMING X AX LGA1700
733,99 RON
Costurile de livrare nu sunt incluse
Descriere
Placa de baza GIGABYTE B760M GAMING X AX DDR5 Intel B760 LGA 1700, 4x DDR5, 1x DP 1x HDMI, 2x PCIE x16, 2x M.2, 4x SATA 6GB/s
Detalii
SKU
B760M GAMING X AX
Categorii
Brand
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
PCI Express x16 (Gen 4.x) slots
1
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Audio output channels
7.1 channels
DirectX version
12.0
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
Serial port headers
1
Number of chassis fan connectors
3
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Supported memory clock speed (max)
7600 MHz
ECC сompatibility
Non-ECC
Batteries included
Yes
DVI-D ports quantity
0
WiFi-AP antenna jack
2
Number of HDDs supported
4
Number of M.2 (M) slots
2
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
S/PDIF out connector
Yes
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Line-in
Yes
Number of storage drives supported
6
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Ethernet interface type
2.5 Gigabit Ethernet
Compatible processor series
Intel Celeron, Intel Pentium Gold
Maximum internal memory supported by processor
192 GB
PCI Express x16 (Gen 3.x) slots
1
Maximum resolution
4096 x 2304 pixels
Thunderbolt headers
2
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Supported memory clock speeds
4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Maximum number of SMP processors
2
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
DisplayPort version
1.2
DisplayPorts quantity
1
HDCP
Yes
Headphone outputs
1
VGA (D-Sub) ports quantity
0
Windows operating systems supported
Windows 10, Windows 11
Product colour
Brown
Cables included
SATA
Width
244 mm
Height
35 mm
Package width
270 mm
Package height
68 mm
Depth
244 mm
Package weight
1.64 kg
Package depth
268 mm
Country of origin
China
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
BLUETOOTH
Yes
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Component for
PC
Warranty period
3 year(s)
RAID support
Yes
RAID levels
0, 1, 5, 10
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Maximum internal memory
192 GB
WLAN controller model
Realtek RTL8852CE
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.0
Number of battery cells
1
Battery weight
3 g
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
Intel B760 Express
USB 2.0 ports quantity
5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Supported storage drive interfaces
M.2, SATA III
Wi-Fi
Yes
