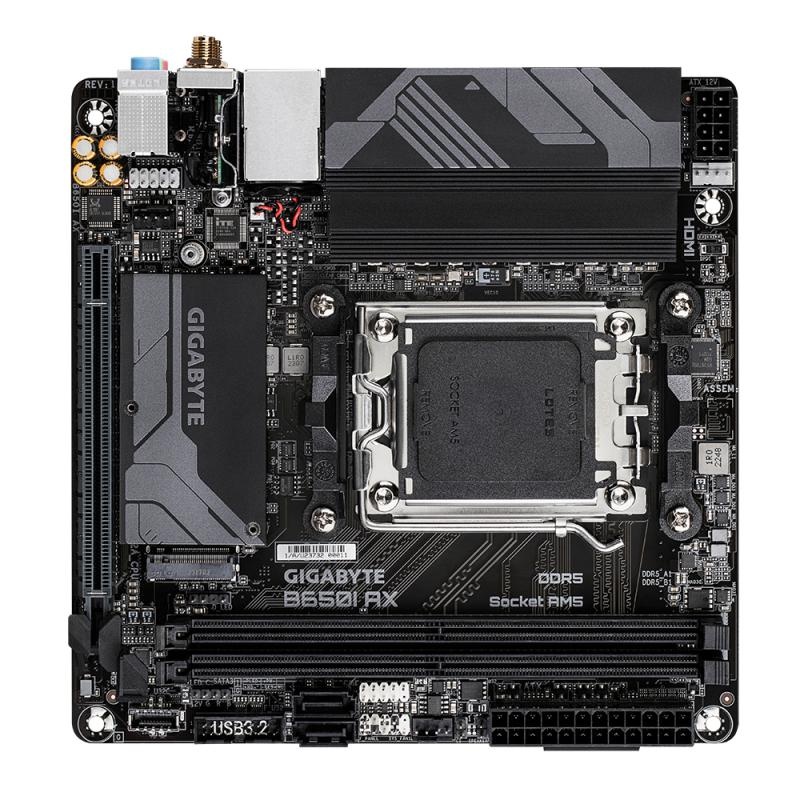

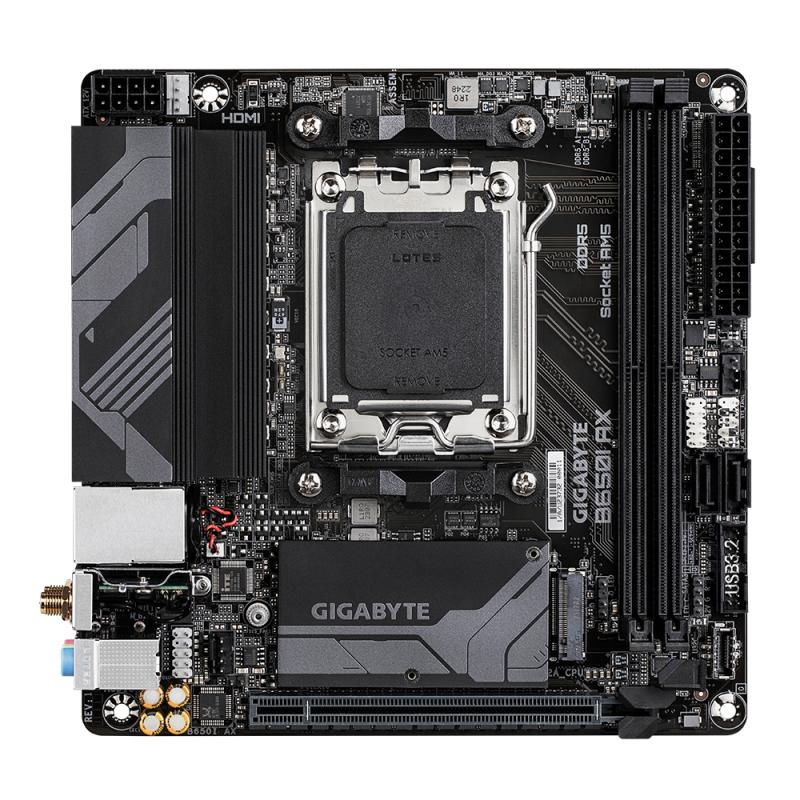

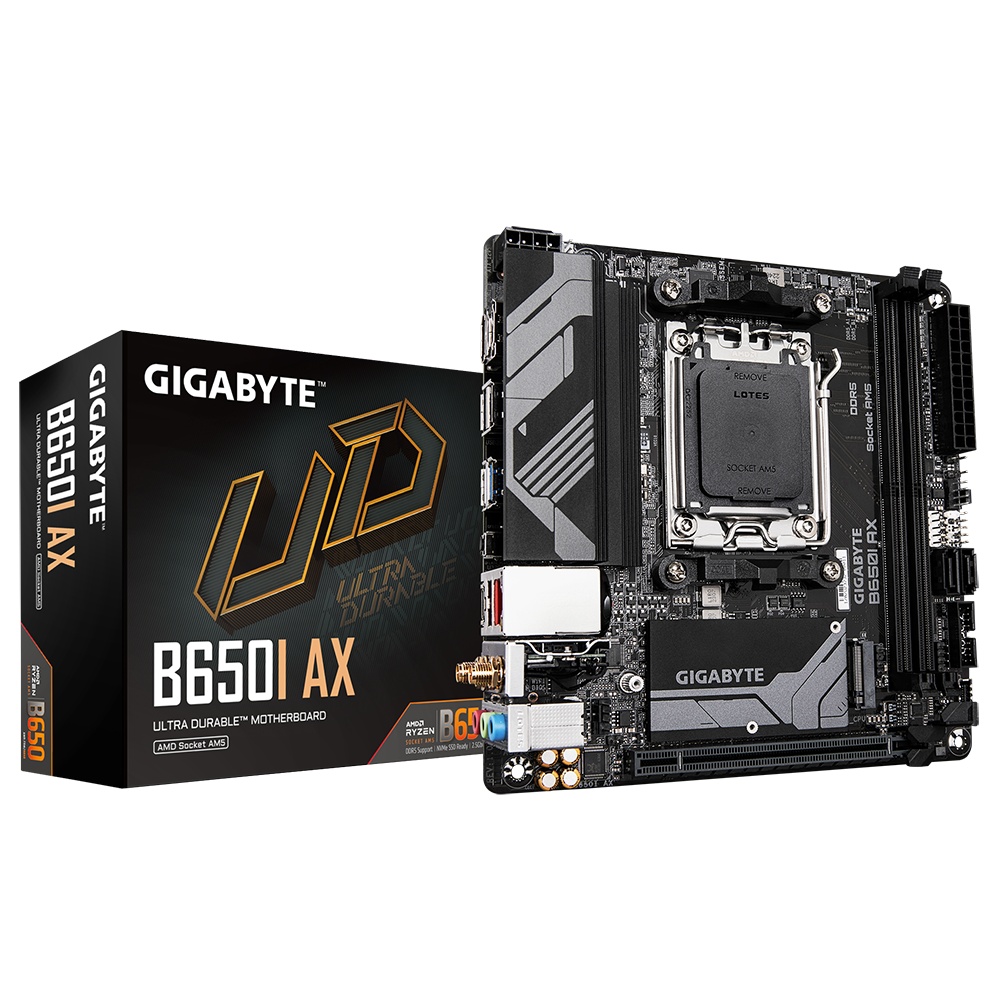

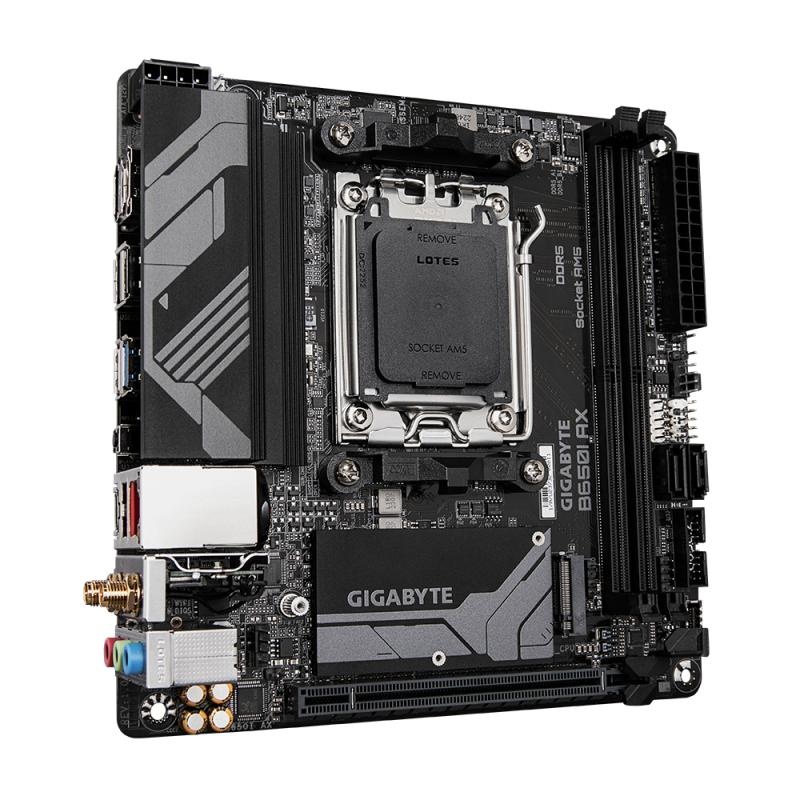

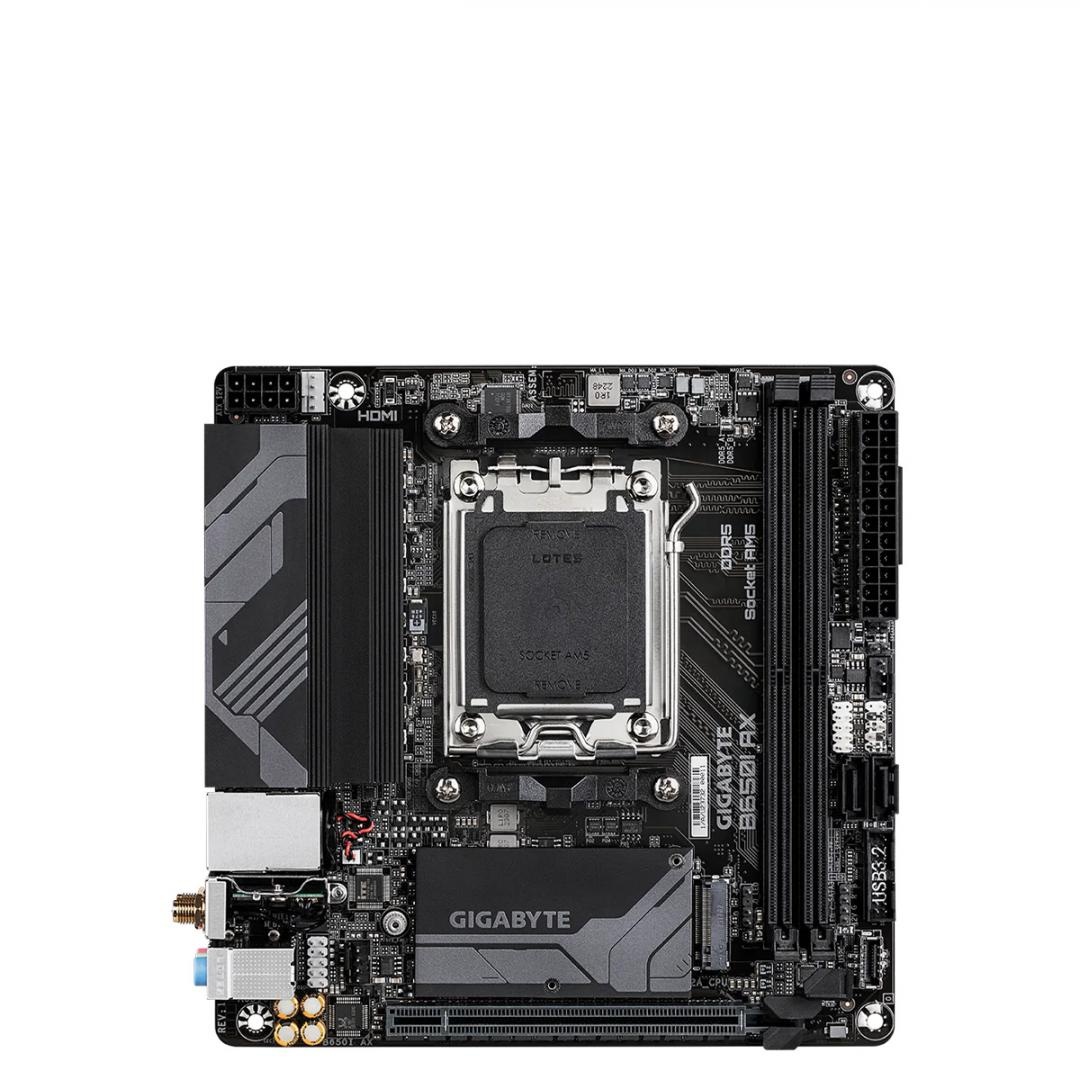

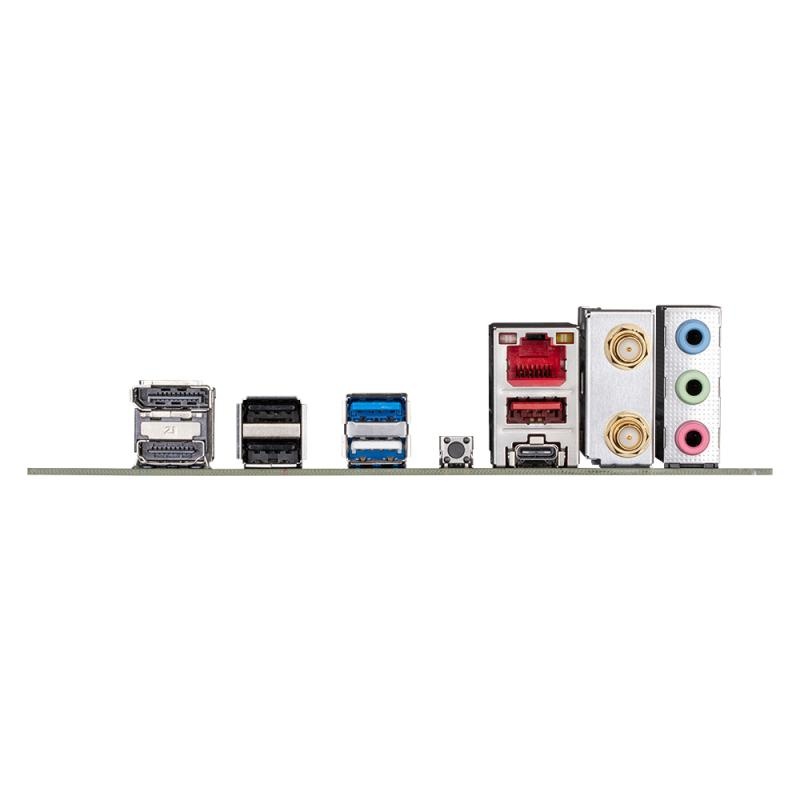

Placa de baza GIGABYTE B650I AX AM5

Acest produs nu mai face parte din oferta magazinului.
927,99 RON
Costurile de livrare nu sunt incluse
Cod produs - SKU B650I AX

Descriere

Placa de baza GIGABYTE B650I AX AM5, 2x DDR5, 1x DP 1x HDMI, 1x PCIE x16, 1x M.2, 2x SATA 6gb/s, Mini-ITX

Detalii

SKU
B650I AX
Categorii
Placi de baza
Brand
GIGABYTE
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
1
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
4.0
Motherboard form factor
mini ITX
PC health monitoring
Fan, Temperature, Voltage
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
1
RGB LED pin header
Yes
Number of RGB LED pin headers
2
12V power connector
Yes
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of chassis fan connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
2
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
2
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
Supported memory clock speeds
4400,4800,5200,5600,6000,6200,6400 MHz
Supported memory clock speed (max)
6400 MHz
ECC сompatibility
Non-ECC
LAN controller
Realtek RTL8125
Ethernet interface type
2.5 Gigabit Ethernet
Antenna included
Yes
Batteries included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of HDDs supported
2
Number of storage drives supported
3
Line-in
Yes
Chassis intrusion connector
Yes
Number of EATX power connectors
1
Discrete graphics support
Yes
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
DisplayPort version
1.4
DisplayPorts quantity
1
HDCP
Yes
Headphone outputs
1
VGA (D-Sub) ports quantity
0
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Product colour
Brown
Width
170 mm
Height
35 mm
Package width
222 mm
Package height
65 mm
Depth
170 mm
Package weight
879 g
Package depth
180 mm
Country of origin
China
Bundled software
Norton Internet Security (OEM version) LAN bandwidth management software
BLUETOOTH
Yes
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Component for
PC
Warranty period
3 year(s)
RAID support
Yes
RAID levels
0, 1
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Maximum internal memory
128 GB
WLAN controller model
Realtek RTL8852CE
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Number of battery cells
1
Battery weight
3 g
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
AMD B650
USB 2.0 ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Audio Chip
Realtek ALC897
Supported storage drive interfaces
M.2, SATA III
Wi-Fi
Yes
