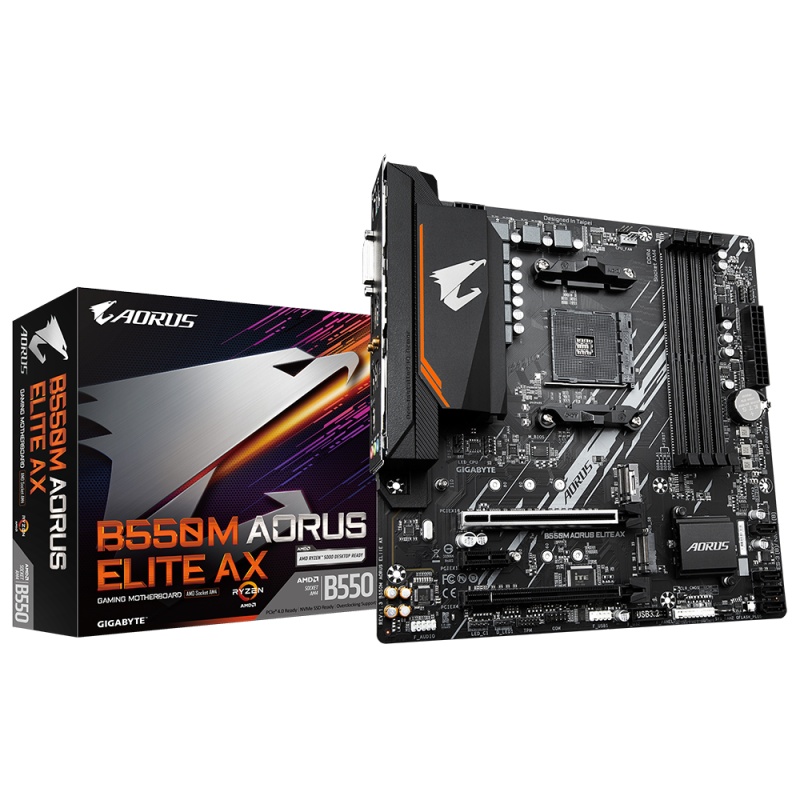

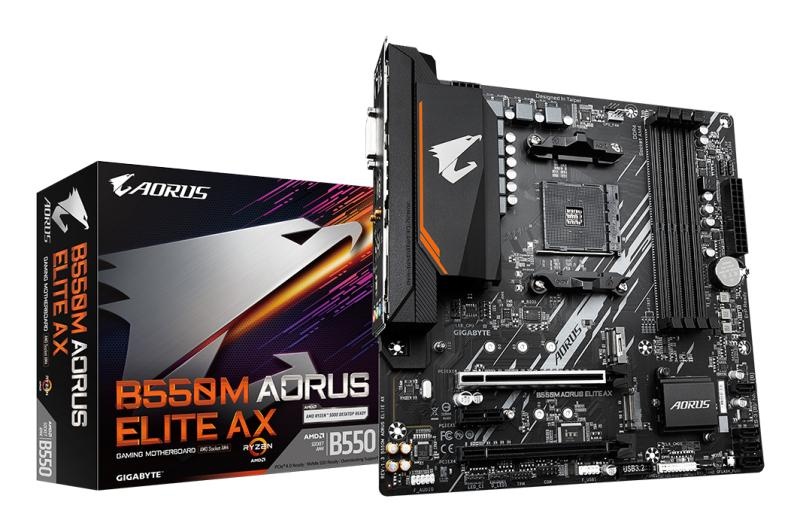

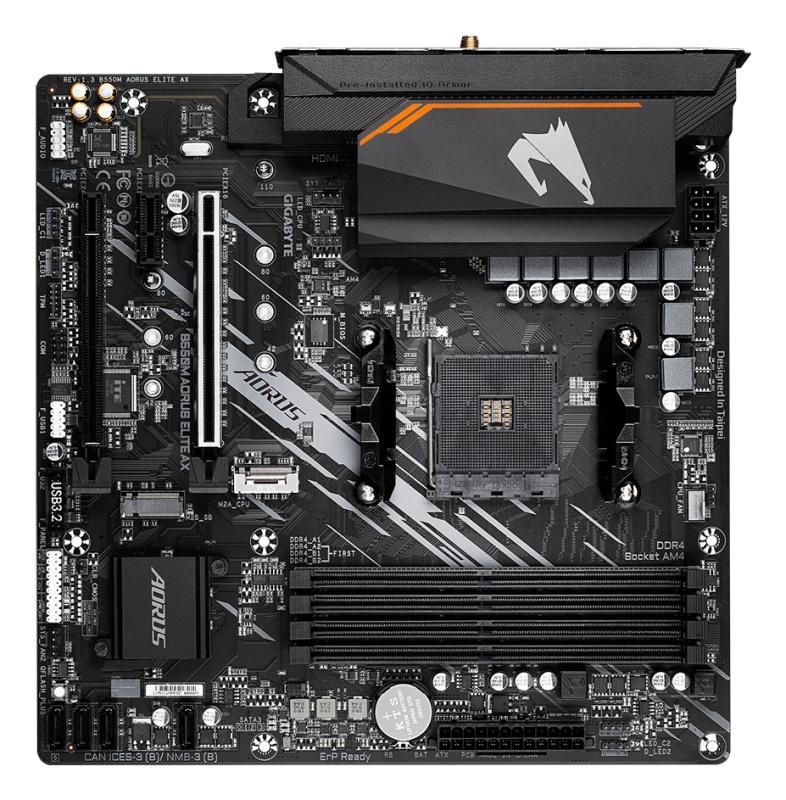

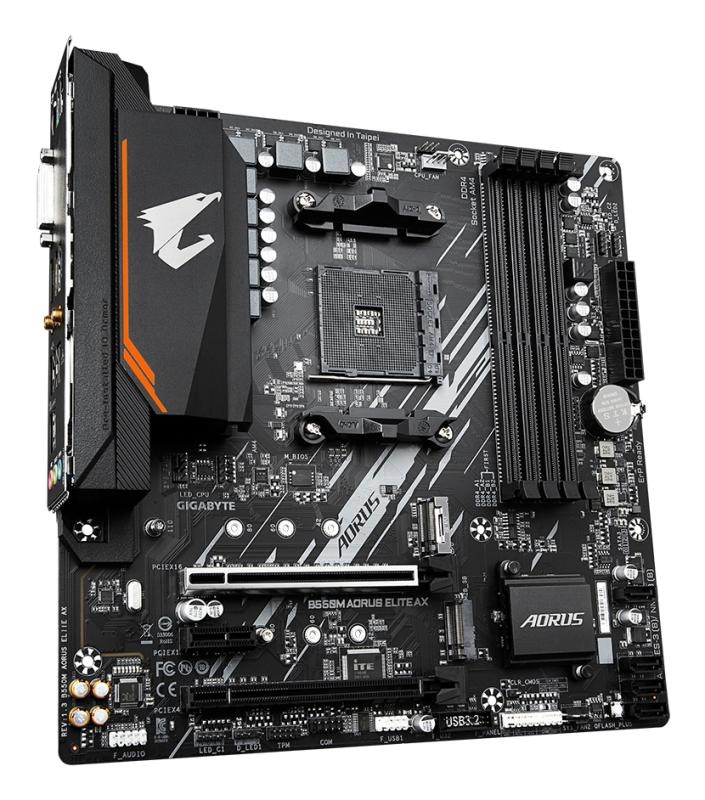

Placa de Baza GIGABYTE B550M AORUS ELITE AX AM4, 4x DDR4, 1x DVI-D 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x4 1x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
616,99 RON
Costurile de livrare nu sunt incluse
Descriere
Placa de Baza GIGABYTE B550M AORUS ELITE AX AM4, 4x DDR4, 1x DVI-D 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x4 1x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
Detalii
SKU
B550M AORUS ELITE AX
Categorii
Brand
Lithium weight per battery
0.07 g
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
PCI Express x16 (Gen 4.x) slots
1
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
12V power connector
Yes
Serial port headers
1
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Antenna included
Yes
Batteries included
Yes
Screws included
Yes
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAM-Slots
4
USB3
4-8
PCI-Ex1
1
BIOS memory size
128 Mbit
Number of M.2 (M) slots
2
PCI Express x1 (Gen 3.x) slots
1
1st M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2280
Motherboard form factor
micro ATX
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of chassis fan connectors
2
Number of CPU fan connectors
1
ECC сompatibility
ECC & Non-ECC
Line-in
Yes
Number of storage drives supported
6
MB-Format
micro-ATX
PCI-Ex16
1
USB 2.0 connectors
1
PS/2 ports quantity
1
2nd M.2 highest PCI Express generation
3.0
1st M.2 largest key size
22110
Number of RGB LED pin headers
5
Supported memory types
DDR4-SDRAM
Maximum internal memory per slot
32 GB
Processor socket
Socket AM4
Supported processor sockets
Socket AM4
Compatible processor series
AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Maximum number of SMP processors
1
PCI Express x16 (Gen 3.x) slots
1
PC health monitoring
Fan, Temperature, Voltage
DVI-D ports quantity
1
MB-Socket
AM4
Supported memory clock speed (max)
4733 MHz
Supported memory clock speeds
4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
HDCP
Yes
Headphone outputs
1
VGA (D-Sub) ports quantity
0
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Product colour
Brown
Width
244 mm
Height
35 mm
Package width
265 mm
Package height
65 mm
Depth
244 mm
Package weight
1.27 kg
Package depth
265 mm
Country of origin
China
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
BLUETOOTH
Yes
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Passive
Component for
PC
Warranty period
3 year(s)
RAID support
Yes
RAID levels
0, 1, 10
Products per shipping (inner) case
1 pc(s)
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Maximum internal memory
128 GB
WLAN controller model
Realtek RTL8852CE
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Number of battery cells
1
Battery weight
3 g
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
AMD B550
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Audio Chip
Realtek ALC897
Supported storage drive interfaces
M.2, SATA III
Wi-Fi
Yes
