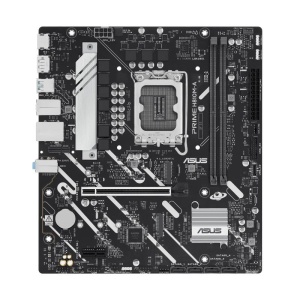

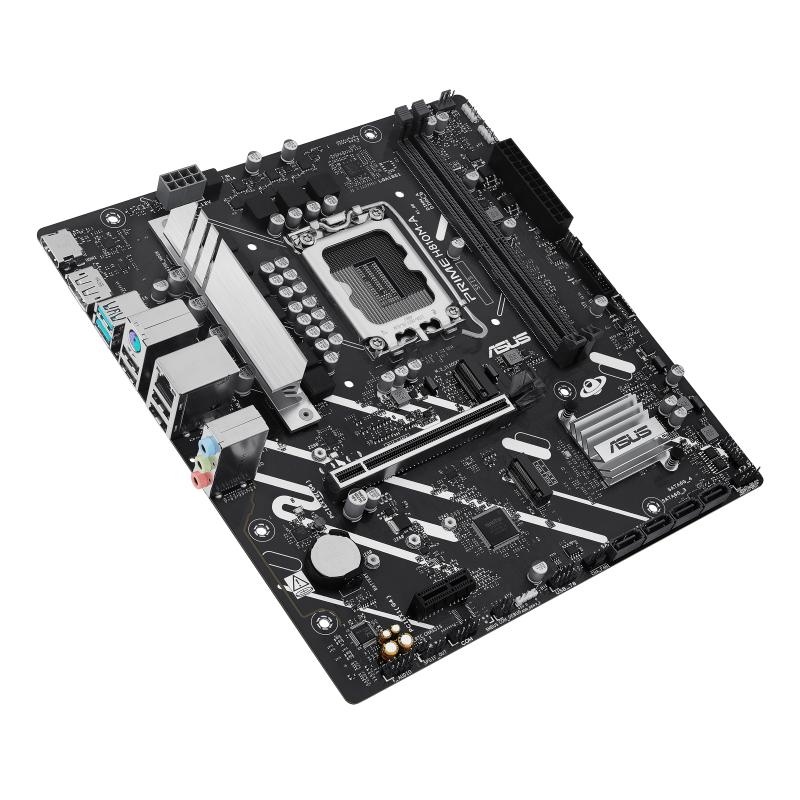

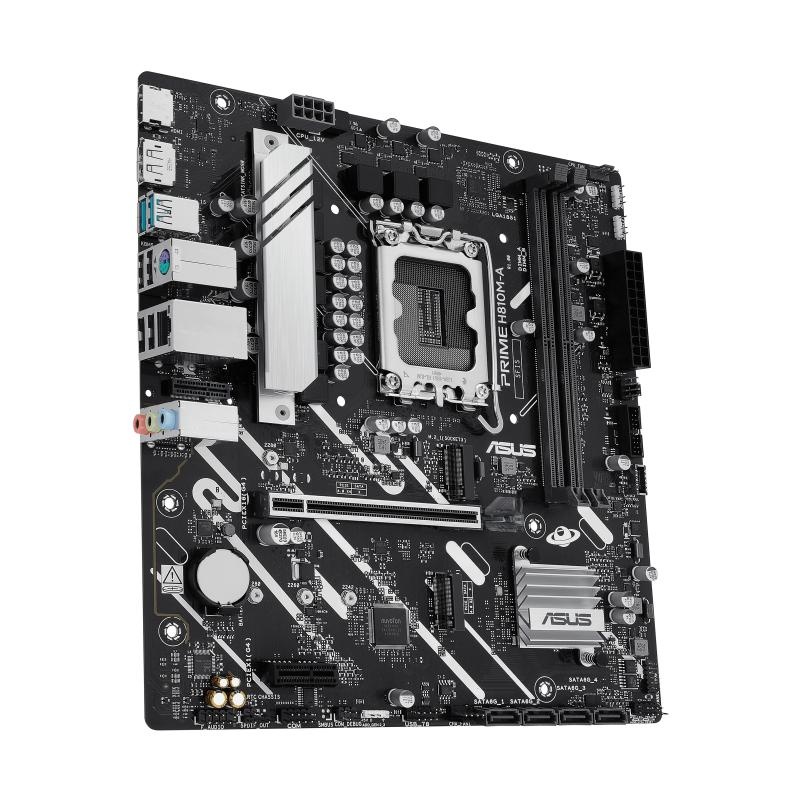

Placa de Baza ASUS PRIME H810M-A-CSM LGA 1851, 2x DDR5, 1x DP 1x HDMI 1x PCIE 4.0 x16 1x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
779,99 RON
Costurile de livrare nu sunt incluse
Descriere
Placa de Baza ASUS PRIME H810M-A-CSM LGA 1851, 2x DDR5, 1x DP 1x HDMI 1x PCIE 4.0 x16 1x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
Detalii
SKU
PRIME H810M-A-CSM
Categorii
Brand
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
PCI Express x16 (Gen 4.x) slots
1
2nd M.2 highest PCI Express generation
4.0
Power source type
ATX
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
ECC сompatibility
Non-ECC
Ethernet interface type
Gigabit Ethernet
DVI-D ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Number of chassis fan connectors
2
Number of CPU fan connectors
1
S/PDIF out connector
Yes
Number of memory slots
2
Line-in
Yes
Number of storage drives supported
6
USB 2.0 connectors
1
Supported memory clock speed (max)
6400 MHz
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
Compatible processor series
Intel Core Ultra (Series 2)
PS/2 ports quantity
1
Number of COM connectors
1
PCI Express x1 (Gen 4.x) slots
1
Number of RGB LED pin headers
3
Wake-on-LAN ready
Yes
LAN controller
Intel I219V
Number of M.2 (E) slots
1
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
DisplayPort version
1.4
DisplayPorts quantity
1
VGA (D-Sub) ports quantity
0
Windows operating systems supported
Windows 10 x64, Windows 11
Product colour
Black
Width
244 mm
Height
37 mm
Package width
270 mm
Package height
51.5 mm
Weight
534 g
Depth
222 mm
Package weight
782 g
Package depth
263 mm
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Component for
PC
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
Maximum internal memory
128 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
Intel H810
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
Wi-Fi
No
