NOU

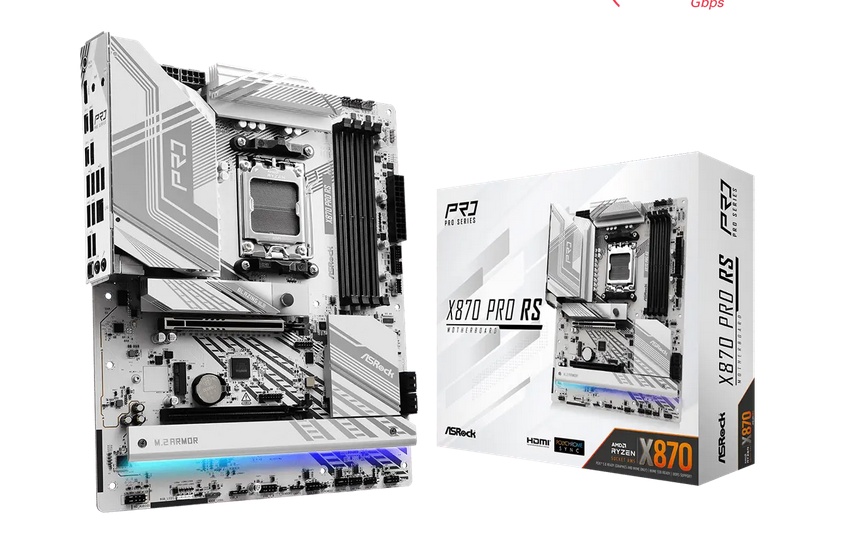

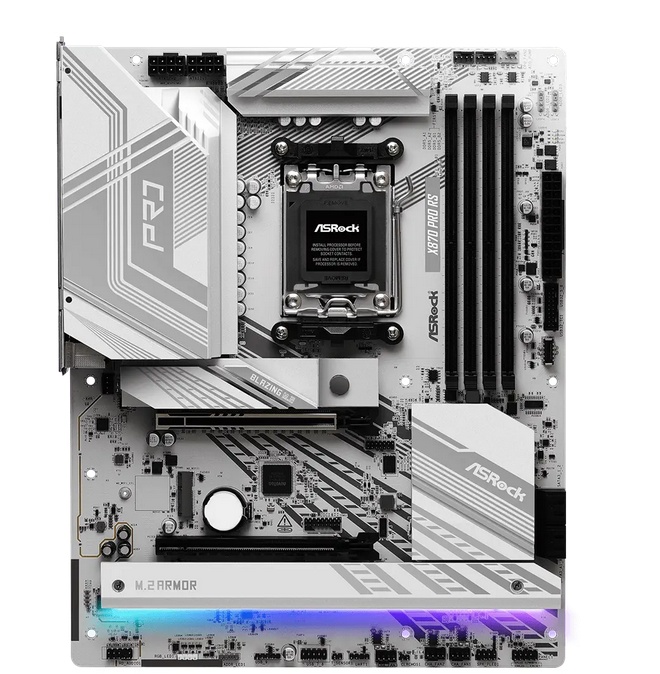

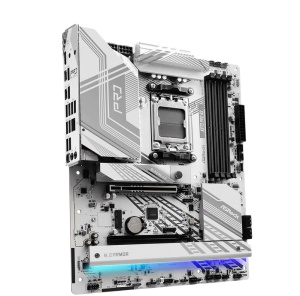

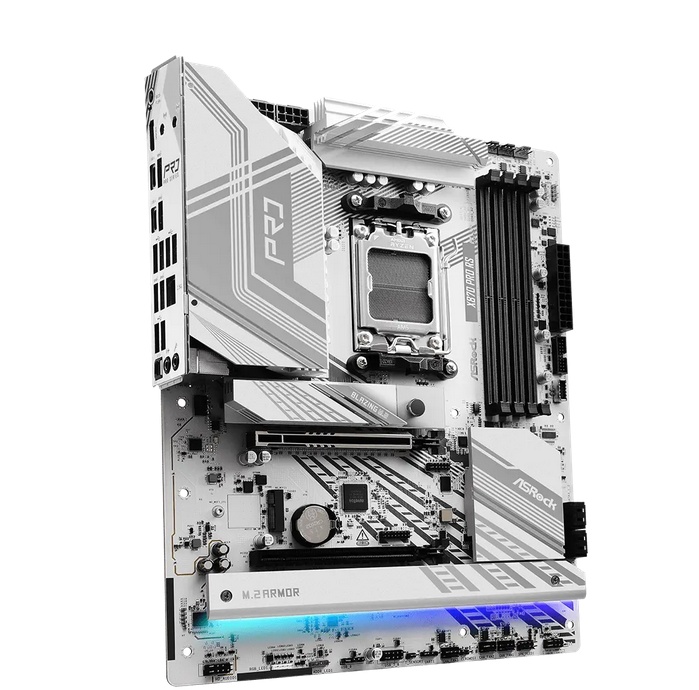

Placa de baza ASRock X870 PRO RS, Socket AM5, DDR5, ATX
1.078,99 RON
Costurile de livrare nu sunt incluse
Descriere

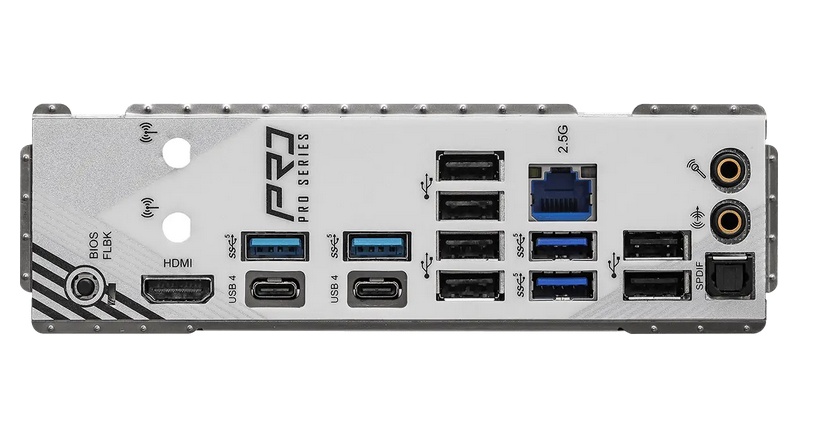

Placa de Baza ASROCK X870 PRO RS AM5, 4x DDR5, 1x HDMI 2x USB4, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 4x M.2, 4x SATA 6GB/s, ATX
Detalii
SKU
X870 PRO RS
Categorii
Brand
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
3
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
3.0
Motherboard form factor
ATX
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Crossfire
Maximum resolution
7680 x 4320 pixels
Number of CPU fan connectors
2
Number of water pump connectors
1
RGB LED pin header
Yes
Number of RGB LED pin headers
5
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of EPS power connectors (8-pin)
2
Number of chassis fan connectors
4
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Supported memory clock speed (max)
8000 MHz
ECC сompatibility
ECC & Non-ECC
LAN controller
Dragon RTL8125BG
Ethernet interface type
2.5 Gigabit Ethernet
DVI-D ports quantity
0
Processor socket
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
7
MB-Format
ATX
RAM-Slots
4
MB-Socket
AM5
PCI-Ex16
2
USB3
4-8
PCI-Ex1
0
PCI Express x16 (Gen 5.x) slots
1
USB 3.2 Gen 2x2 connectors
1
Number of M.2 (E) slots
1
S/PDIF out port
Yes
USB4 Gen 2x2 ports quantity
2
Digital audio optical out
1
Number of temperature sensor headers
1
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
HDCP
Yes
Headphone outputs
1
VGA (D-Sub) ports quantity
0
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Product colour
White
Width
30.5 mm
Depth
24.4 mm
Certification
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Component for
PC
RAID support
Yes
RAID levels
0, 1, 10
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Maximum internal memory
256 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
HDMI ports quantity
1
HDMI version
2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
AMD X870
USB 2.0 ports quantity
6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Audio Chip
Realtek ALC1220
Supported storage drive interfaces
PCI Express 3.0, PCI Express 4.0, PCI Express 5.0, SATA III
Wi-Fi
No
