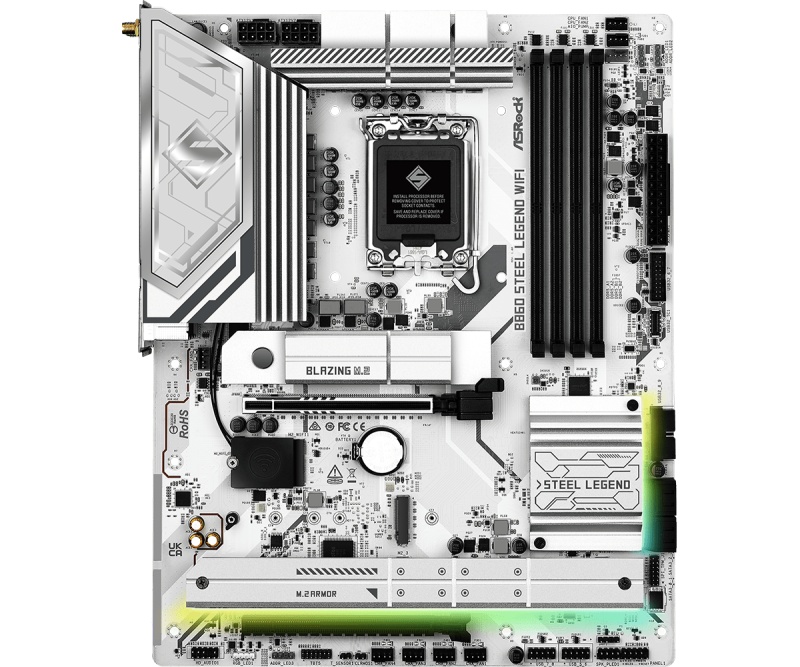

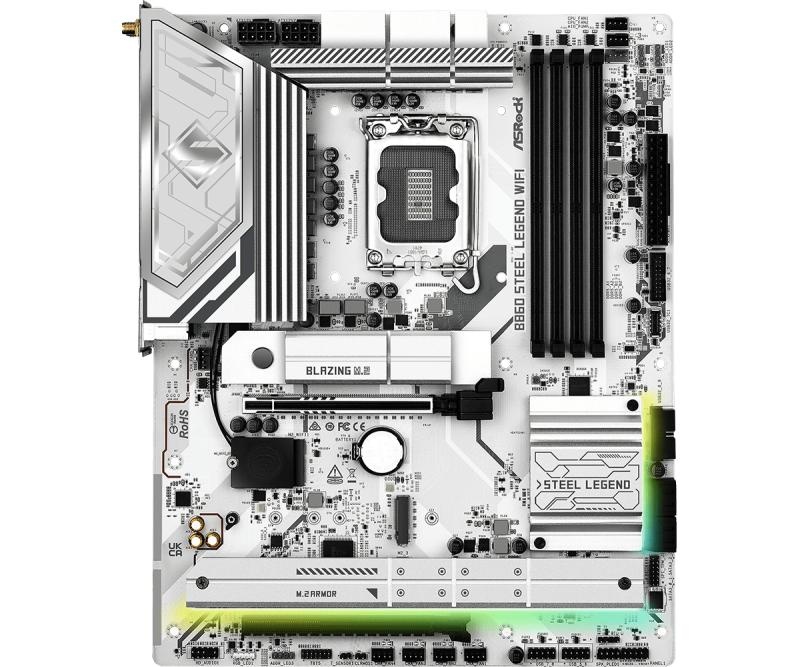

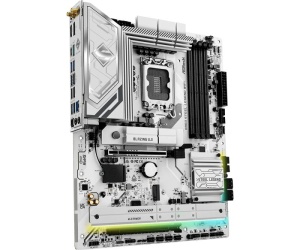

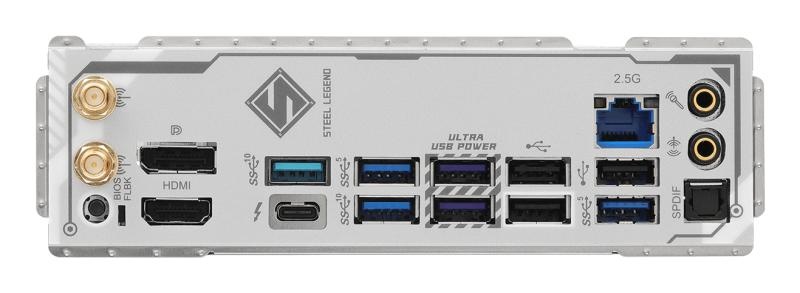

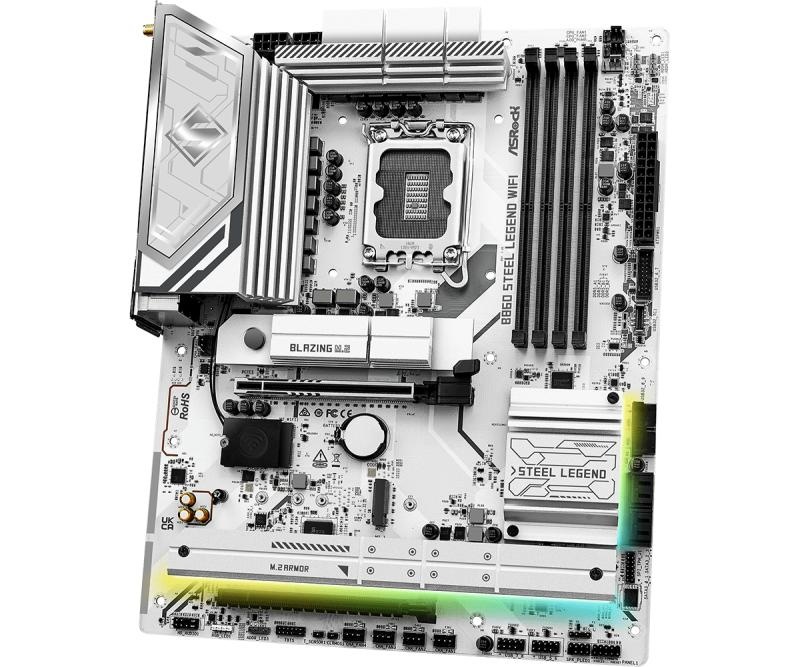

Placa de Baza ASROCK B860 STEEL LEGEND WIFI LGA1851, 4x DDR5, 1x HDMI 1x DP 1x Intel Thunderbolt, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 5x M.2, 4x SATA 6GB/s, ATX
1.204,99 RON
Costurile de livrare nu sunt incluse
Descriere
Placa de Baza ASROCK B860 STEEL LEGEND WIFI LGA1851, 4x DDR5, 1x HDMI 1x DP 1x Intel Thunderbolt, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 5x M.2, 4x SATA 6GB/s, ATX
Detalii
SKU
B860 STEEL LEGEND WIFI
Categorii
Brand
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
PCI Express x16 (Gen 4.x) slots
1
1st M.2 highest PCI Express generation
5.0
2nd M.2 highest PCI Express generation
4.0
3rd M.2 highest PCI Express generation
4.0
Motherboard form factor
ATX
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
Number of CPU fan connectors
2
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
ECC сompatibility
Non-ECC
Antenna included
Yes
DVI-D ports quantity
0
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
Motherboard chipset family
Intel
USB 2.0 connectors
2
Number of RGB LED pin headers
1
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
Compatible processor series
Intel Core Ultra (Series 2)
Number of water pump connectors
1
Ethernet interface type
2.5 Gigabit Ethernet
3rd M.2 largest key size
2280
PCI Express x16 (Gen 5.x) slots
1
Maximum resolution
7680 x 4320 pixels
USB 3.2 Gen 2x2 connectors
1
Number of EPS power connectors (8-pin)
2
Number of chassis fan connectors
5
4th M.2 largest key size
2280
4th M.2 highest PCI Express generation
4.0
Number of M.2 (M) slots
4
Number of storage drives supported
8
S/PDIF out port
Yes
LAN controller
Dragon RTL8125BG
Thunderbolt ports quantity
1
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
DisplayPort version
1.4
DisplayPorts quantity
1
HDCP
Yes
Headphone outputs
1
VGA (D-Sub) ports quantity
0
Windows operating systems supported
Windows 11 x64
Product colour
White
Cables included
SATA
Width
305 mm
Depth
244 mm
Certification
FCC, CE, ErP/EuP
BLUETOOTH
Yes
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Component for
PC
RAID support
Yes
RAID levels
0, 1, 5, 10
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Maximum internal memory
256 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
Intel B860
USB 2.0 ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Audio Chip
Realtek ALC1220
USB connector type
USB Type-A, USB Type-C
Supported storage drive interfaces
PCI Express 4.0, PCI Express 5.0, SATA III
Wi-Fi
Yes
