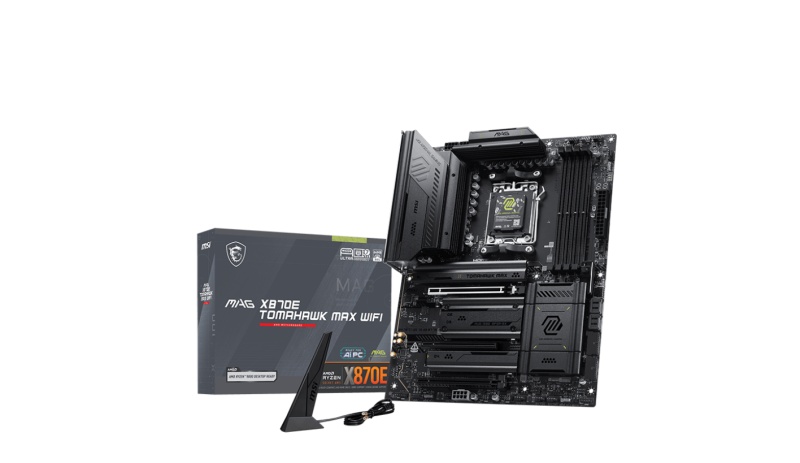

MSI MAG X870E TOMAHAWK MAX WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256
2.210,99 RON
Costurile de livrare nu sunt incluse
Descriere
MSI MAG X870E TOMAHAWK MAX WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 5 Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Detalii
SKU
7E59-018R
Categorii
Brand
ACPI version
6.5
System Management BIOS (SMBIOS) version
3.7
BIOS type
UEFI AMI
BIOS memory size
512 Mbit
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
4
1st M.2 largest key size
22110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
4.0
PCI Express x16 (Gen 3.x) slots
1
Motherboard form factor
ATX
PC health monitoring
CPU, Fan, Temperature, Voltage
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Front panel connector
Yes
USB 2.0 connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
4
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Supported memory clock speeds
4800,5600,6400,8400 MHz
Supported memory clock speed (max)
8400 MHz
ECC сompatibility
Non-ECC
LAN controller
Realtek RTL8126
Ethernet interface type
5 Gigabit Ethernet
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
8
Number of SATA II connectors
0
Number of SATA connectors
0
PCI Express x16 (Gen 5.x) slots
1
Total number of SATA connectors
4
4th M.2 largest key size
2280
4th M.2 highest PCI Express generation
4.0
S/PDIF out port
Yes
USB4 Gen 2x2 ports quantity
2
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
DisplayPort version
1.4
DisplayPorts quantity
2
VGA (D-Sub) ports quantity
0
Product colour
Black
Width
243.8 mm
Depth
304.8 mm
BLUETOOTH
Yes
Component for
PC
RAID support
Yes
RAID levels
0, 1, 10
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
AMD
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
Maximum internal memory
256 GB
On-board graphics card
No
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Motherboard chipset
AMD X870E
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Supported storage drive interfaces
M.2, SATA III
Wi-Fi
Yes
