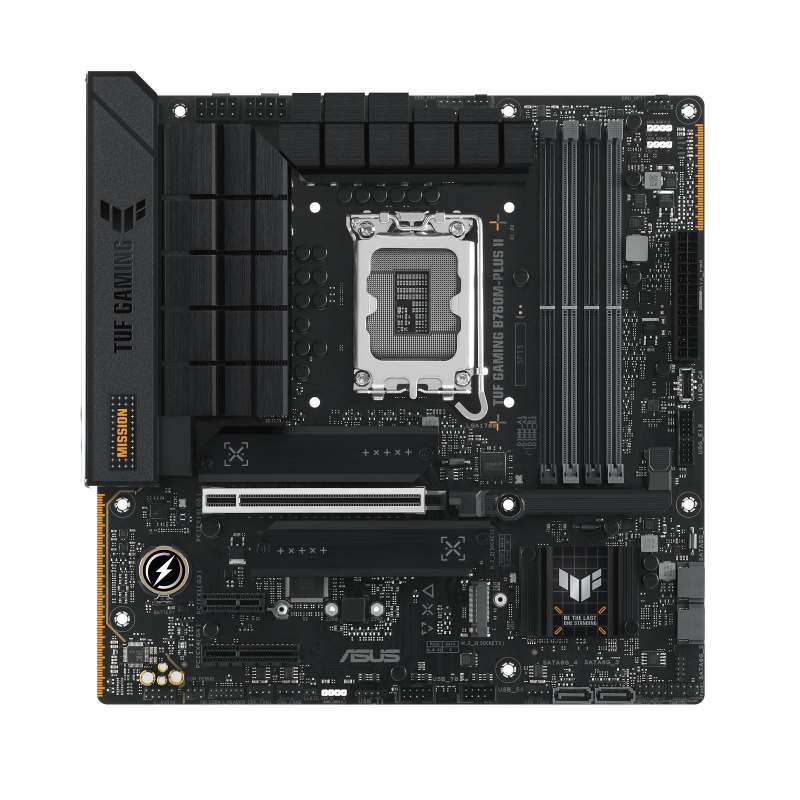

ASUS TUF GAMING B760M-PLUS II. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum
1.008,99 RON
Costurile de livrare nu sunt incluse
Descriere
ASUS TUF GAMING B760M-PLUS II. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Detalii
SKU
90MB1HD0-M0EAY0
Categorii
Brand
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
Number of M.2 (M) slots
3
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
12V power connector
Yes
USB 2.0 connectors
3
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of chassis fan connectors
3
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Supported memory clock speeds
7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Supported memory clock speed (max)
7800 MHz
ECC сompatibility
Non-ECC
Ethernet interface type
2.5 Gigabit Ethernet
Screws included
Yes
DVI-D ports quantity
0
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
7
PCI Express x1 (Gen 3.x) slots
1
Thunderbolt headers
1
PCI Express x16 (Gen 5.x) slots
1
S/PDIF out port
Yes
PCI Express x4 (Gen 4.x) slots
1
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
DisplayPorts quantity
1
Headphone outputs
1
VGA (D-Sub) ports quantity
0
USB 3.2 Gen 2x2 Type-C ports quantity
1
Windows operating systems supported
Windows 10 x64, Windows 11
Cables included
SATA
Width
244 mm
Height
50 mm
Package width
280 mm
Package height
71 mm
Weight
982 g
Depth
244 mm
Package weight
1.65 kg
Package depth
265 mm
Component for
PC
RAID support
Yes
RAID levels
0, 1, 5, 10
Memory channels
Dual-channel
Ethernet LAN
Yes
Processor manufacturer
Intel
Maximum internal memory
192 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Motherboard chipset
Intel B760
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Supported storage drive interfaces
M.2, SATA III
Wi-Fi
No
